If you have mastered simple woodworking joints and are eager to elevate your skills, exploring advanced joints is the next step.
These advanced woodworking techniques provide enhanced strength, greater precision and improved aesthetics, allowing you to create more sophisticated and durable projects.
Mortise and tenon joint

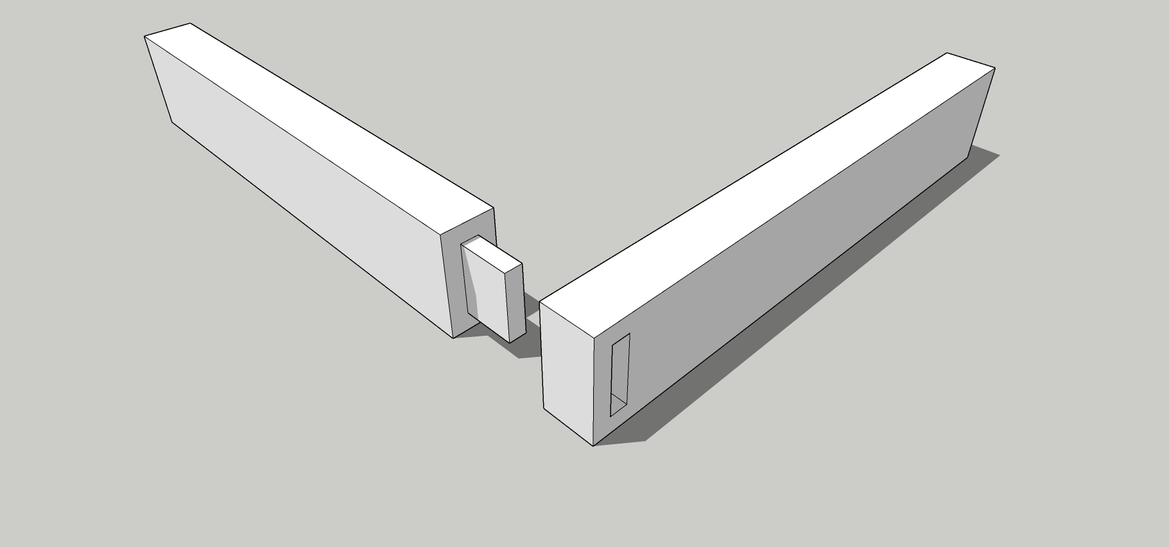

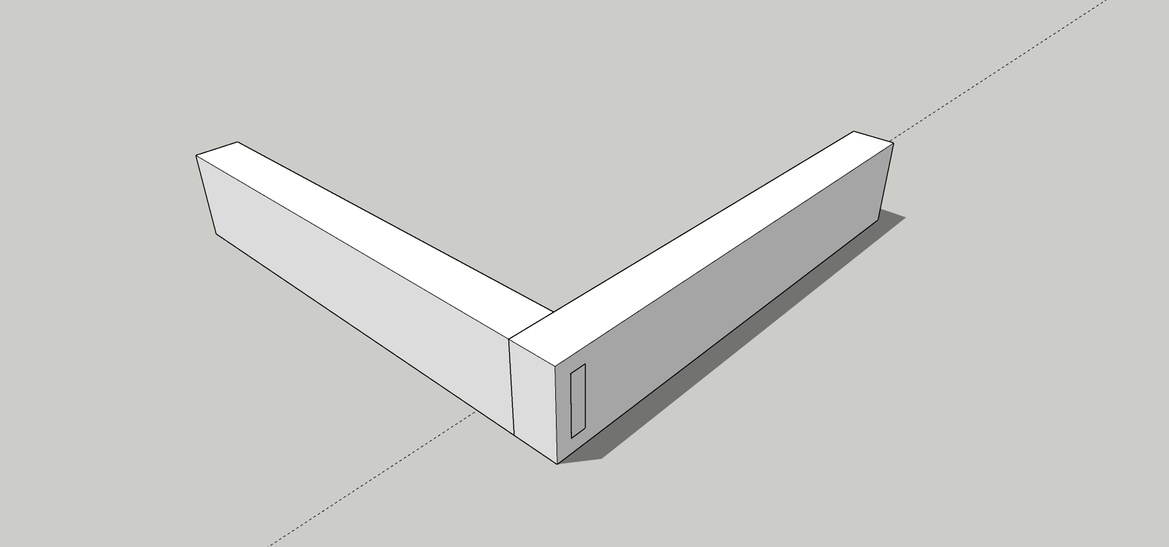

The mortise and tenon joint is a classic and robust woodworking joint. A tenon is a projecting section on the end of one piece of wood. It fits into a corresponding mortise, which is a cavity cut into another piece of wood.
Mortise and tenon joint construction
To create a mortise and tenon joint, cut a tenon on the end of one piece of wood to ensure it fits snugly into the mortise cut into the end of another piece. The tenon should be slightly smaller than the mortise to allow for a tight fit.
Use a chisel and a mallet to clean out the mortise and ensure a precise fit. Tools and materials required include a saw and wood glue. Clamps are also needed to hold the joint together as the glue dries.
Mortise and tenon joint applications
Mortise and tenon joints are commonly used in furniture making, cabinetry, and structural applications where strength and durability are essential. They are ideal for creating frames, doors and legs for tables and chairs.
Strengths and weaknesses of using mortise and tenon joints
The mortise and tenon joint is renowned for its exceptional strength and durability. It provides a strong and long-lasting connection between two pieces of wood, making it ideal for high-stress applications. It adds a classic touch to woodworking projects. However, it requires precision in cutting and fitting, making it more complex than basic joints.
Box joint

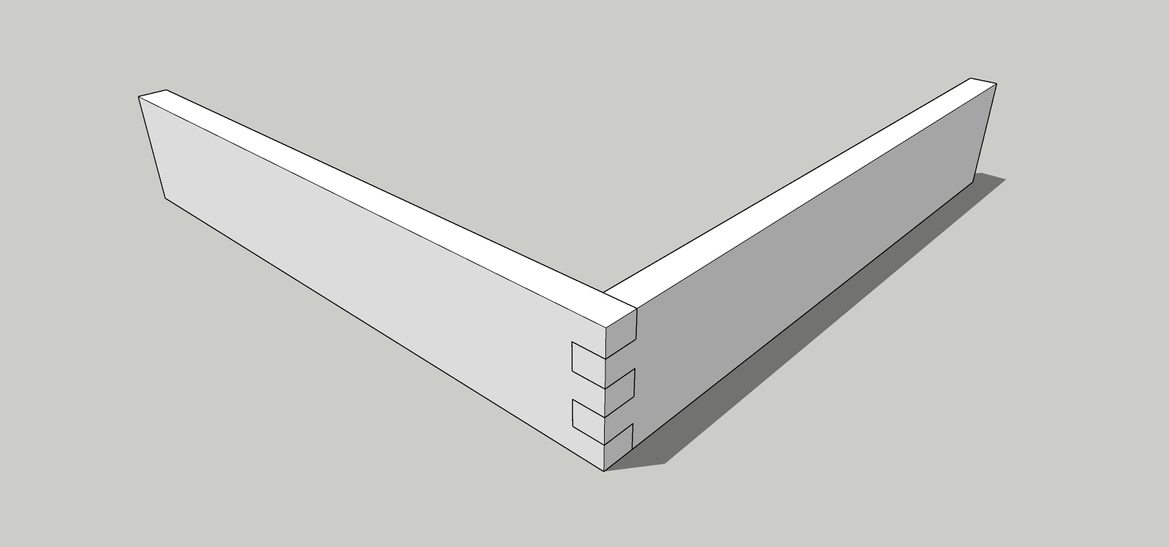

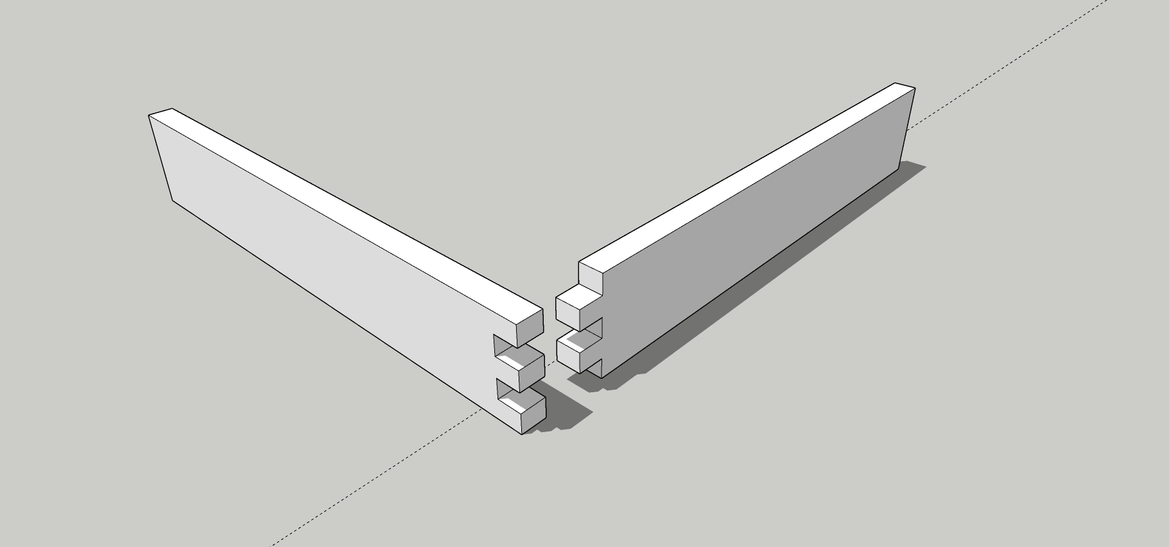

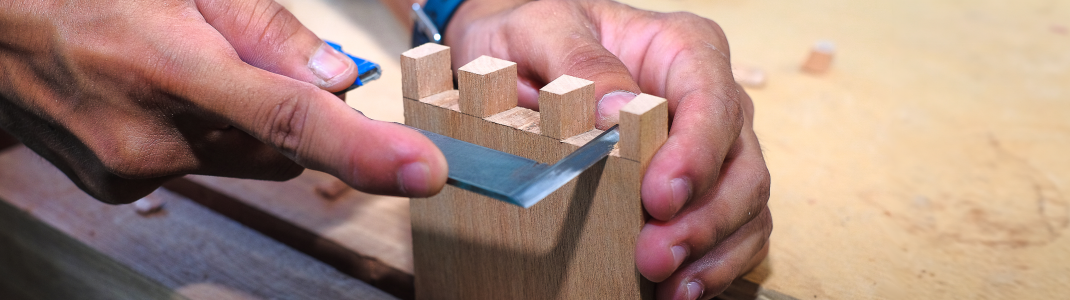

The box joint, also known as a finger joint, is used to join the corners of a box or drawer by cutting interlocking "fingers" into the ends of two pieces of wood.
Box joint construction
To create a box joint, cut a series of equally spaced fingers along the ends of both pieces of wood. These fingers interlock when the two pieces are joined.
Use a dado blade on a table saw or a box joint jig to achieve precise cuts. Apply wood glue to the fingers, fit the pieces together, and use clamps to hold them in place until the glue dries.
Box joint applications
Box joints are ideal for constructing drawers, boxes and cases where both strength and a clean, decorative look are desired. They are particularly useful for projects where the joints are visible and add to the overall aesthetic appeal.
Strengths and weaknesses of using box joints
Box joints provide a strong and attractive corner joint that can handle significant stress. They are frequently used in high-quality furniture and cabinetry. Achieving precise cuts requires careful setup of the dado blade or box joint jig, but the result is a robust and visually pleasing joint.

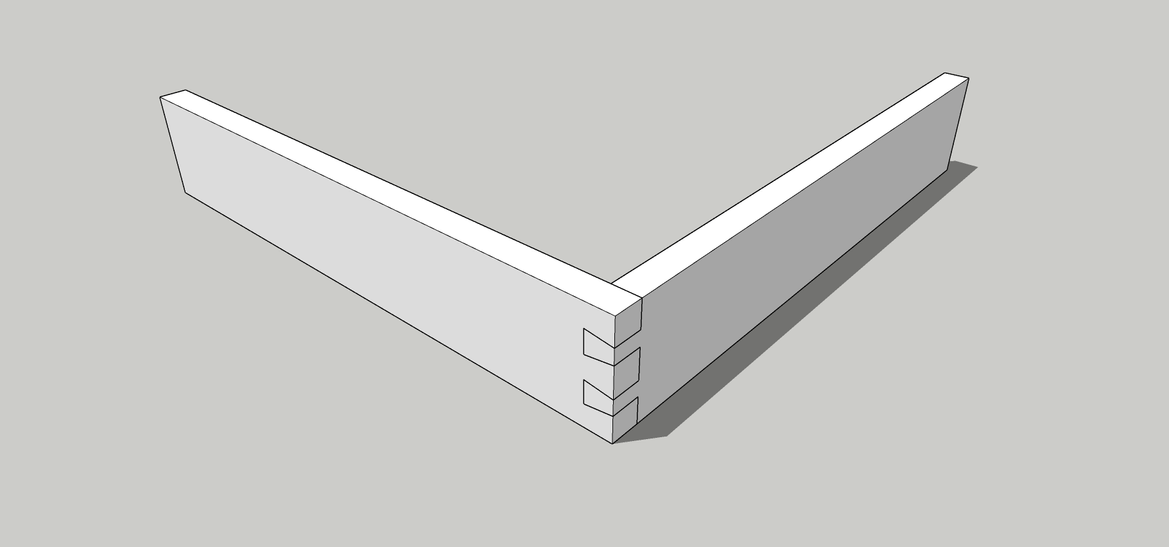

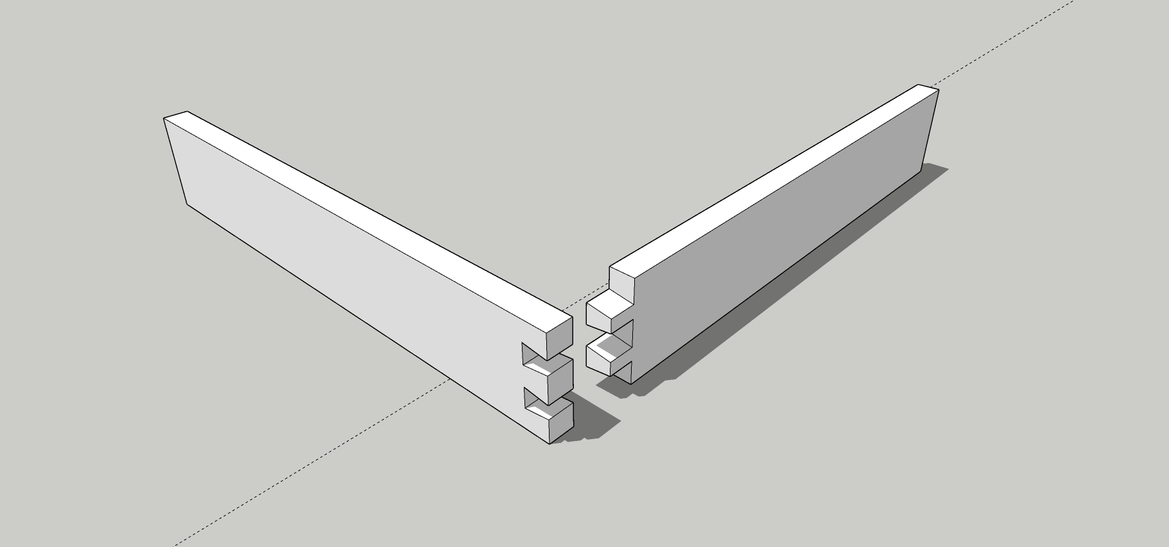

Dovetail joint
The dovetail joint is well-known for its strength and aesthetic appeal. It features interlocking "tails" and "pins" cut into the ends of two pieces of wood, creating a joint that resists pulling apart.
Dovetail joint construction
To create a dovetail joint, cut a series of angled tails on one piece of wood and matching pins on the other piece.
Use a dovetail saw, chisel, and mallet to make precise cuts. The pieces are then glued together with wood glue. Clamps are used to secure the joint while the glue sets.
Dovetail joint applications
Dovetail joints are frequently used in high-quality drawer construction, cabinet making and fine furniture. They are ideal for applications where both strength and a high level of craftsmanship are important.
Strengths and weaknesses of using dovetail joints
The dovetail joint is extremely strong and visually striking. Its interlocking design prevents the joint from pulling apart, making it ideal for drawer boxes and other applications that endure heavy use. However, dovetail joints require precise cutting and fitting, making them more complex to execute than simpler joints.
Dado joint

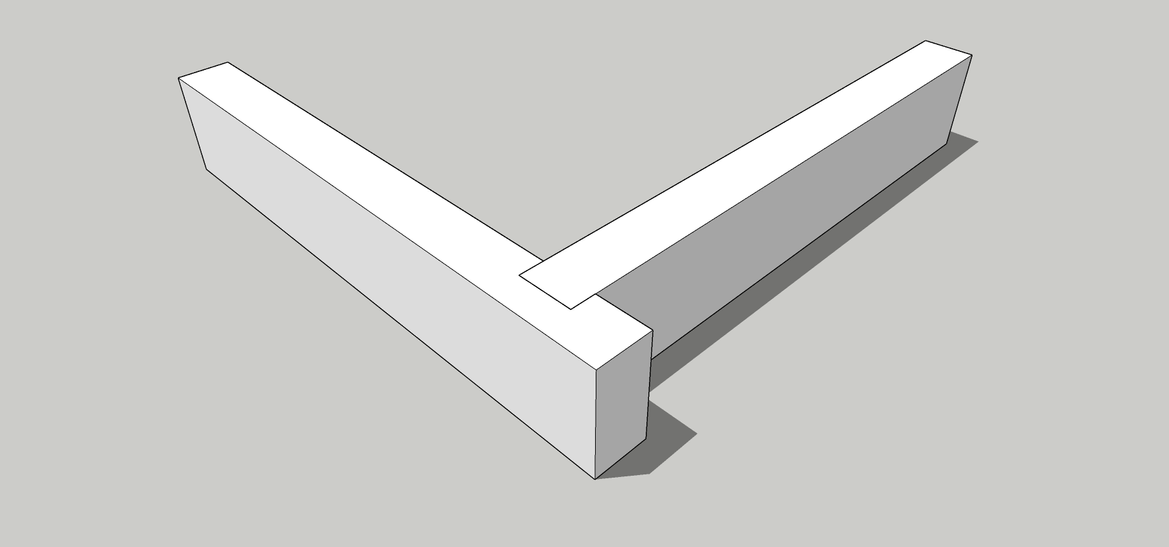

The dado joint involves cutting a groove (dado) into one piece of wood, into which another piece of wood fits.
Dado joint construction
To create a dado joint, cut a groove across the width of one piece of wood using a table saw or router. The second piece of wood, which will fit into the dado, should be cut to match the width of the groove.
Apply wood glue to the dado and the edge of the second piece, then fit them together and clamp until the glue dries.
Dado joint applications
Dado joints are particularly effective in cabinetry, bookcases and shelving units where precise alignment and support for panels or shelves are needed. They are crucial for ensuring stable, sturdy construction in larger assemblies.
Strengths and weaknesses of using dado joints
Dado joints provide a strong and stable connection for panels or shelves within a frame. They offer precise alignment and support, making them ideal for projects requiring a high degree of accuracy. Accurate cutting of the dado is essential to ensure a perfect fit.
Rabbet joint

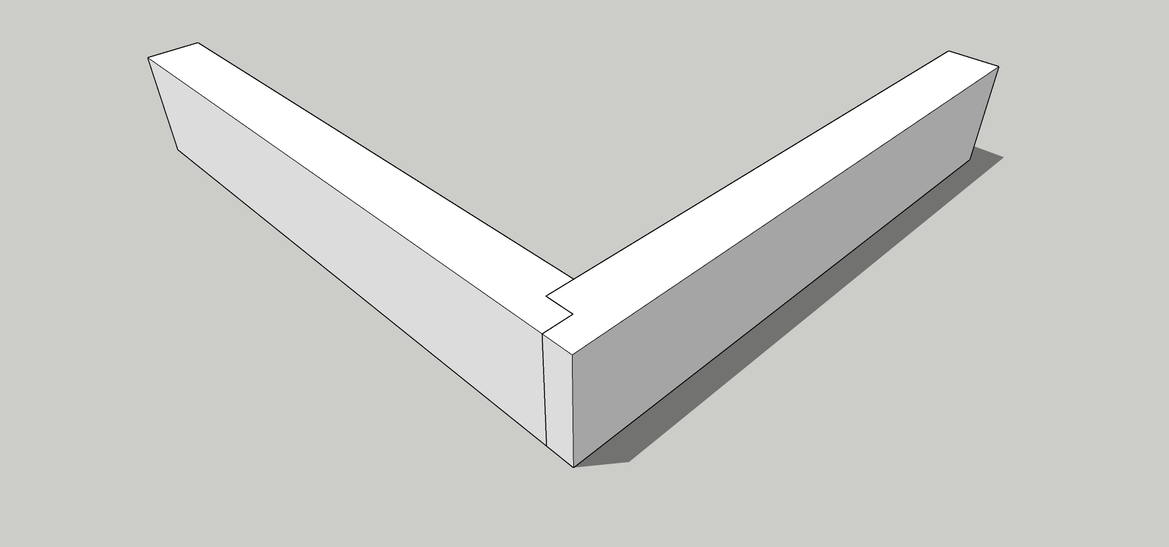

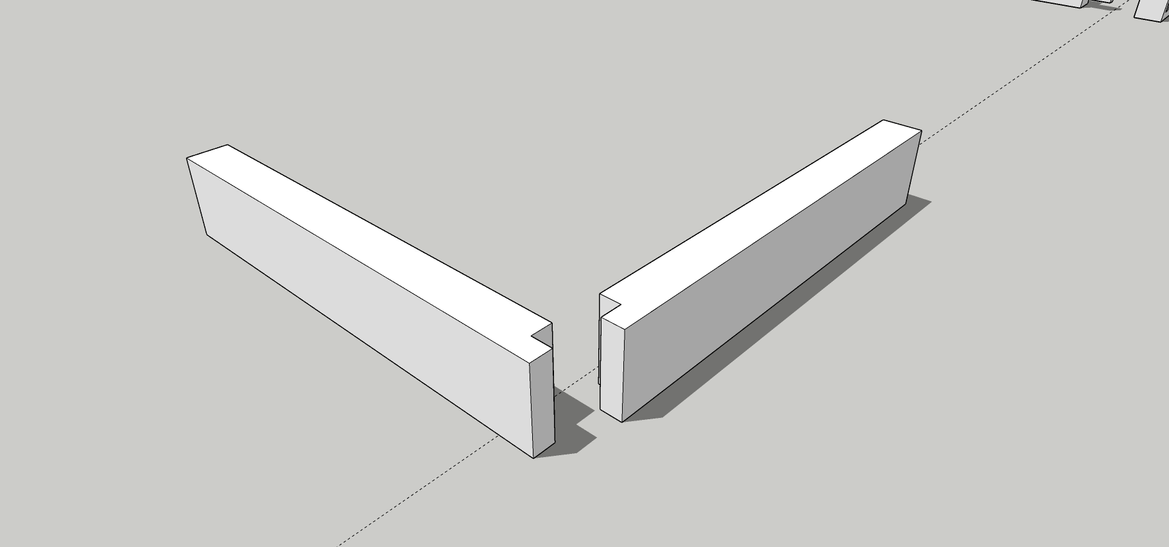

The rabbet joint involves cutting a notch (rabbet) along the edge of one piece of wood, allowing it to fit into a corresponding notch on another piece.
Rabbet joint construction
To create a rabbet joint, cut a notch along the edge of one piece of wood using a table saw or router. The mating piece should have a corresponding rabbet to fit the notch.
Apply wood glue to the rabbeted edges, join the pieces, and clamp them together until the glue sets.
Rabbet joint applications
Rabbet joints are ideal for constructing frames, cabinetry and boxes where the edge of one piece fits into the edge of another. They provide a strong, flush joint when requiring a clean, seamless assembly.
Strengths and weaknesses of using rabbet joints
Rabbet joints provide a strong, flush connection with a larger surface area for glue. They are particularly useful for projects such as cabinet doors, picture frames and drawer construction - projects where a clean, finished appearance and structural strength are desired. Accurate cutting is crucial to ensure proper fit and alignment.
