How to install an Illuma ambient solar powered skylight

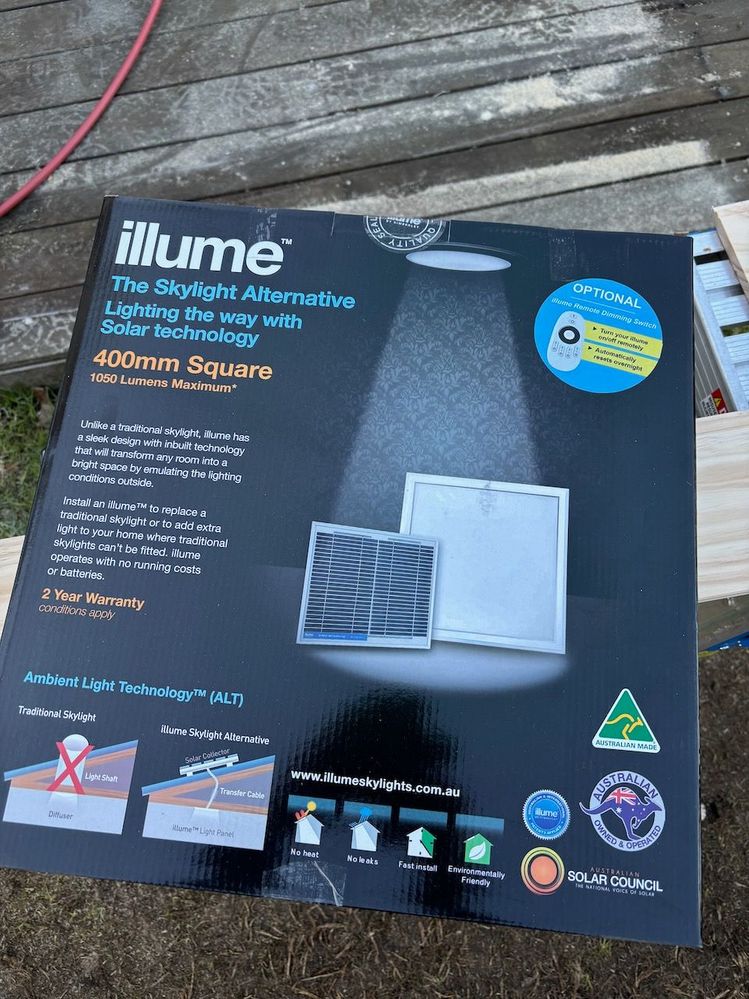

This kitchen dining area suffered from poor natural light as all the windows face south and being the lower level of a 2-storey 1950's coastal home. Traditional solar-tube skylight wasn't going to work, but I heard from a friend who had installed solar-powered sky light from illuma that Bunnings range. They work on an ambient light sensor in the solar panel that increases the brightness automatically based upon the ambient outside light. Brighter the day, the brighter the LED skylight.



Here's how it was installed.




Steps

Step 1

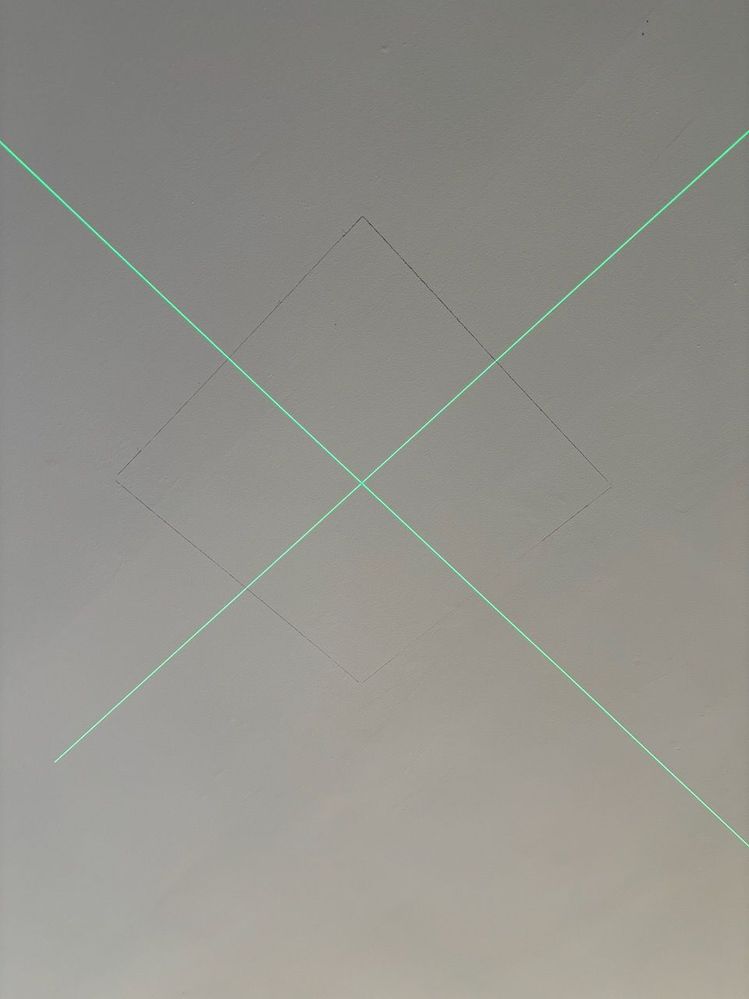

The first step was to find the centre of the room which I marked with a 360deg laser. But a tape measure works just as well, it simply takes longer.



The important part is to ensure that the light panel was going to fit square/parallel to the room.




Step 2

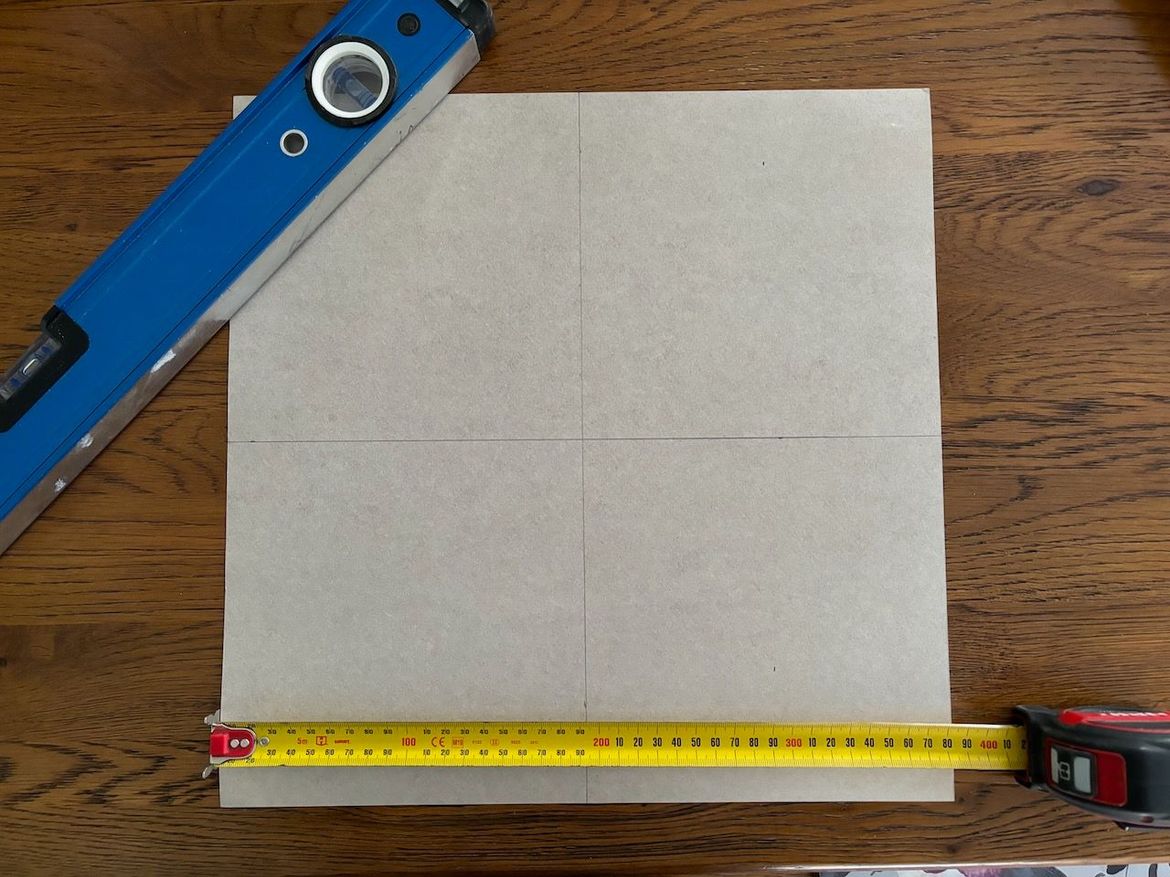

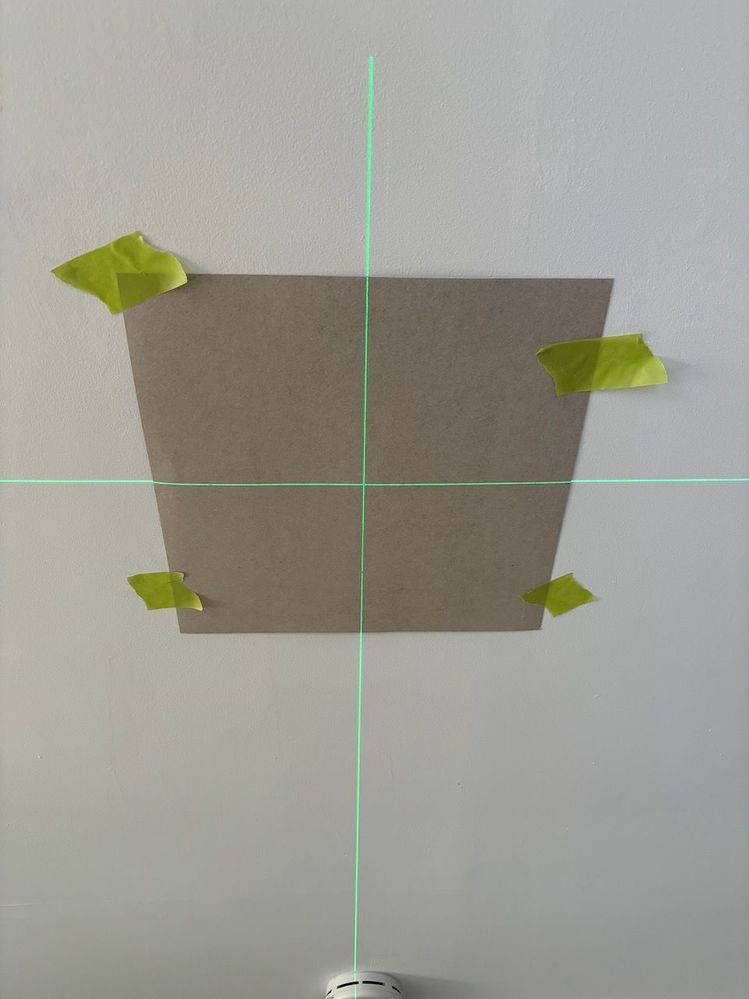

I then marked the centre of the cutout template and taped it to the ceiling in alignment with my laser lines. Then marked the cutout.


Step 3

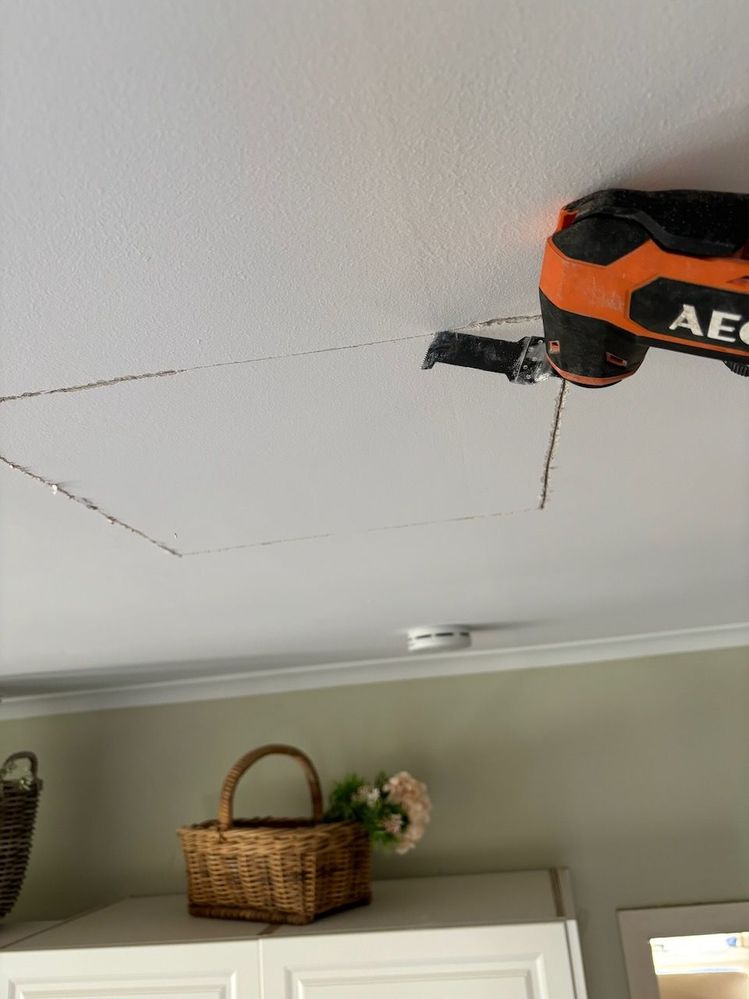

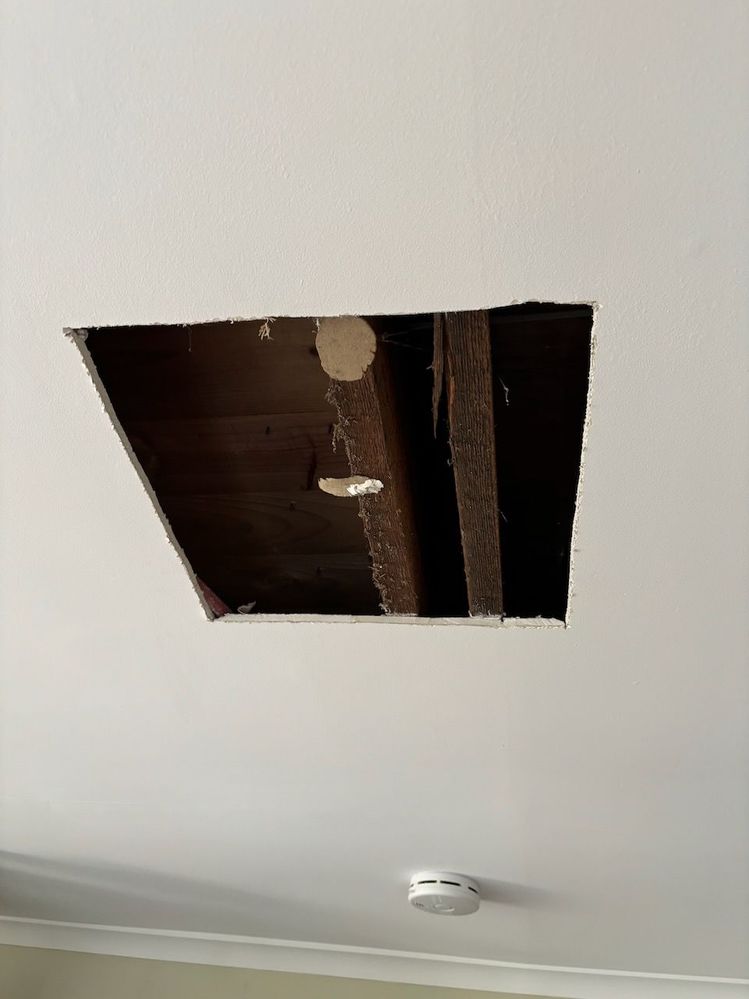

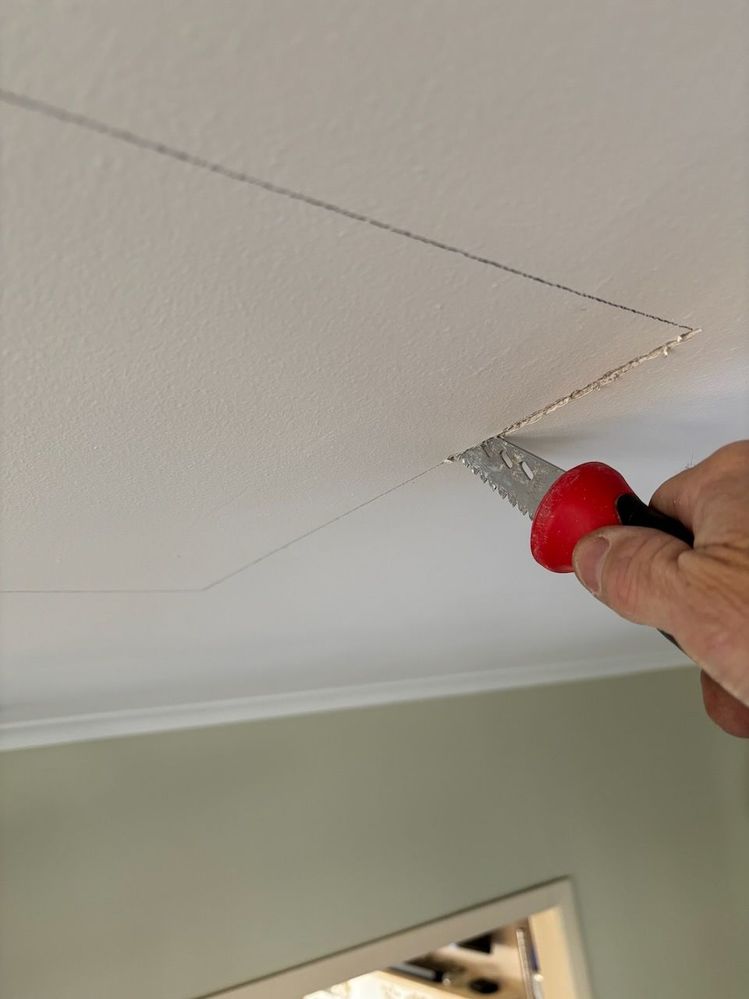

I used a plasterboard jab saw to make shallow cuts, and typical of my luck found not one, but two joists. So I used a multitool to finish the cut out.



With the cutout removed, I needed to then check out both joists with a hammer and chisel to allow for clearance of the panel and its fixture system




Step 4

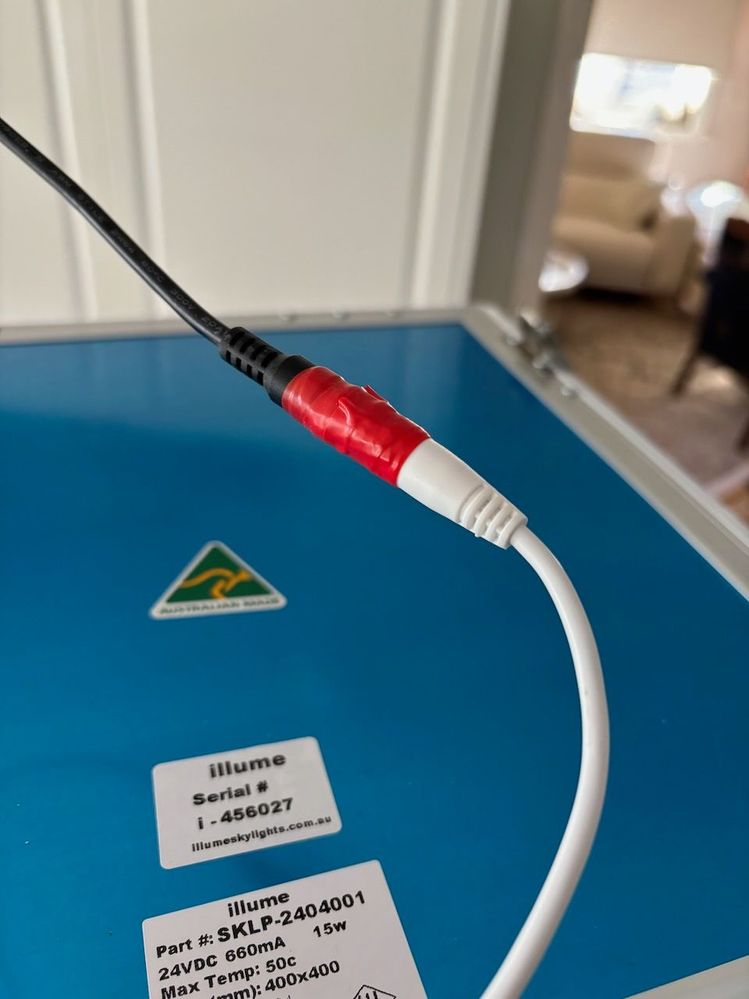

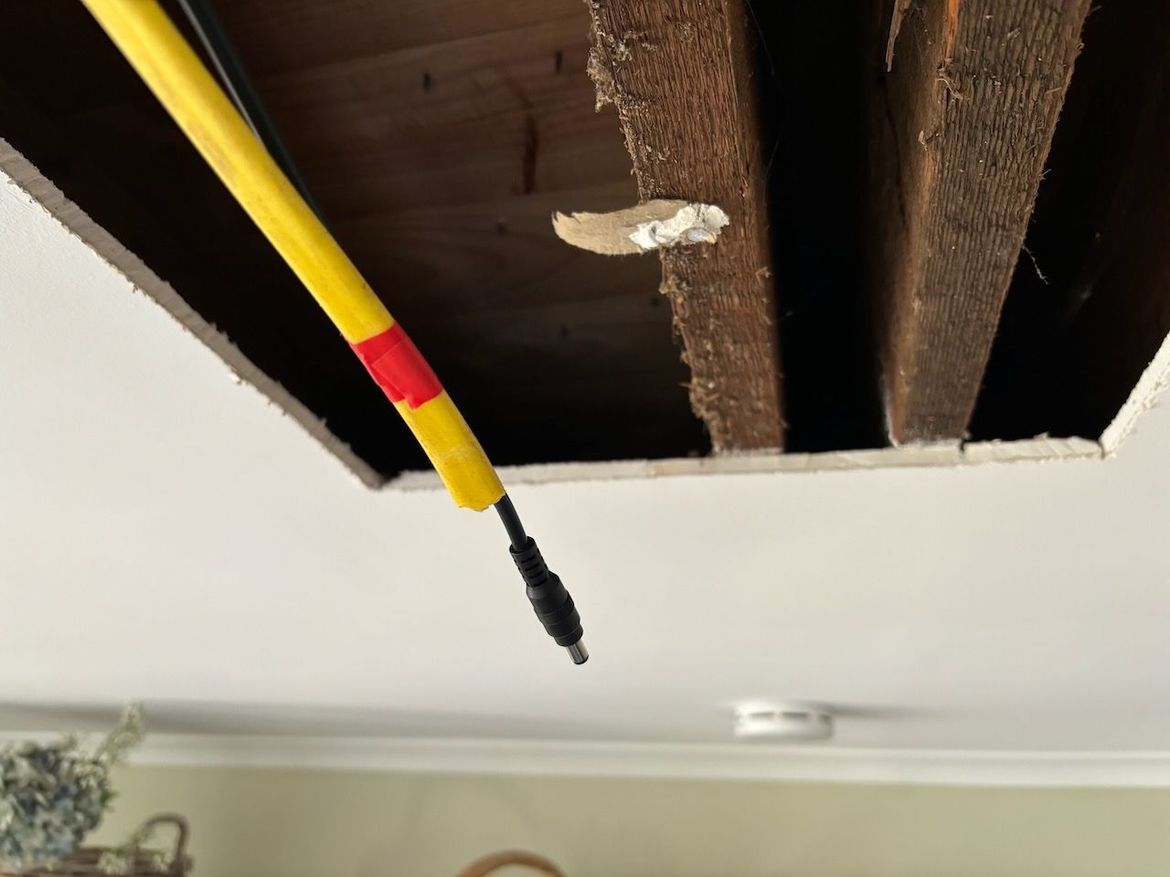

I used a length of yellow tongue to run the power cable from the solar panel, connected the control module and then taped the connection and fitted the skylight panel and gave it a quick test that it works before mounting the solar panel.

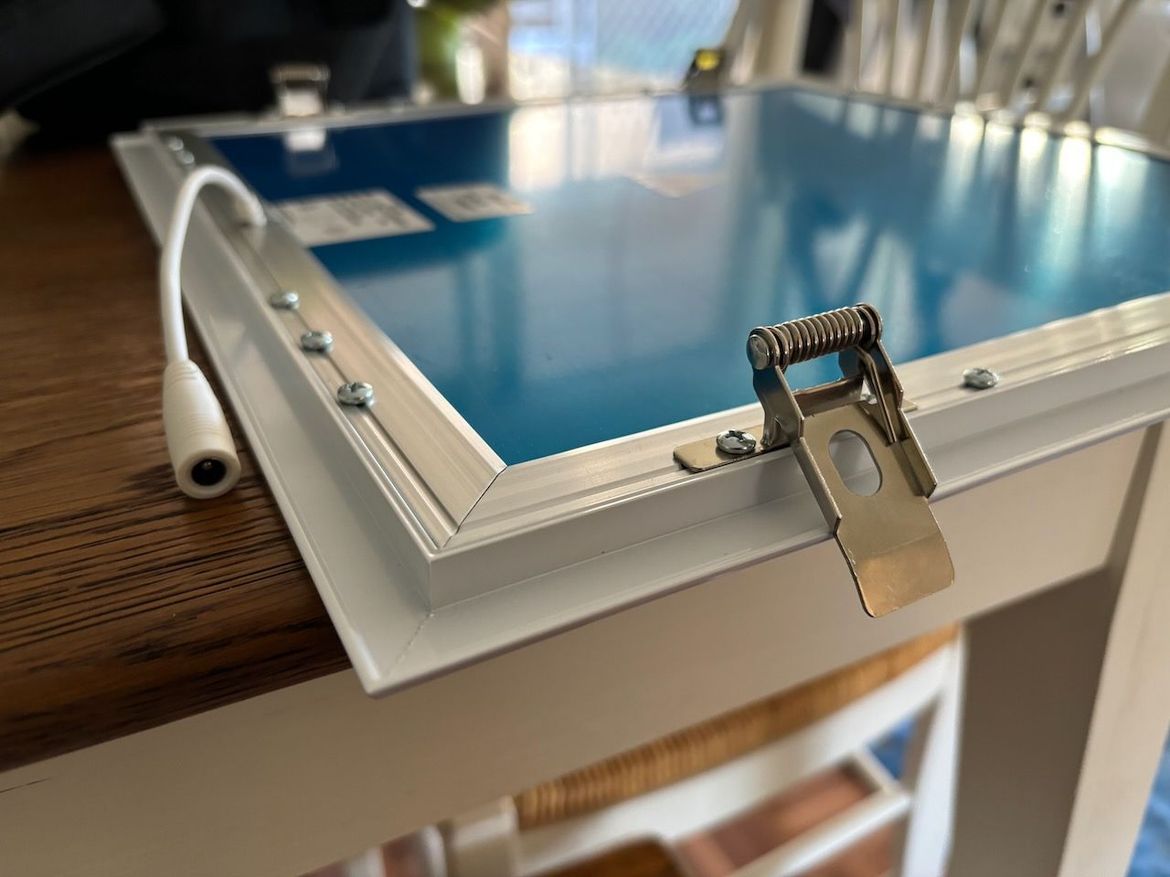

The spring clips on the panel are very strong, and more so than those found with LED downlight, so watch your fingers!!!




Step 5

I only had a very narrow space to feed the cable through the ceiling cavity and out through a colourbond roof. It meant having to cut the cable as the power plug was too large.

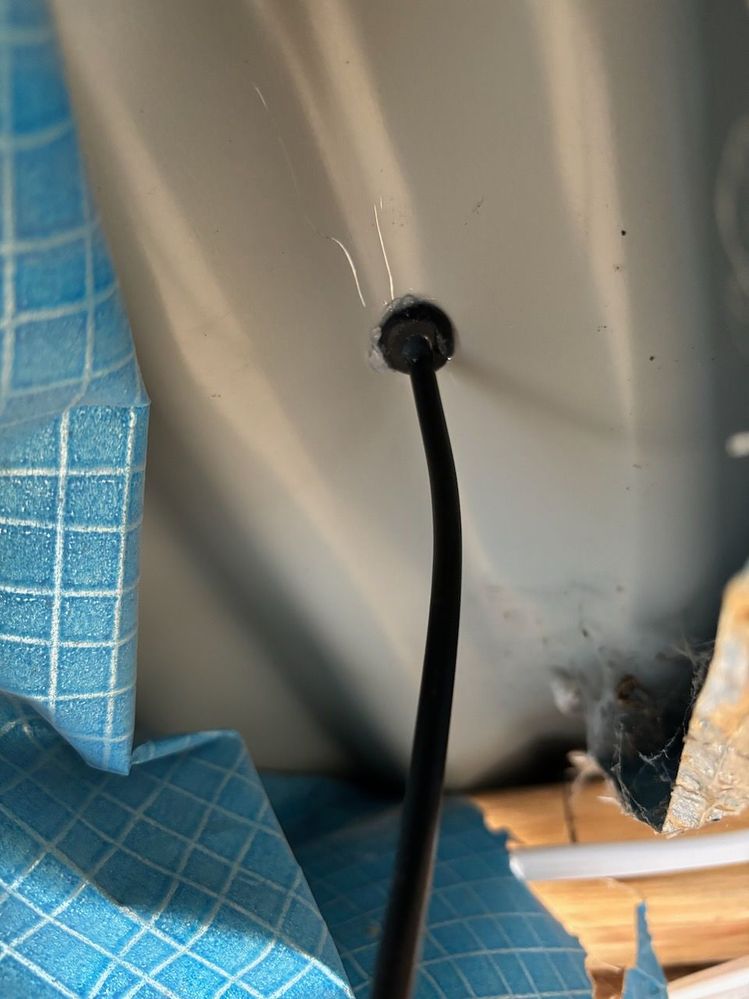

The cable was fed through a rubber grommet to protect it from the sharp edges, and then siliconed for waterproofing








Step 6

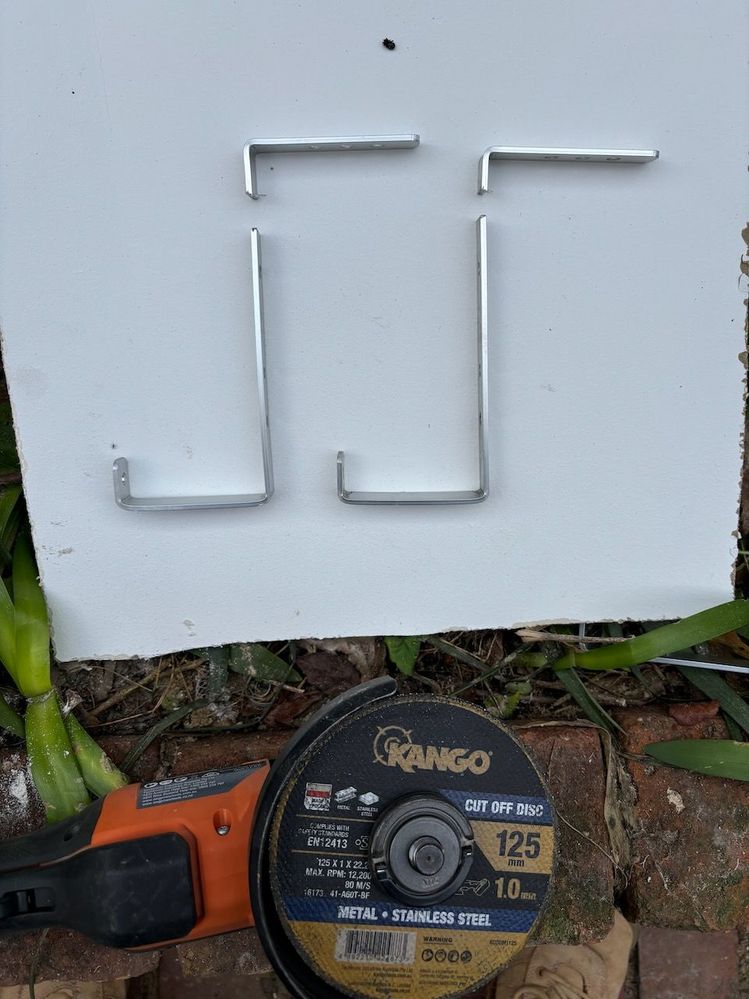

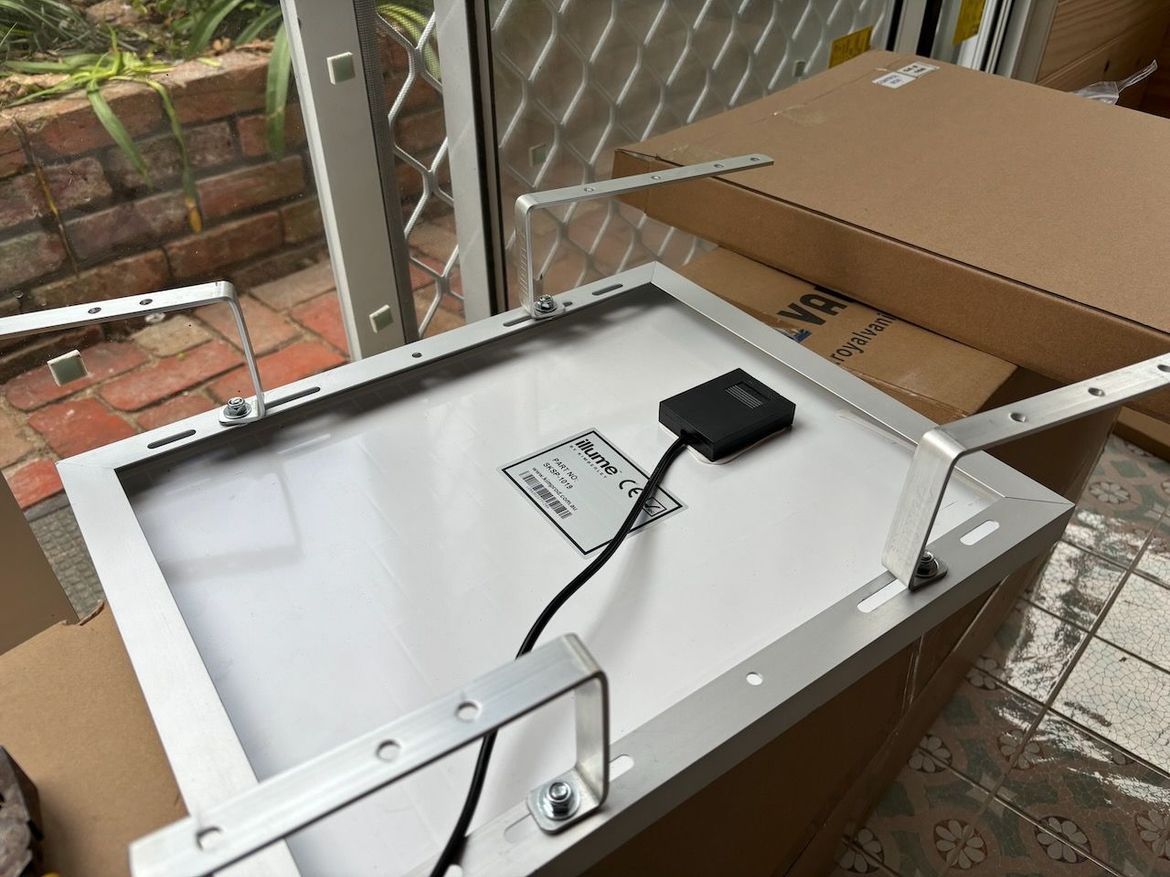

The solar panel mounting brackets require you to cut them to suit the mounting type. I then fitted them to the elongated slots so I could adjust them to fit to the high-side of the corrugated roof profile.




Step 7

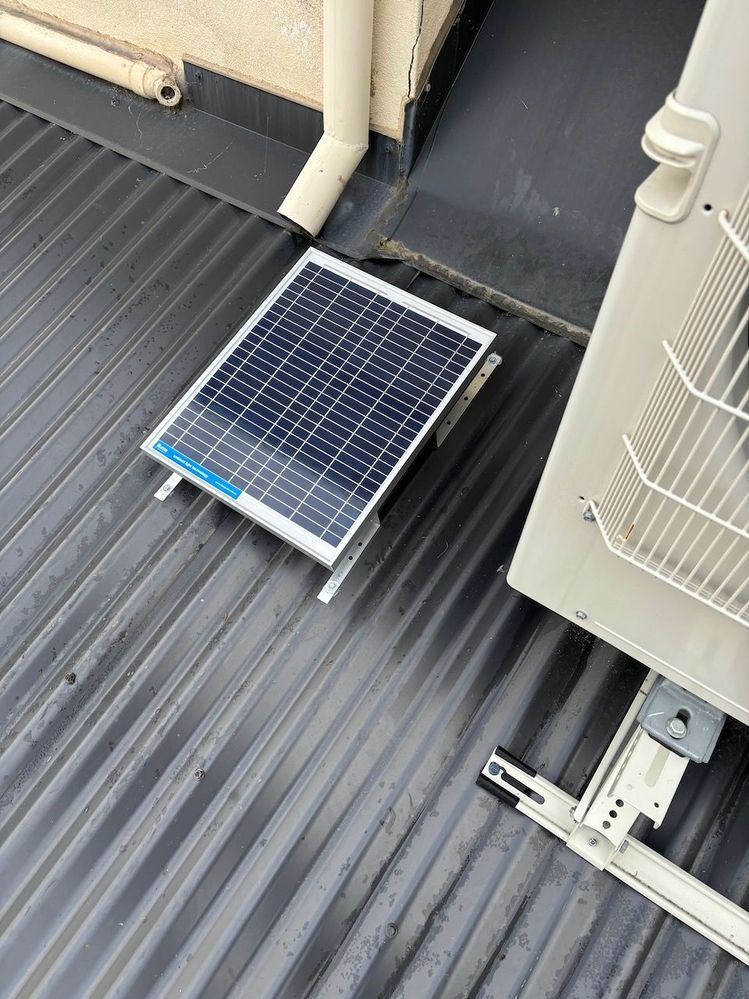

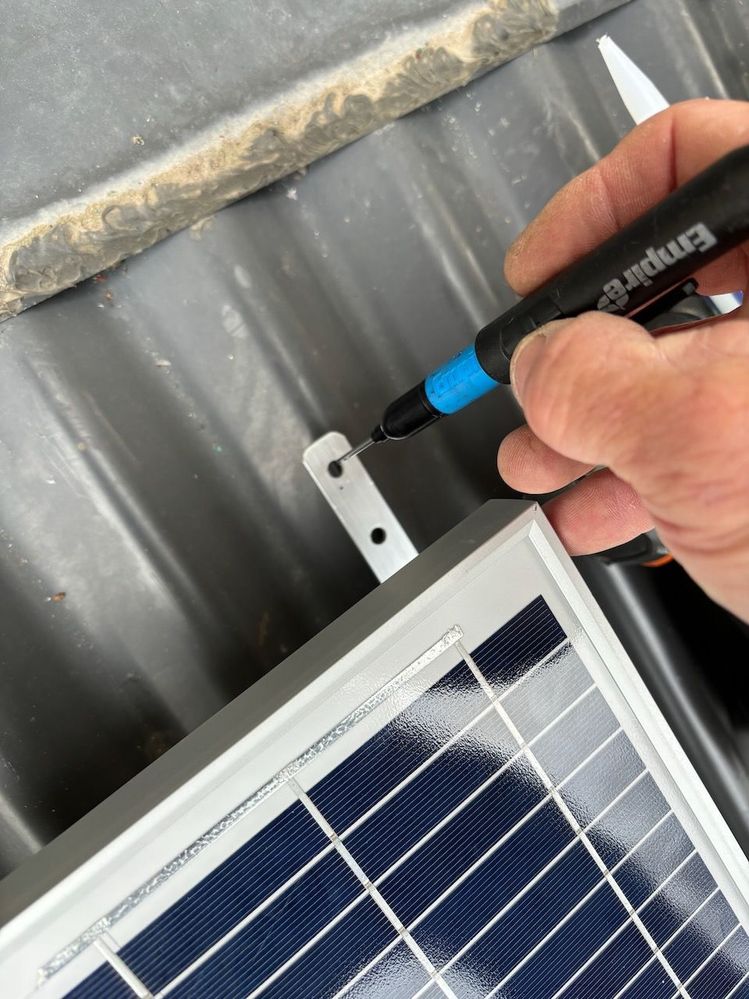

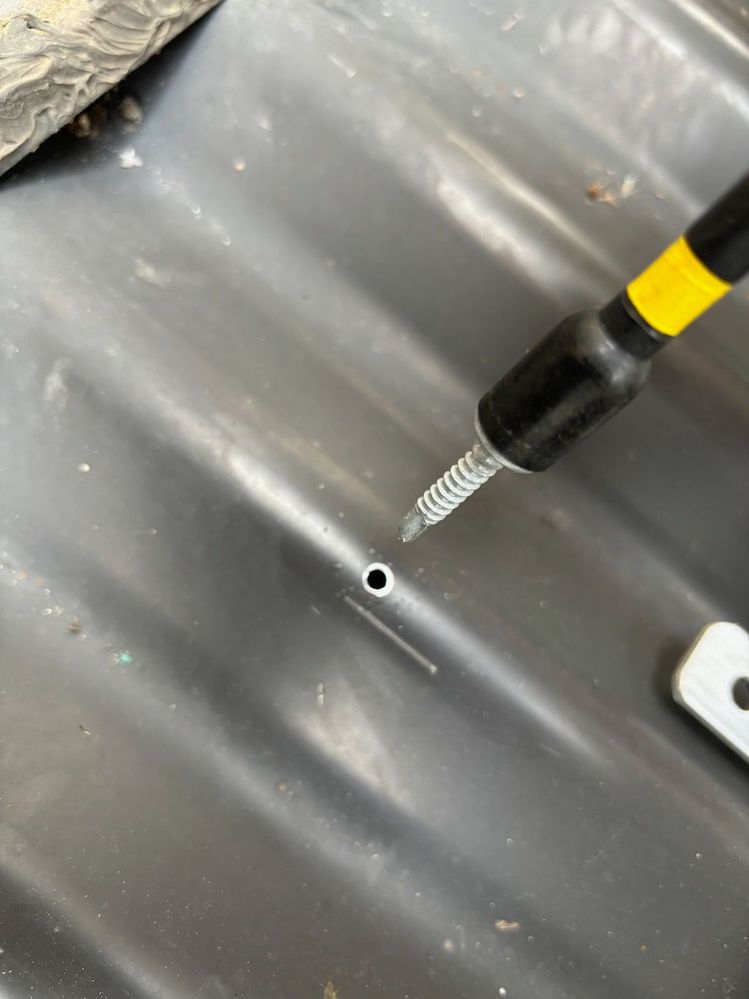

Once on the roof I marked out the mounting holes and applied a generous amount of roof and gutter silicone before fixing the panel with self-drilling hex screws. Then I applied more silicone.




Step 8

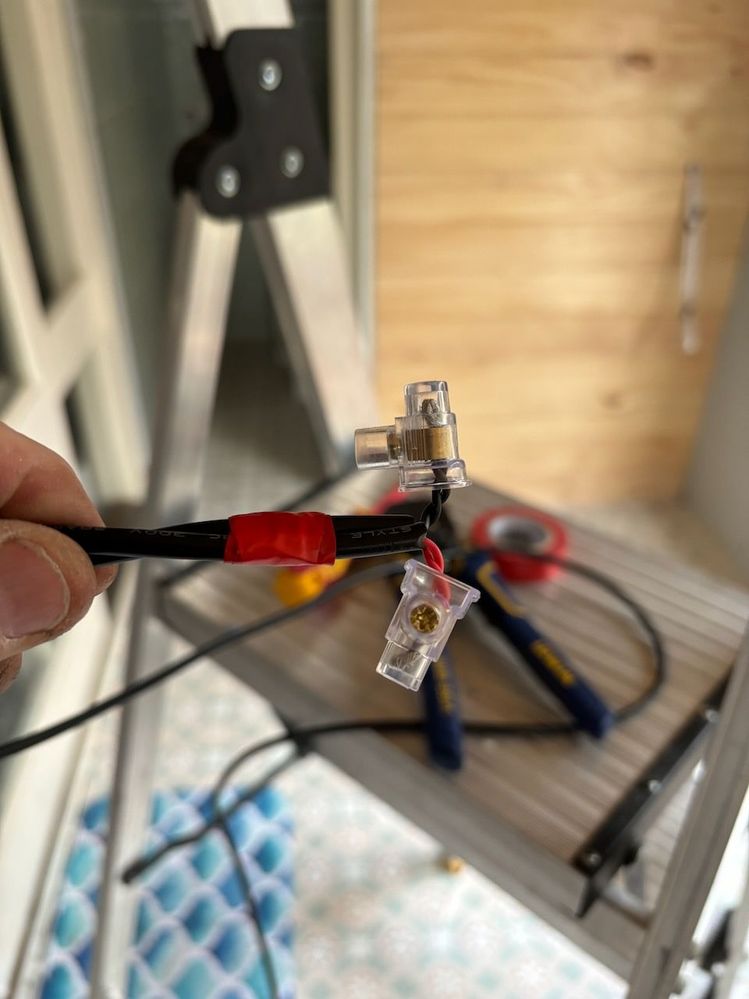

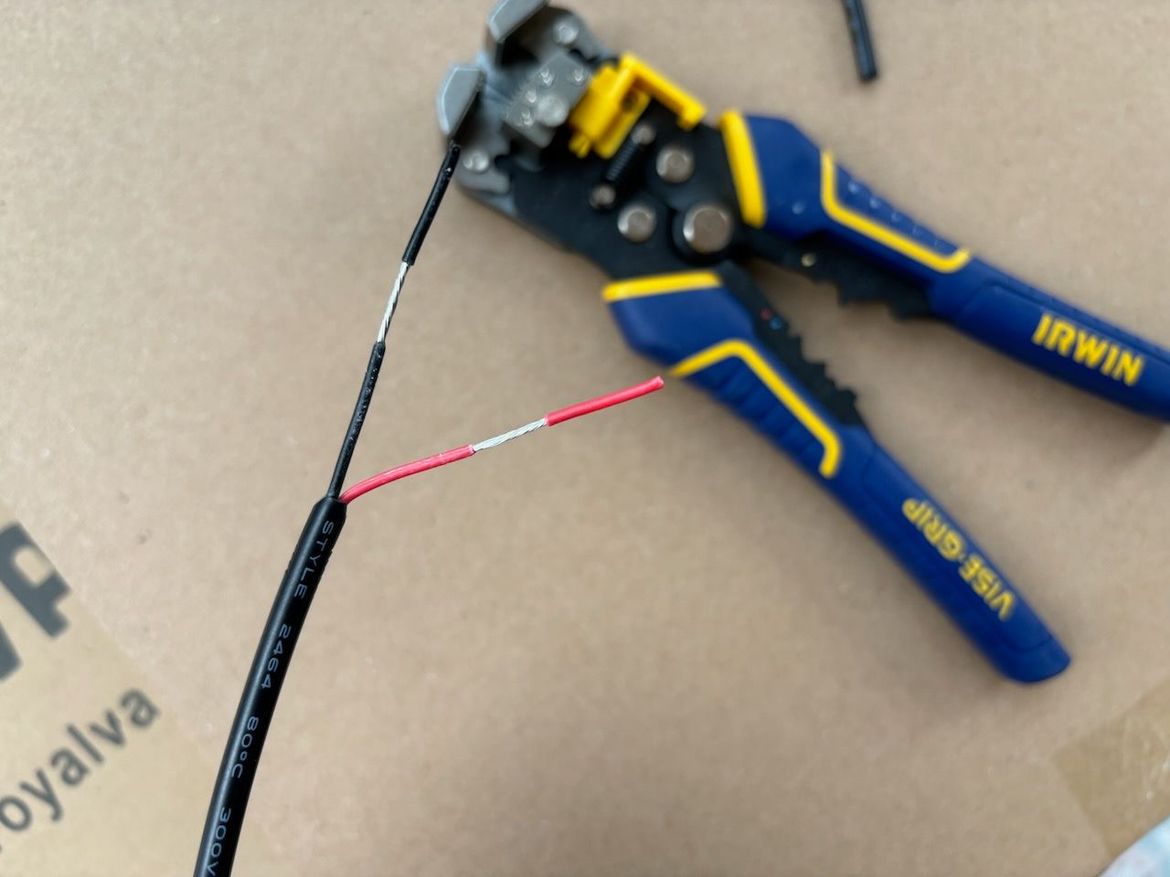

The last step was to splice and join the cut power cable.




Step 9

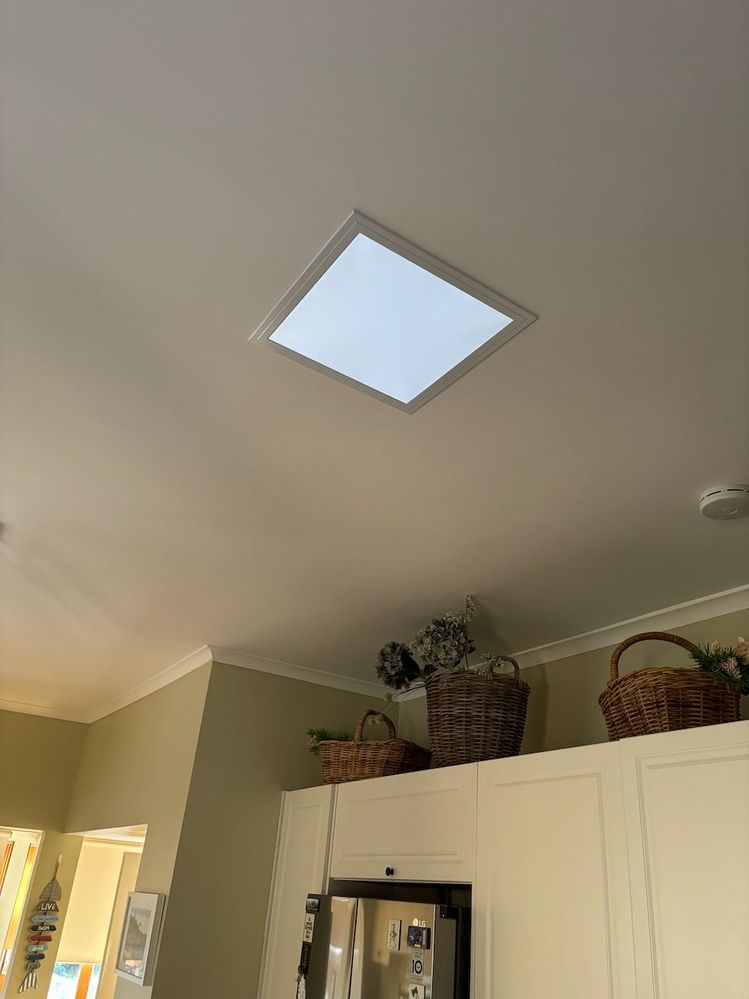

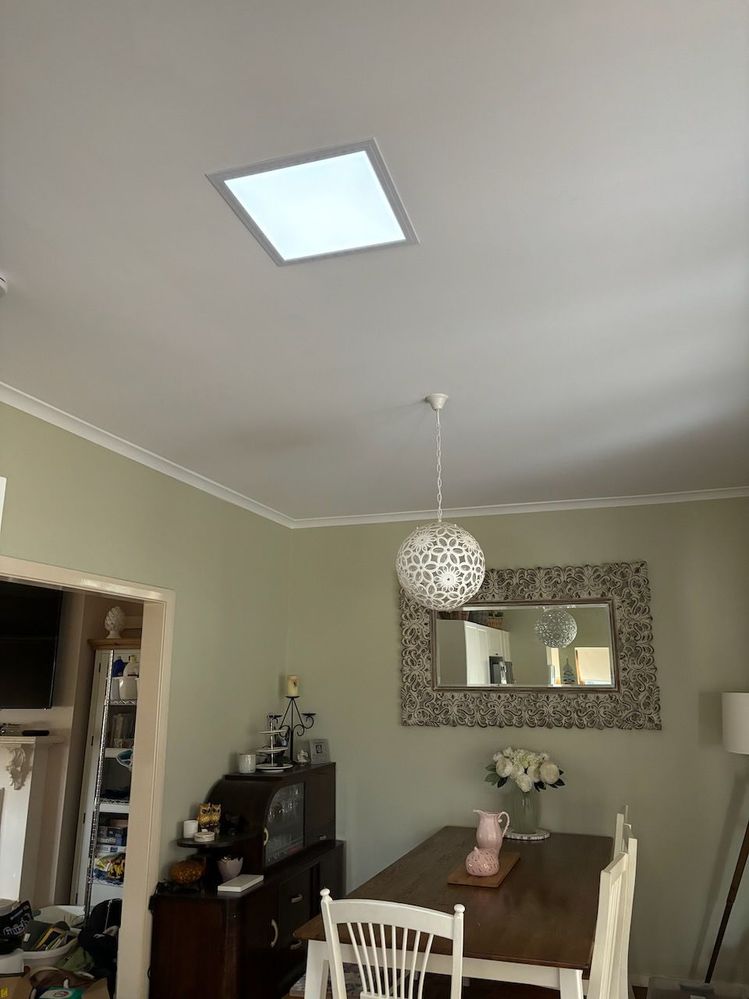

Job done 👍




MitchellMc
Bunnings Team Member
Bunnings Team Member

Re: How to Install an illuma Ambient Solar Powered Skylight

What a fantastic solution @Nailbag. I have a dimly lit hallway in which one of these would work a treat.



Many thanks for sharing.



Mitchell



See something interesting? Give it the thumbs up!

Re: How to Install an illuma Ambient Solar Powered Skylight

Thanks @MitchellMc it's a very cost effective way to light dimly lit natural light areas. Not to mention a stack cheaper than real skylight. I have 2 solar tubes in my family room and though very effective they cost $950 each installed. If only I knew about this product 🙄.



They now want me to install the much larger 400mm x 1200mm in their holiday home.



regards, Nailbag
