How to build a Pfeiffer Adjusta Gate?

[denisl]

Hello there,

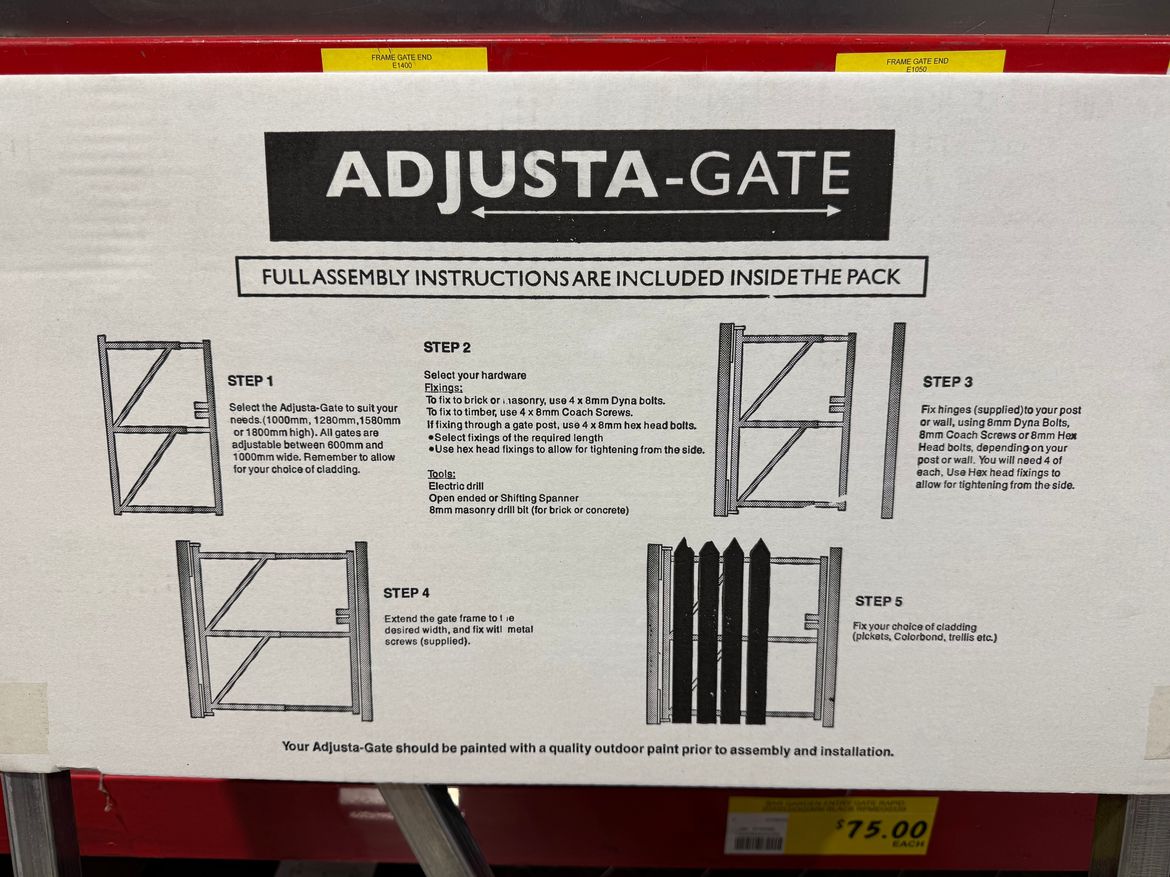

I'm looking to build a gate as part of a project, so I am looking at gate frames. Just in planning stages currently, but I was looking at https://www.bunnings.com.au/pfeiffer-1280mm-x-600-1000mm-adjusta-gate_p0120020. It is a full kit? Does it come with everything needed to install into posts? Or does it require other bits to install?

TYIA

Denis

[MitchellMc]

Hi @denisl,

That frame kit includes the hinge hardware. So, you'd just need fixings suitable for the posts you'll install, whether that be self-taping screws for steel or coach screws for timber posts. You'll then need additional fixings for your timber slats.

Please let me know if you have any questions.

Mitchell

[denisl]

Thanks very much @MitchellMc ,

picked up 4 x https://www.bunnings.com.au/zenith-m8-x-75mm-hot-dipped-galvanised-hex-head-coach-screw_p2449307 today for a 100x100 timber post.

Cheers,

Denis

[denisl]

Heya guys,

I am now at the installation stage and wanted to ask another question. So I have a couple of fence gates around my property that I was hoping to use for reference on how to do this one, but the hinge on them (more of this style: https://www.bunnings.com.au/pinnacle-16mm-galvanised-lh-double-butt-security-gate-hinge_p4150137) seems to be a bit different to the hinge that come with the Pfeiffer gate:

The question I have is do I install these hinges on the inside of my hardwood posts? Or the front? Ie:

I am using this latch: https://www.bunnings.com.au/gater-adjustable-gate-latch_p4150004?store=8161

I want to make sure that when the gate is closed, the latch actually lines up and works. I also want to make sure that when the gate is closed, the gate looks square to the posts.

I am using 75mm timber palings for cladding if that makes any difference.

I am open to purchasing a different set of hinges if that makes it better.

THANK YOU IN ADVANCE!!

Denis

[JacobZ]

Hi @denisl,

It really comes down to how much space you have between your posts. Typically, you would install this type of hinge on the inside of the post as opposed to the front as this will give the gate the cleanest look. As these are adjustable gates, you can adjust the width up and down so that they suit the opening perfectly.

I'd suggest installing the hinge on the front edge of the inside face of the post and to install the latch after the gate is in position. This will allow you to ensure the latch lines up perfectly without any guess work.

Let me know what you think and if you have any further questions, please don't hesitate to ask.

Jacob

[denisl]

Thanks @JacobZ ,

That's exactly the information I was looking for. I will give it a shot and report back.

Warm Regards,

Denis

[JacobZ]

Hi @denisl,

No worries, keep us posted if you run into any issues. More than happy to help further if required.

Jacob
