A unique paved fire pit area with built-in bench seating for a sloping block created with materials including rendered concrete, cobblestones and Pine sleepers.





The project



This is a fire pit I made from scratch on a sloping block.



Steps


Step 1

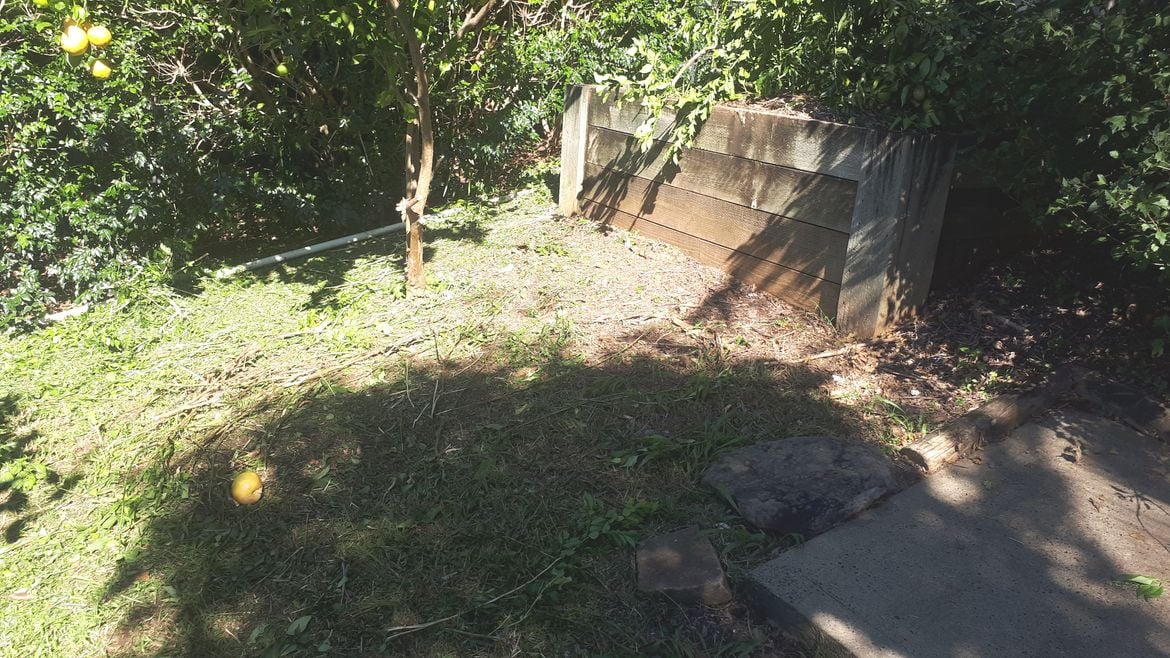

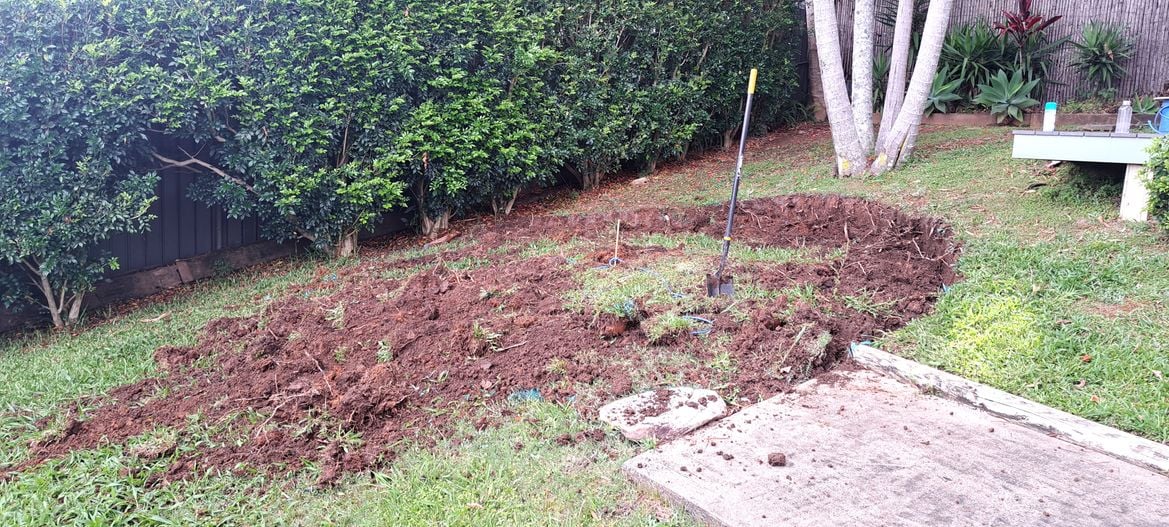

The backyard was incredibly overgrown, so a fair but of clearing was needed before I could start building.






Step 2

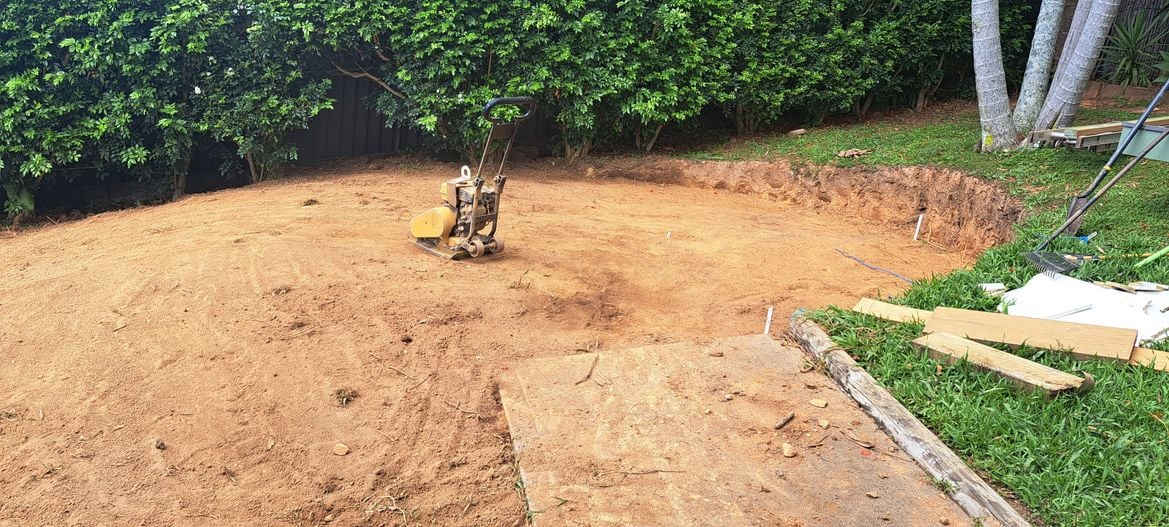

Once cleared, I started cutting into the slope and levelling out the ground. The back of the firepit seat will also act as a retaining wall. I then used a whacker packer so I could start with a firm surface.








Step 3

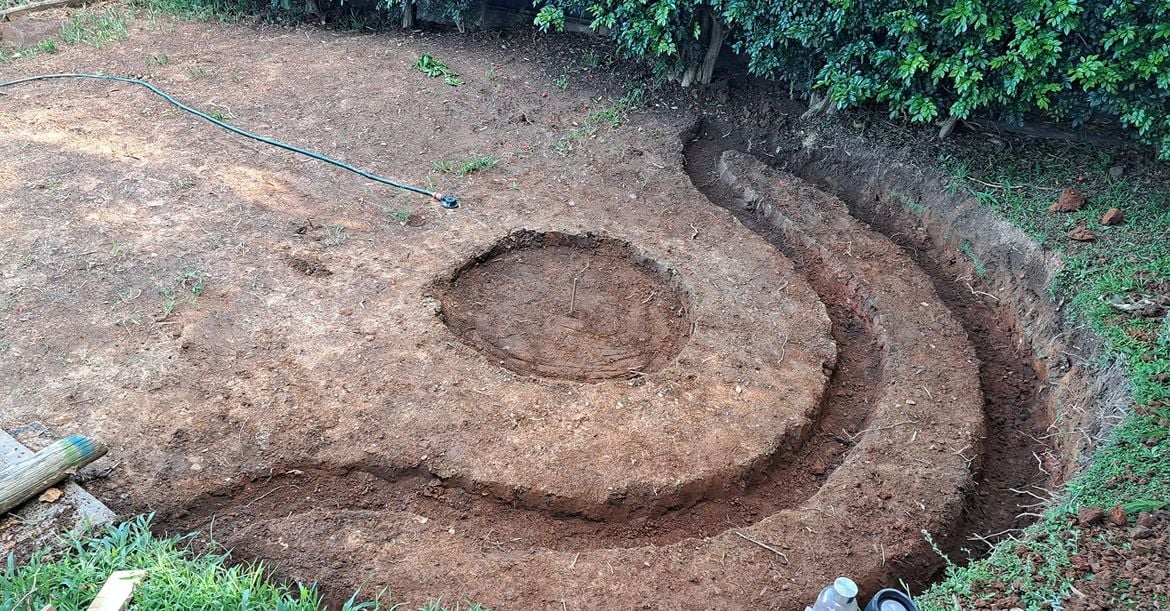

I then dug out the trenches which would be filled with concrete for the footings.





Step 4

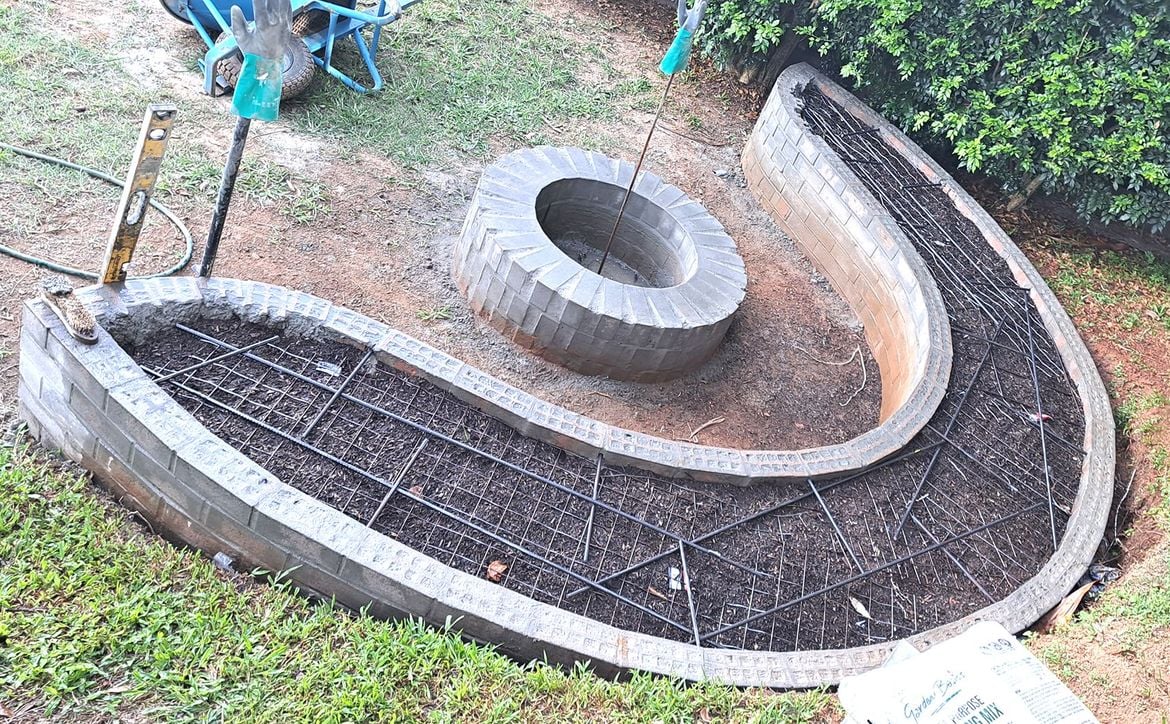

Once the bricks were laid I prepared the top slab with reinforcing mesh and the rods were drilled into the brickwork to prevent sinking.






Step 5

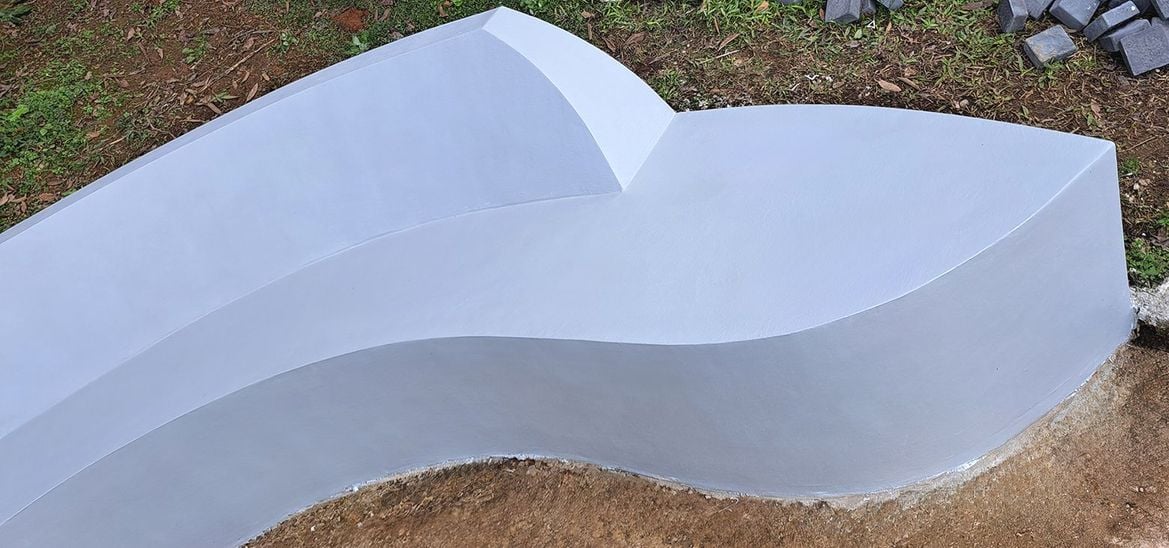

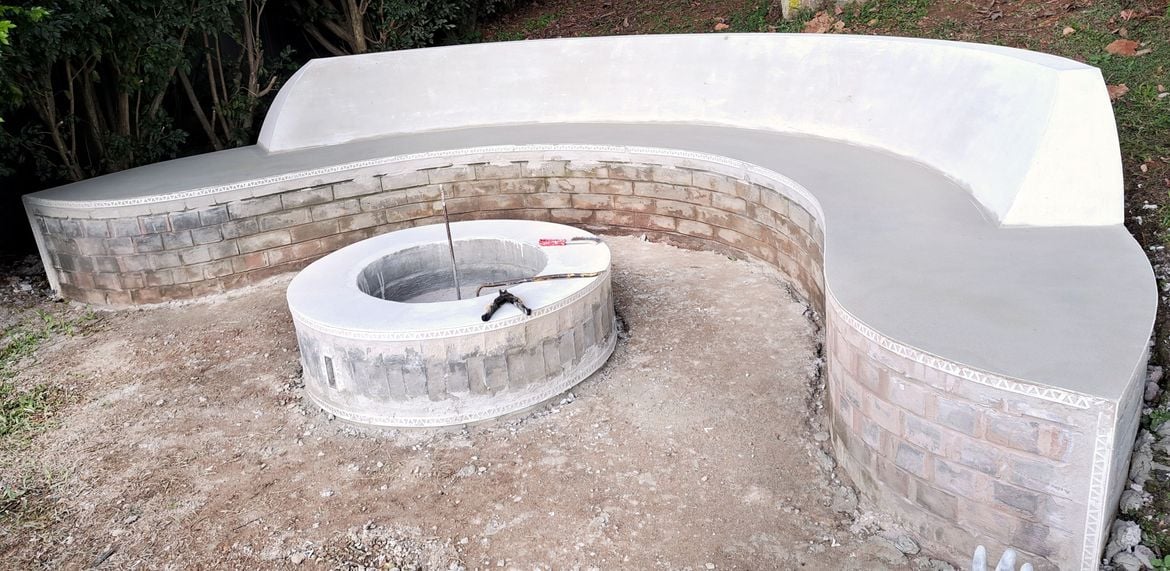

Once the slab was set. I then finished the back rest and started rendering.







Step 6

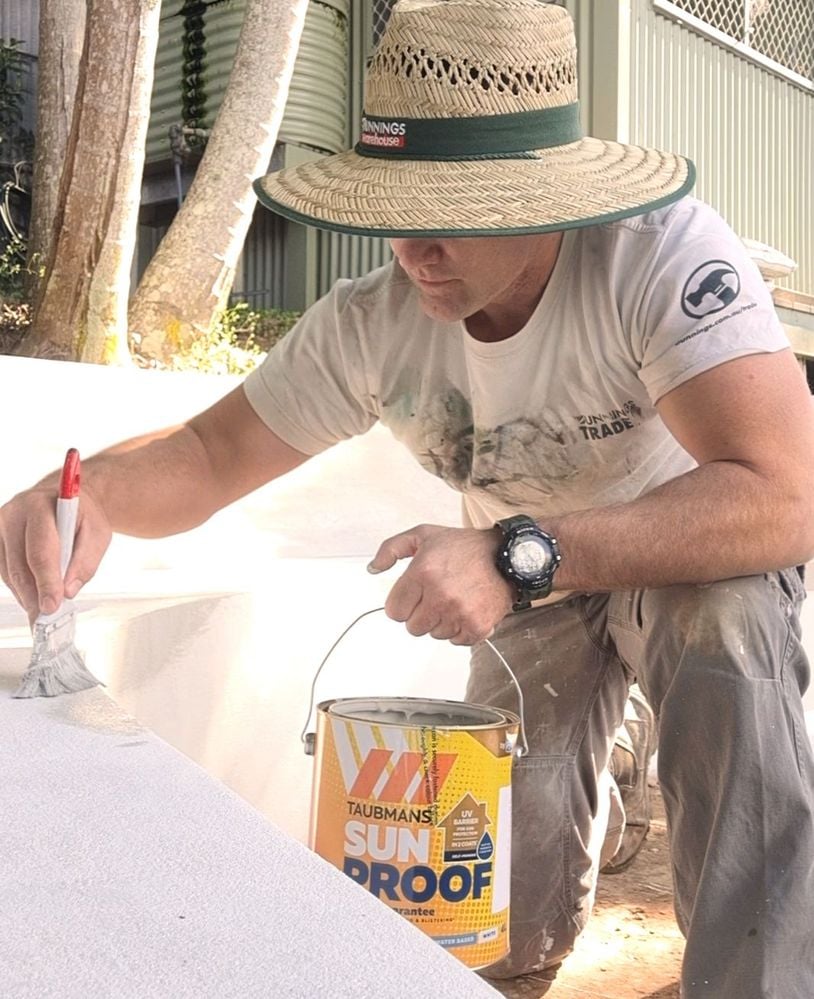

I didn't want to risk paint dripping on the new pavers, so I decided to paint the rendered brick first, before starting laying the pavers.






Step 7

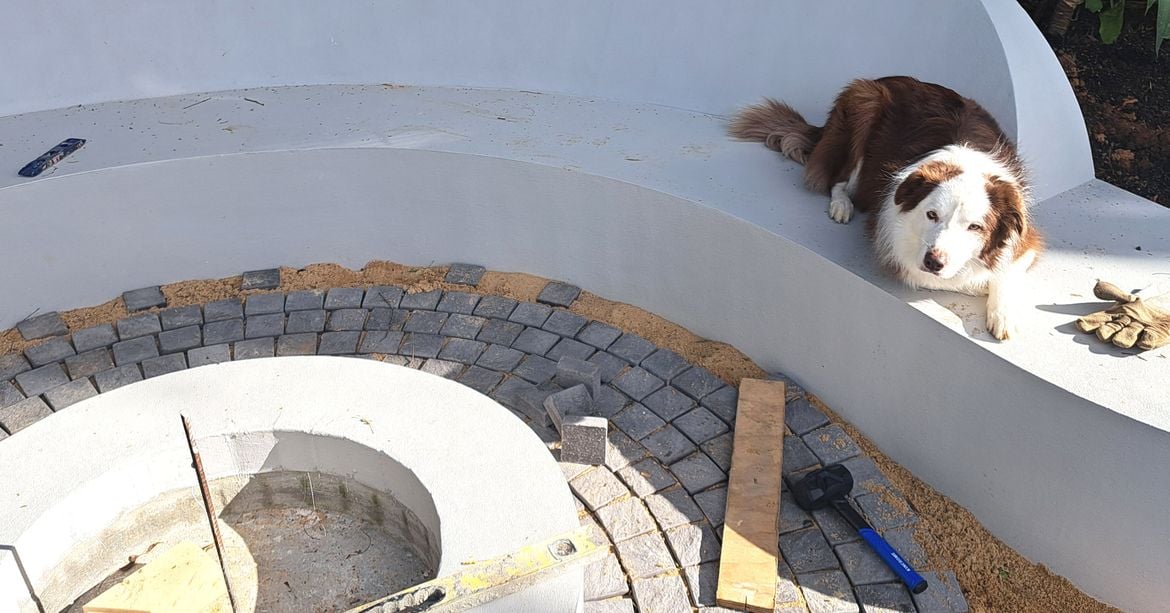

I placed down black plastic before a layer of paving sand. Then I started laying the cobblestones. The paving is laid on a gentle angle to allow water run off.






Step 8

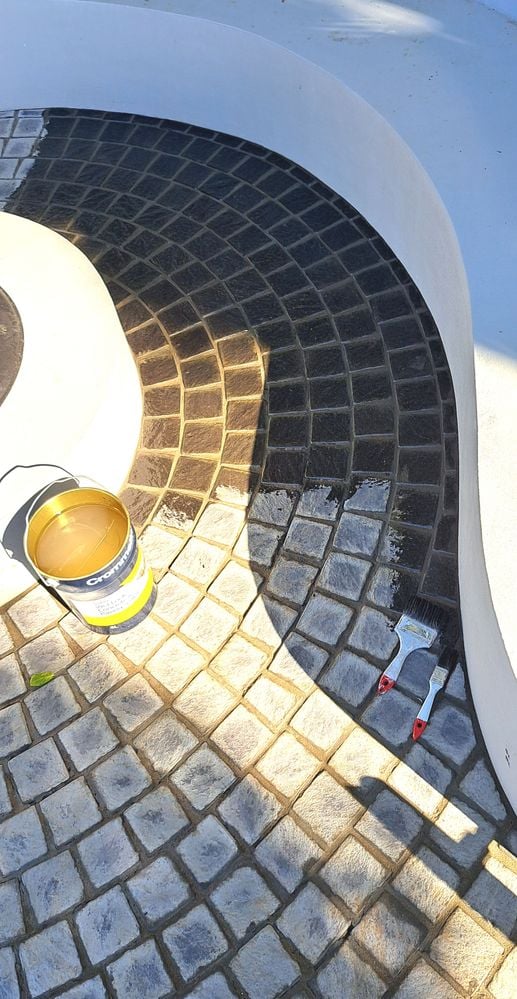

After filling the gaps with sand and cement, I sealed the pavers with two coats of sealer.





Step 9

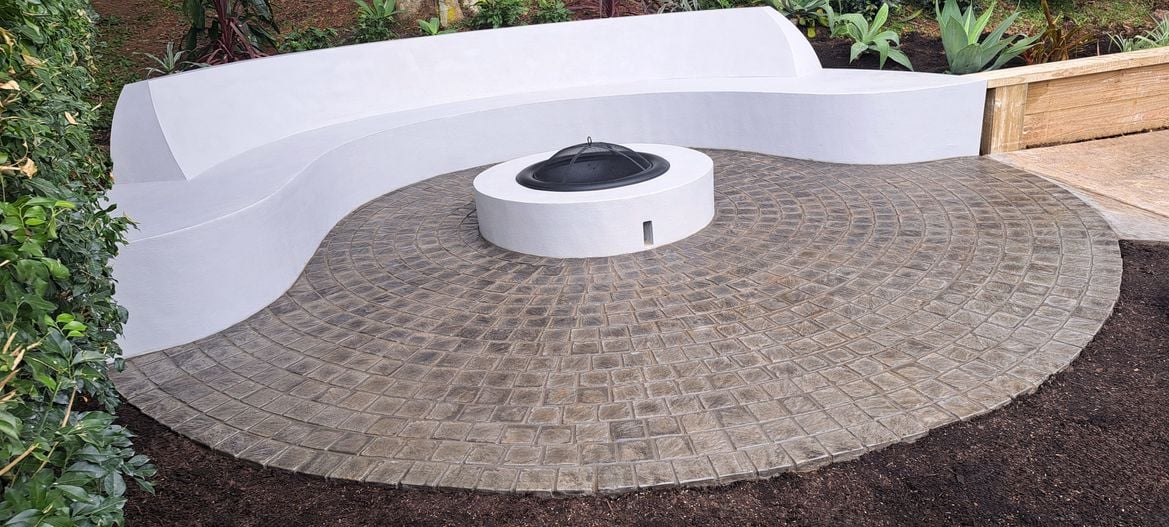

Finally, I inserted the metal fire pit bowl, put down the top soil around the edges, and sprinkled some grass seed to help the lawn grow.



I also added a heap of plants around the outside which should look great when they are established.





Step 10

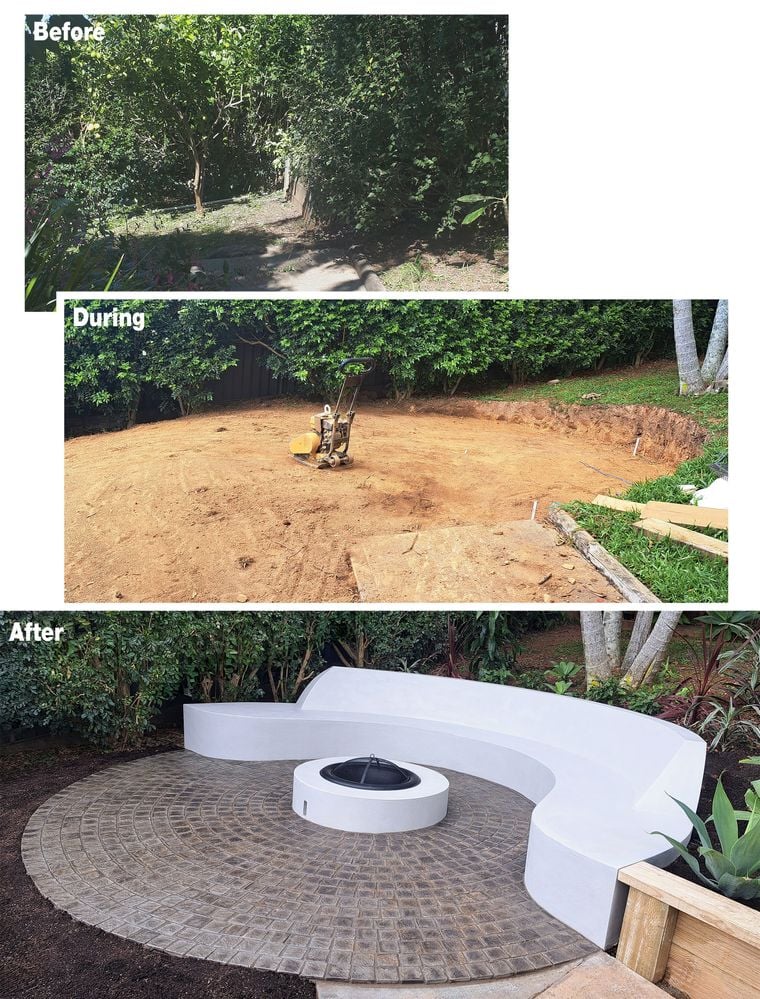

_before and after 1 copy.jpg



Tools and materials



Materials used in the project:





Tools used in the project:
