Jake's hand surgery - repair to garden s...

Noyade

He was purchased from Bunnings (do they still sell him?) a few years back and lives in our garden. There were other similar pressed metal ornaments with names - but our middle son's name is also "Jake" (Jacob).

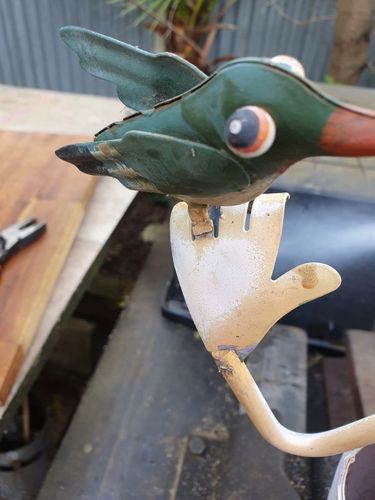

But I noticed today his left hand had separated - only a very small spot weld held it on. Odd, because he never complained of pain nor alerted us to his dilemma. In fact he declined local anaesthetic for the surgery.

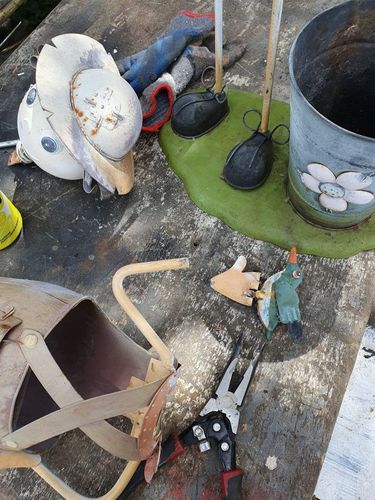

A childish project compared to what you see on this board - but it's a slow Saturday morning/afternoon.

I decided against re-welding.

Steps

Step 1

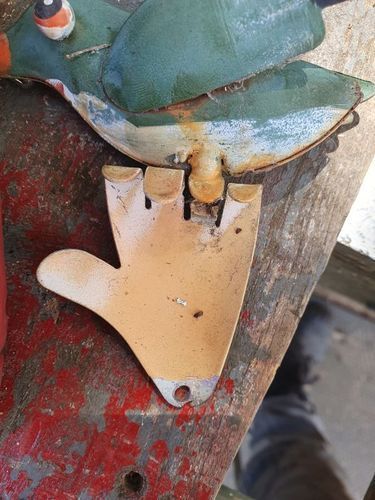

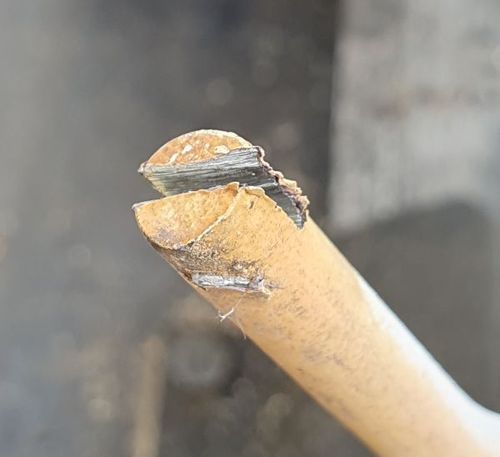

First - I cut a groove at the wrist...

Step 2

At this stage I thought of metal glue (once mentioned on this site)...

Step 3

But decided to try a small M4 bolt.

I drilled a 4mm hole on the thickest side - with a thin steel plate inserted prior - to prevent drilling into the other side.

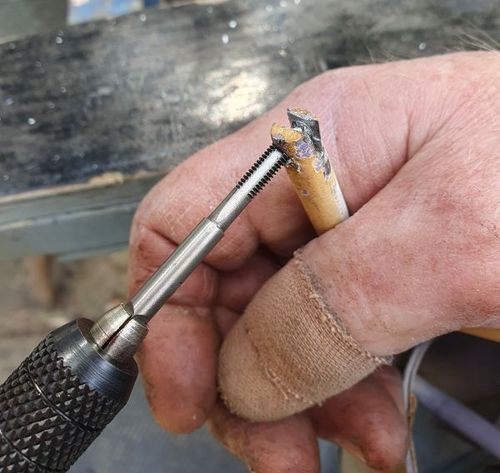

Then drilled a 3.3mm hole into the thickest side - and tapped a M4 thread...

Step 4

Positioned the hand and marked a spot from the 4mm hole side - removed and drilled through...

Step 5

M4 bolt inserted and tightened - no nut required.

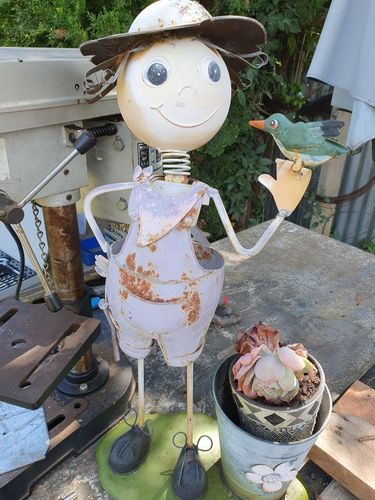

He looks better.

I need to re-paint him.

But it's time for lunch.

MitchellMc

Nice work @Noyade. It's great to see you put Jake back into commission. Can't wait to see your paint job!

Mitchell

Noyade

Thanks @MitchellMc

I thought welding could be a risk for the thin hand and it would destroy paint in that area.

What I need is multi-pot enamel paint - like Airfix from years ago. I'll look into it, but in the meantime he's back protecting a pet grave-site.

Cheers again!

Noyade

MitchellMc

What a transformation @Noyade!

Well done.

Mitchell

Noyade

Thanks Mitch @MitchellMc

My youngest son found some Revell paint pots he no longer uses. I now know why I gave up model making in my youth - too impatient!

There is more detail to paint - but the enamels were starting to mix - so I stopped for the day.

Cheers and thanks for watching.

Jake is certainly looking healthier.
