DIY steel shed

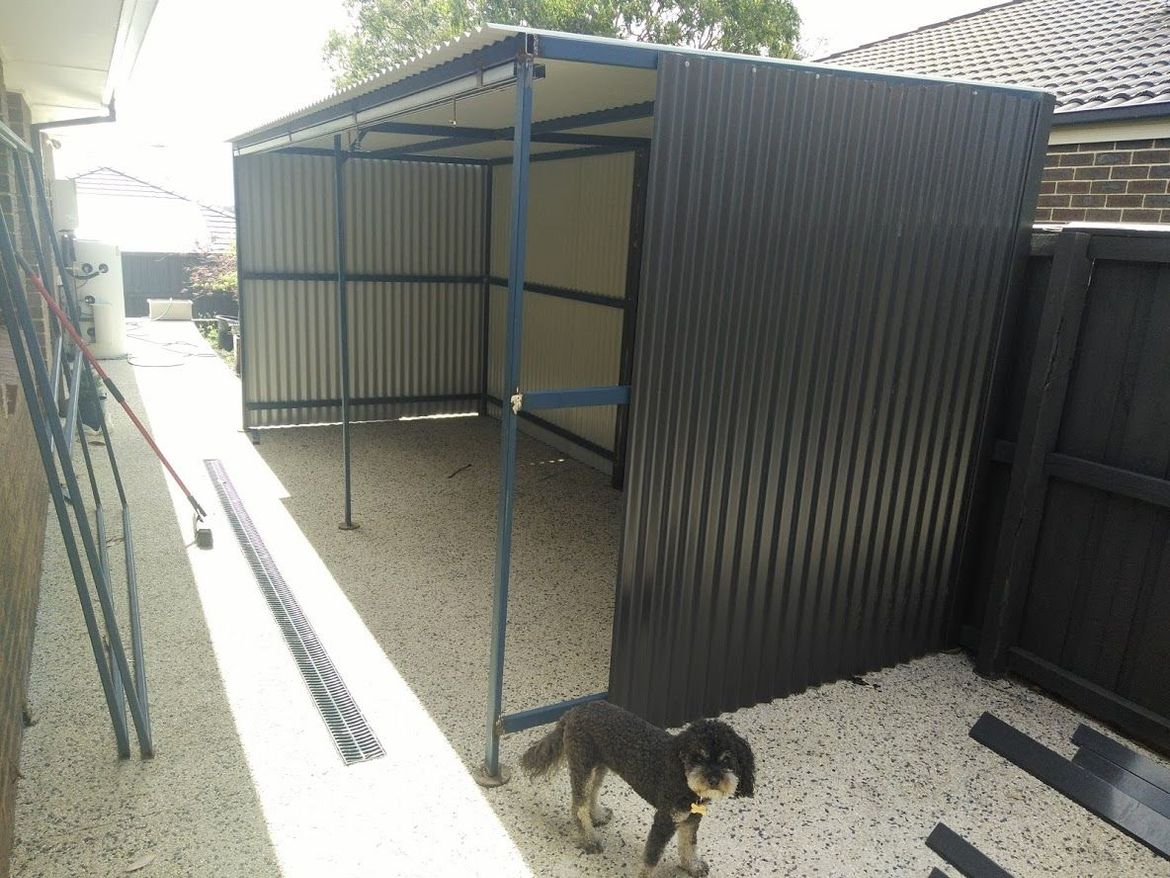

To get the tools out of the garage, I built a solid steel shed from scratch. Far from an expert welder, I sourced the steel beams from a local supplier and then special ordered the corrugated sheeting and flashing from Bunnings. The fittings (rails and wheels) for the large two sliding doors were purchased from Robot Building Supplies.

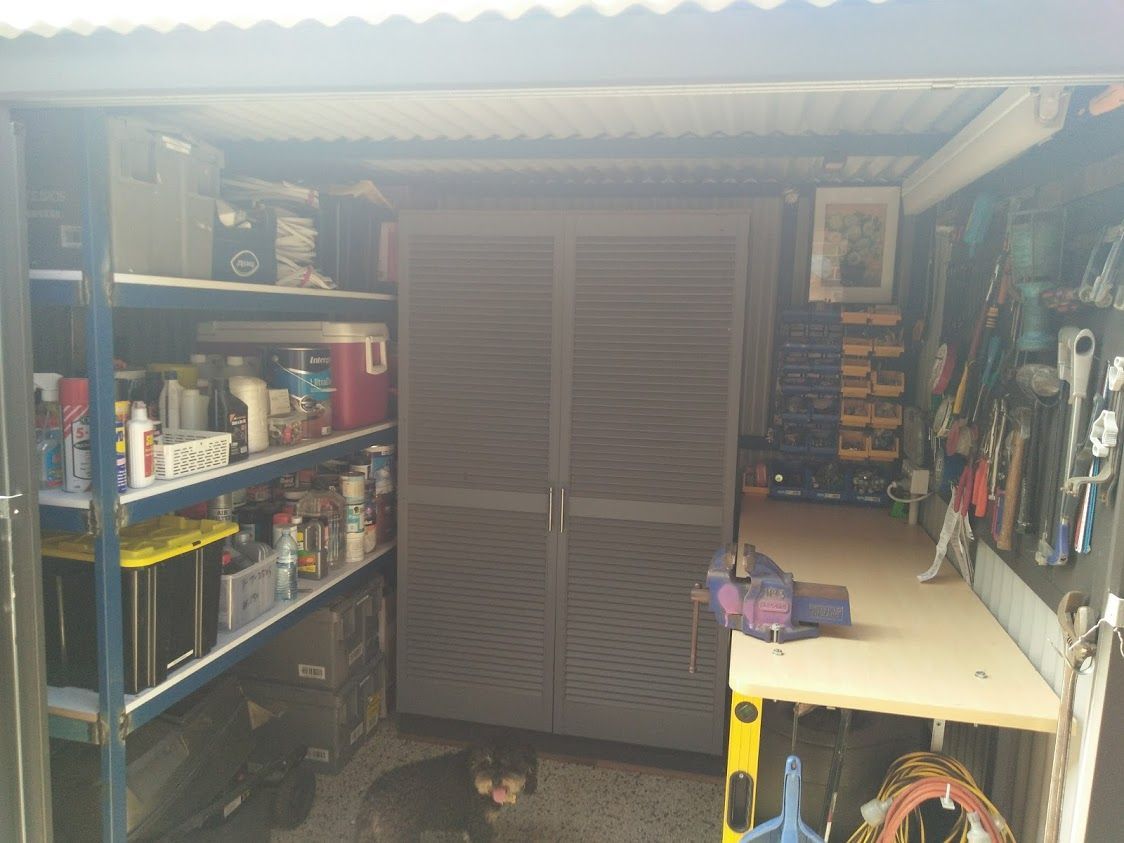

One side of the shed is a workspace as pictured, the other side is storage for all the garden tools and bikes.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY Steel Shed
Hi @Jimi,
What a great shed you have created there! You should feel very proud of your efforts as it looks amazing. Is there any particular reason why you built it yourself? Perhaps for a custom size, it worked out cheaper or you just felt like giving it a go? Either way, I'm really impressed at how professional it looks.
Many thanks for sharing your project and we look forward to seeing what you'll be building next.
Mitchell
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY Steel Shed
Hi,
I would have much preferred to buy one than custom build it (for time purposes), but i wanted it strong and i wanted to maximise the size of the shed in the area that i had. I couldn't find a pre-made shed this size (5m x 2m) with sliding doors to access both sides. Also, as I have the fence posts on my side of the fence, I didn't want to build a shed in-front of the posts as i would effectively loose 100mm or so along the whole 5m length. So the back of my shed, has a small channel that wraps around the fence post therefore not loosing any space. Price wise didnt matter so much, although this was still relatively expensive, this shed is not flimsy in any way, high quality sliding doors and a good size shed, it was much more cost-effective to build myself. I also really wanted to get better at welding, so this gave me the opportunity...although 'better' may be an overstatement.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY Steel Shed
Many thanks for the additional information. It certainly looks like you made the right decision given the circumstances. I'd imagine employing a company to build a custom shed of this calibre would attract a premium price tag. I think you are also being too modest about your welding skills, they look more than adequate and the shed appears to be professionally made. Good solid welds don't necessarily need to look pretty.
Mitchell
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY Steel Shed
@Jimi I was thinking of doing something similar (building my own shed).
How did you go with council approvals? What kind of drawings and info do they need? I'm confident in designing and building it - not so much the approvals.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY Steel Shed
Welcome to the Bunnings Workshop community @toxicantidote.,
It's great to have you join us and we look forward to hearing more about your shed project. I trust @Jimi can let us know what procedure they went through, however, as to the regulations in your local area it is best to check with the council as per their requirements. There are often limitations before needing approval, those could be the overall height, square meterage, how close it is to an adjoining property and if the property is considered rural. Your local council can certainly set you in the right direction with the relevant paperwork that applies in your location.
Mitchell
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY Steel Shed
Hi @toxicantidote,
as @MitchellMc has explained, it is always best to check with your local council. As my shed is freestanding and not over 10m2, a permit was not required.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY Steel Shed
@Jimi Dang, I was hoping you'd had experience doing the legwork with the council.
My council needs permits for "any span over 3m". I might have to rethink my plans to incoporate this limit.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Highlight
- Report Inappropriate Content
Re: DIY steel shed
Hey mate I noticed your shed is along the fence, so obviously you didn't mount the wall from the outside of the frame while the frame was standing up along your fence? Can you please tell me how you did it? Any information on how you got that wall up next to the fence would be greatly appreciated.
