Ironbark vertical batten fence

DIY4Knuckleheds
Making a Splash
DIY4Knuckleheds
DIY4Knuckleheds
Making a Splash



A front fence built with vertical Ironbark battens.






The project



The front of our house needed a new fence as the old one, which was probably built in the Jurassic Period, was looking a little tired and unappealing. After some thought in regard to adding some street appeal to our property, and since we live in a beachside village, we decided on a fence built out of Ironbark in the style of 40 x 40mm vertical battens which lends itself to the beachside vibe.



Bunnings 1.jpg

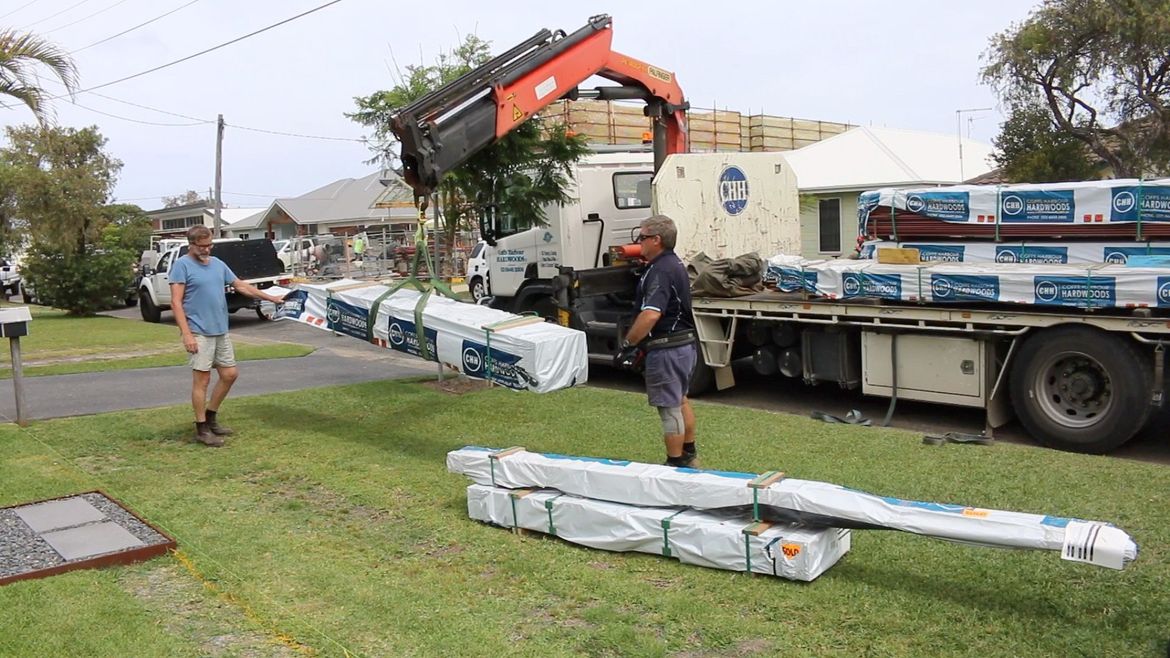

Three packs of beautiful Australian Ironbark arrive on my front lawn.



Bunnings 3.jpg

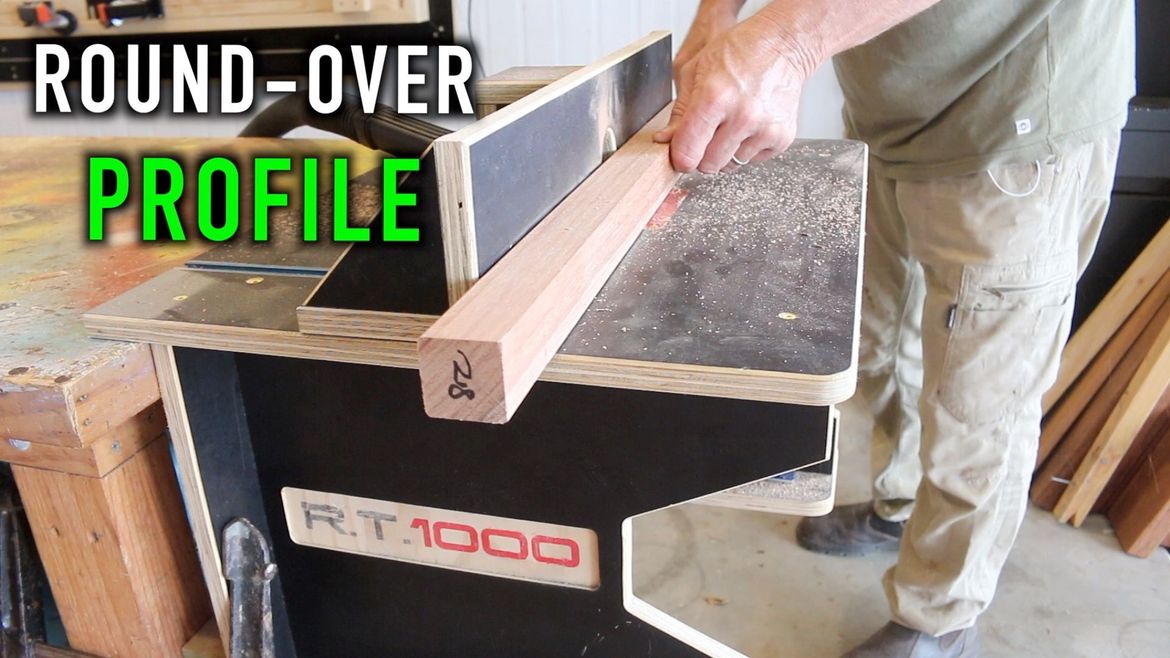

Putting a pencil round on all the fencing material using my router table.



Bunnings 4.jpg

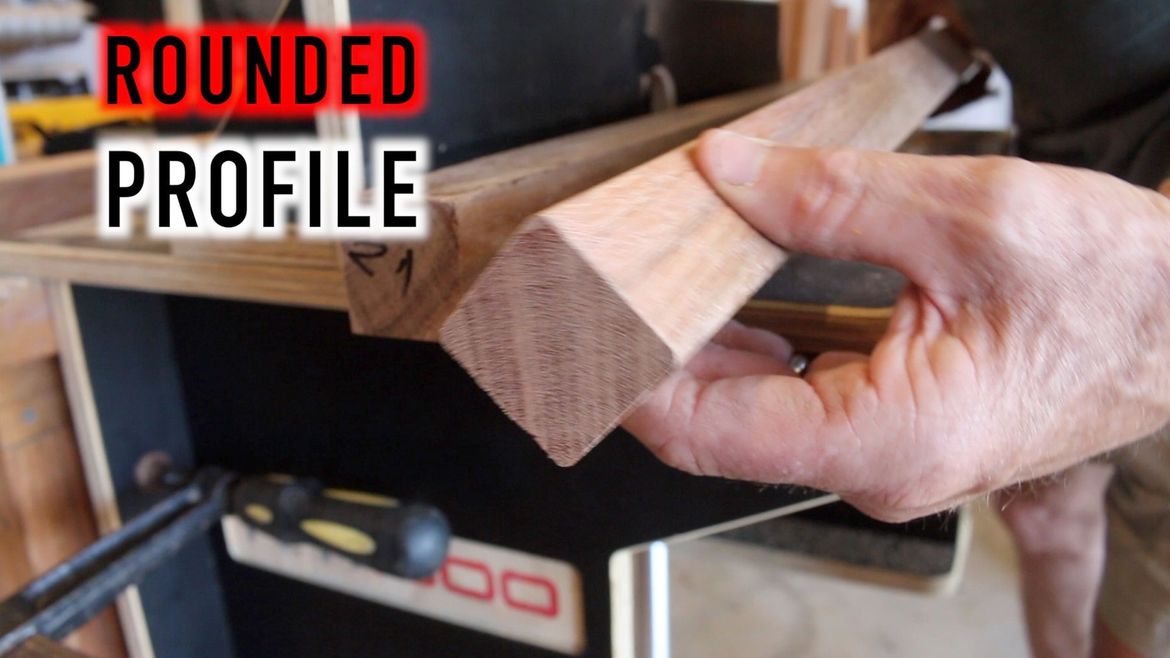

One of the vertical battens with the pencil round applied.



Bunnings 5.jpg

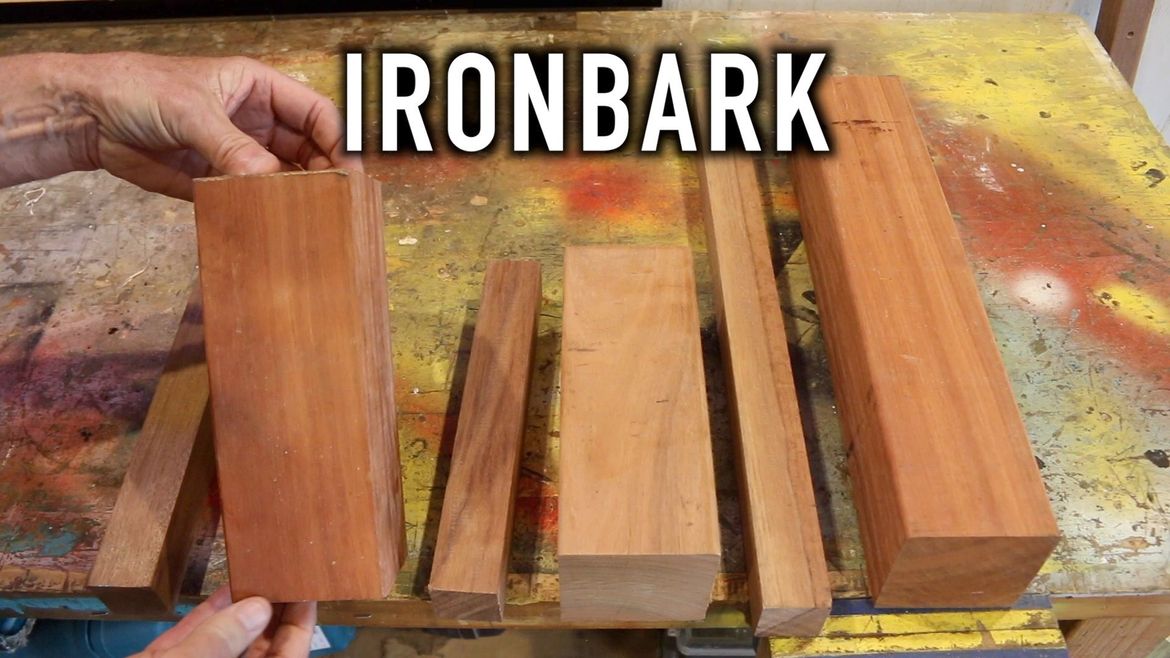

Samples of the Ironbark posts and vertical battens.



Bunnings 6.jpg

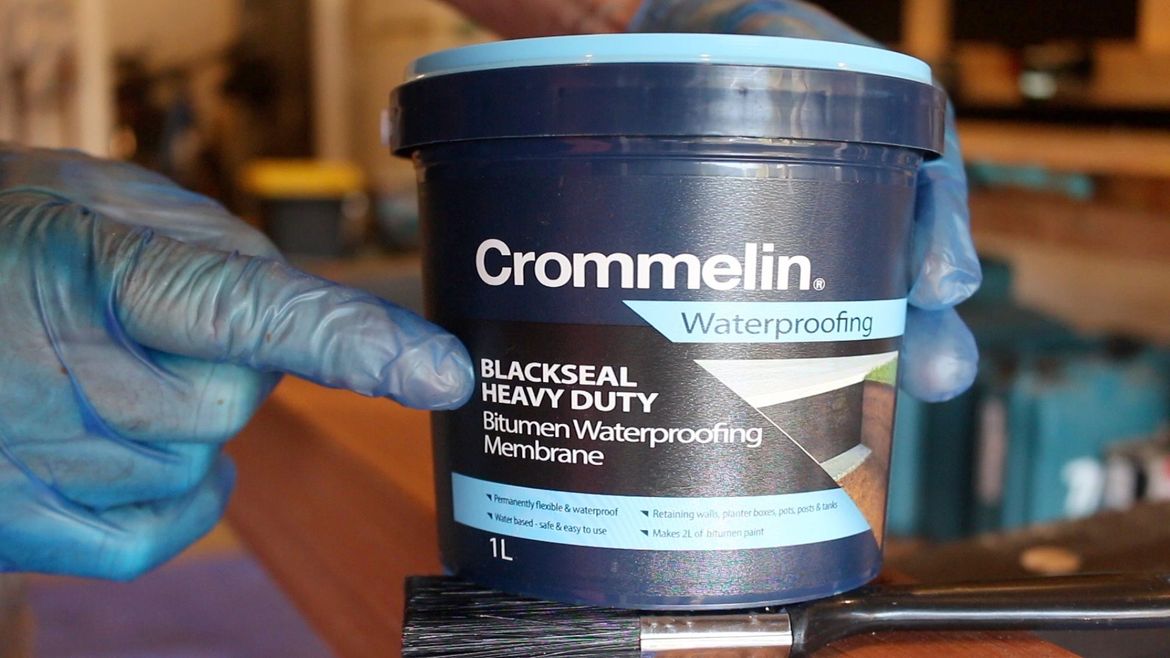

Bitumen waterproofing paint that l applied to the part of the post that goes in the ground.



Bunnings 7.jpg

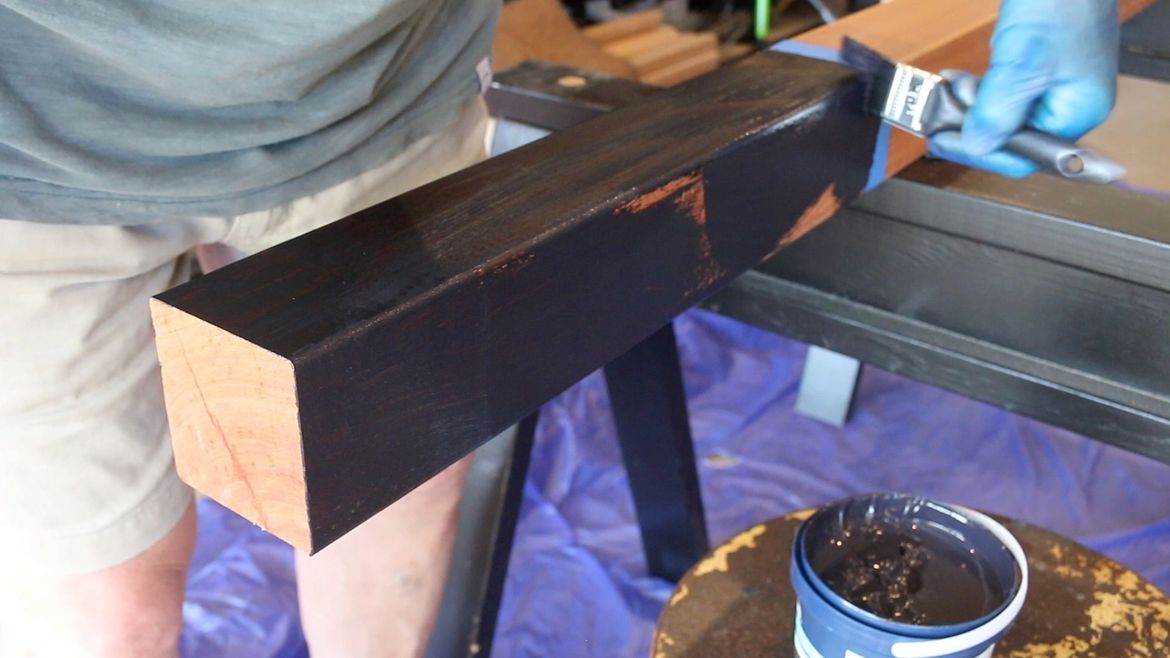

Applying the waterproofing bitumen paint to the post.



Bunnings 8.jpg

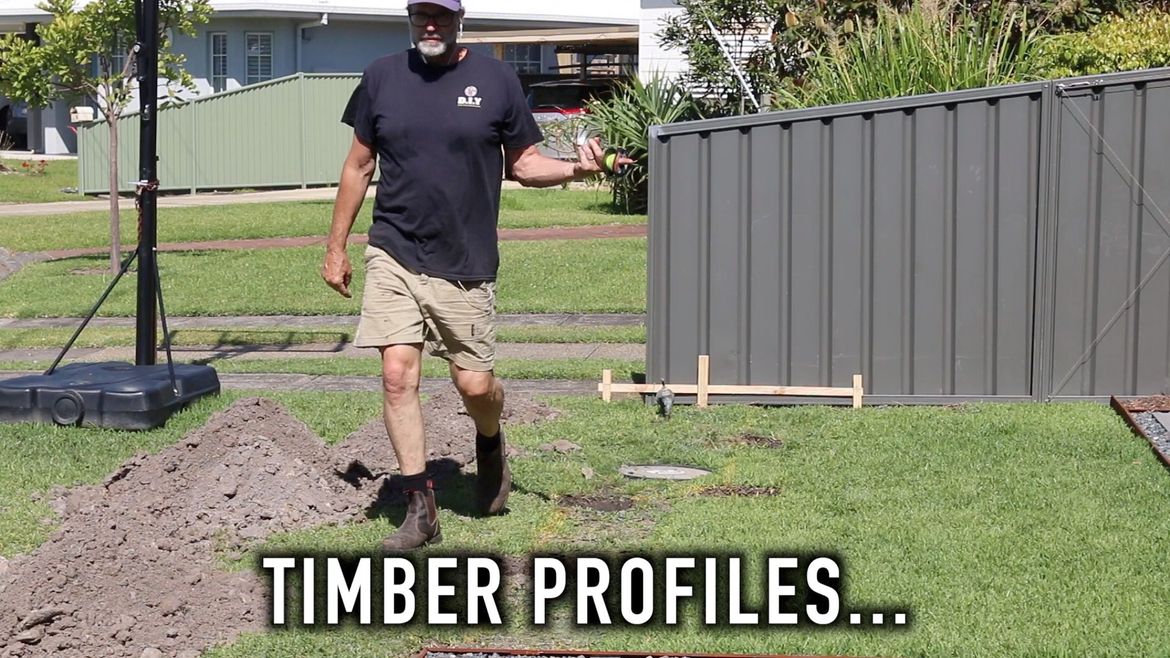

Setting out the posts using timber profiles.



Bunnings 9.jpg

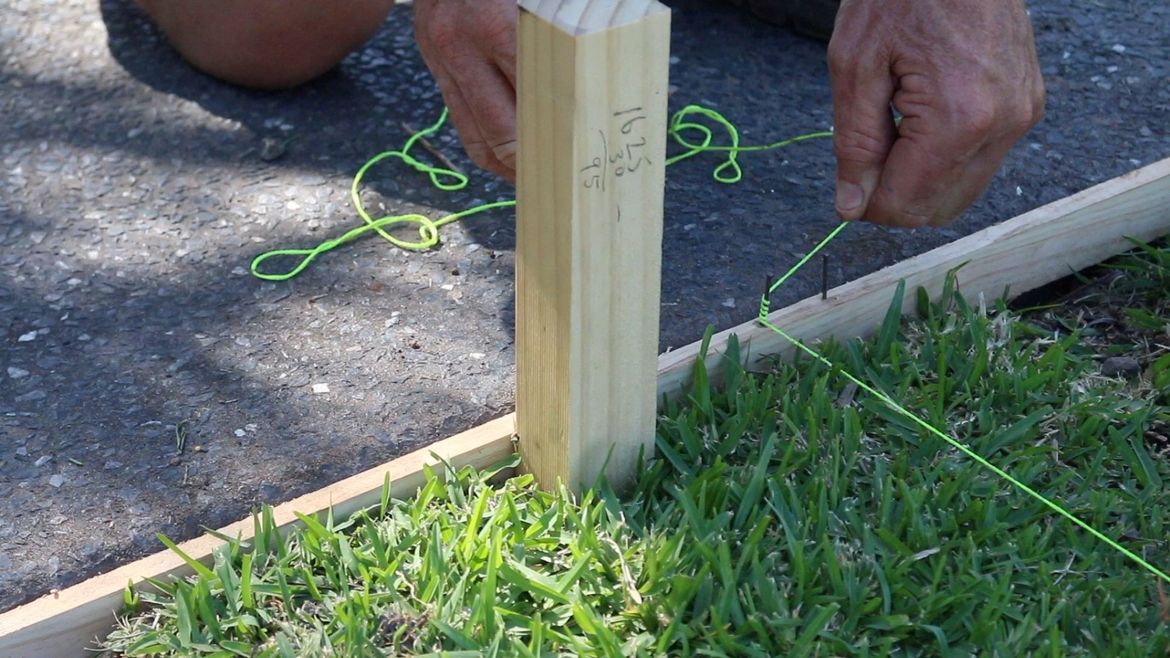

Tying off the string line to a nail attached to the timber profile.



Bunnings 10.jpg

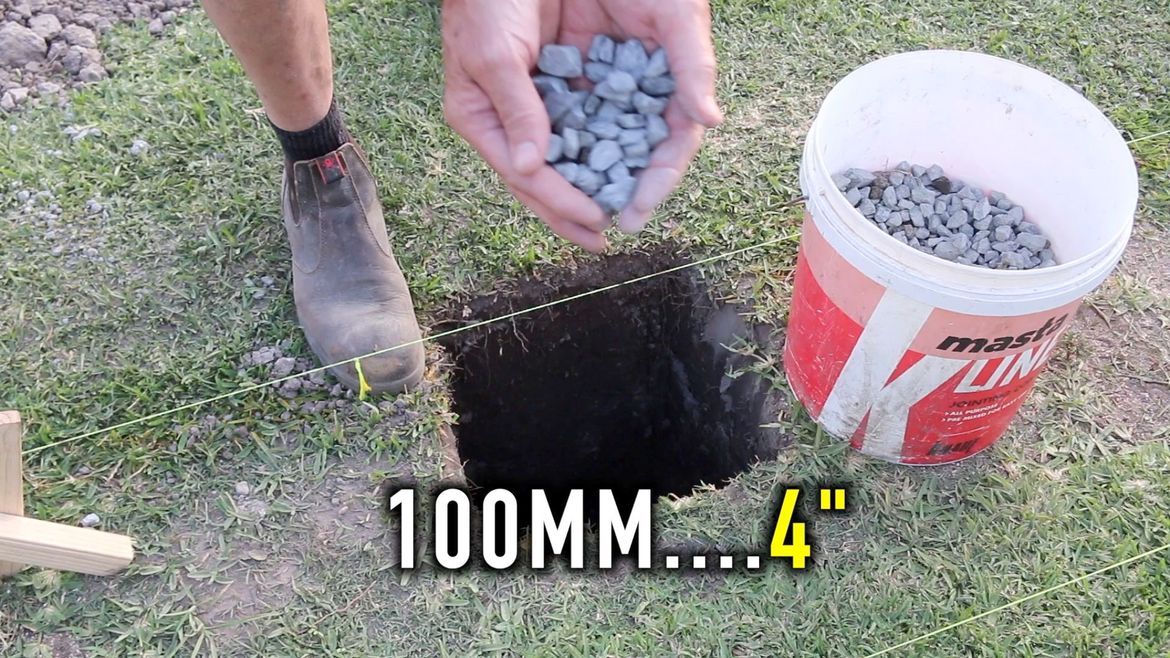

Adding gravel to the bottom of the hole to encourage drainage away from the bottom of the post.



Bunnings 11.jpg

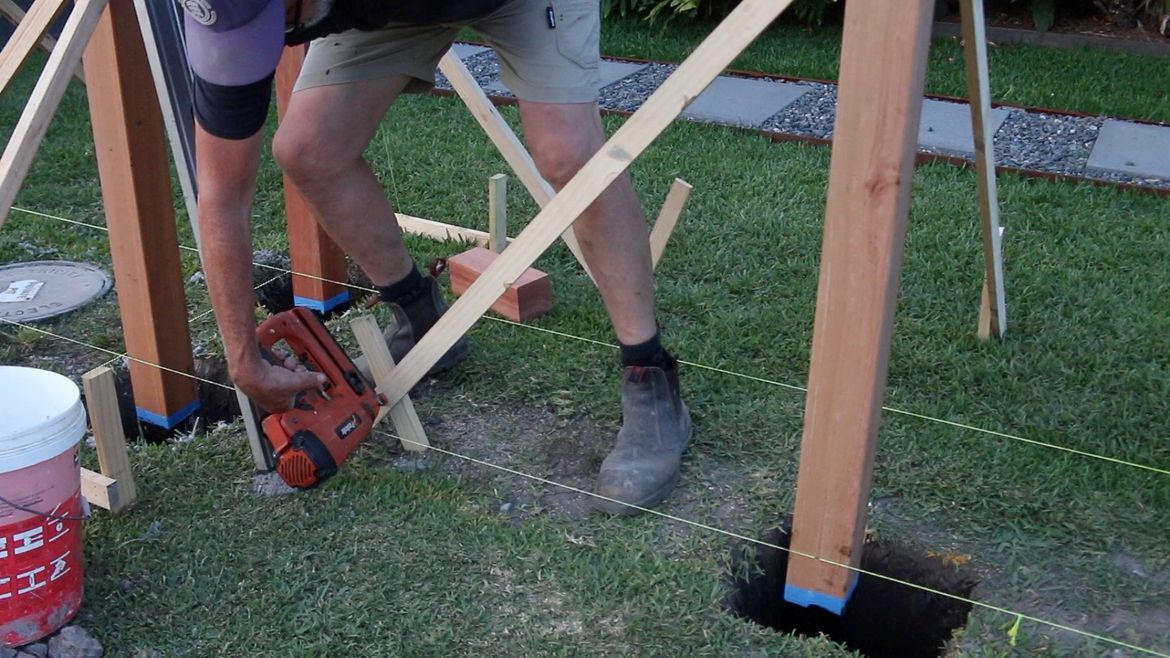

Using braces to hold the post straight and plumb.



Bunnings 12.jpg



Adding concrete to the posts.



Bunnings 13.jpg

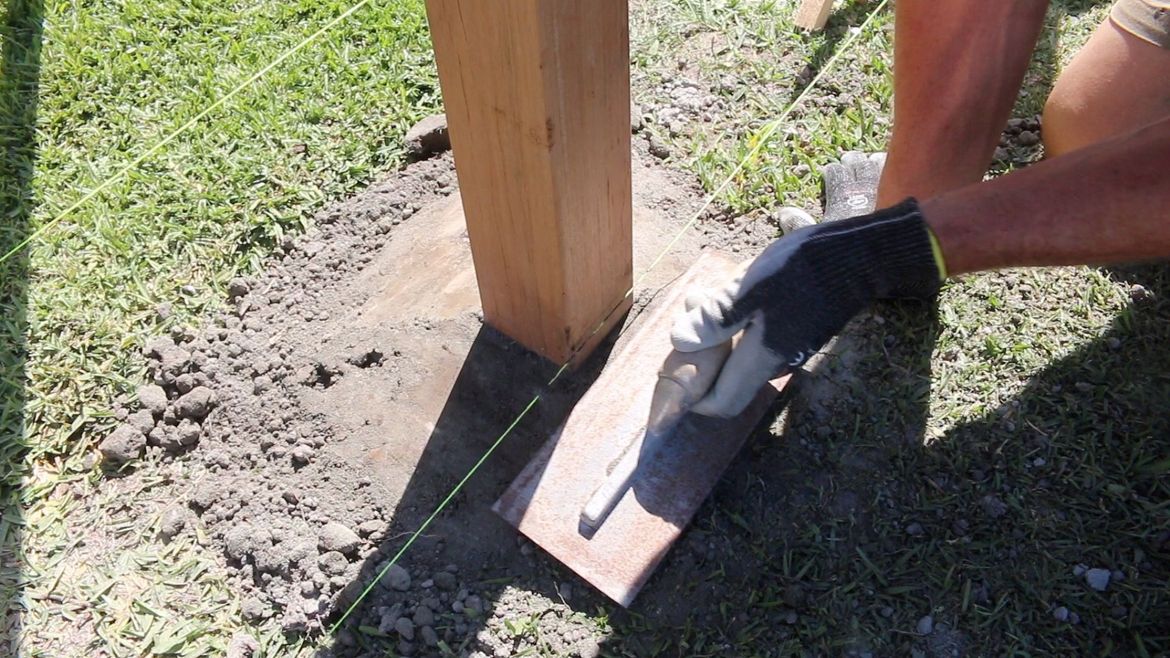

Crowning the base of the post so the water runs away from the post.



Bunnings 14.jpg

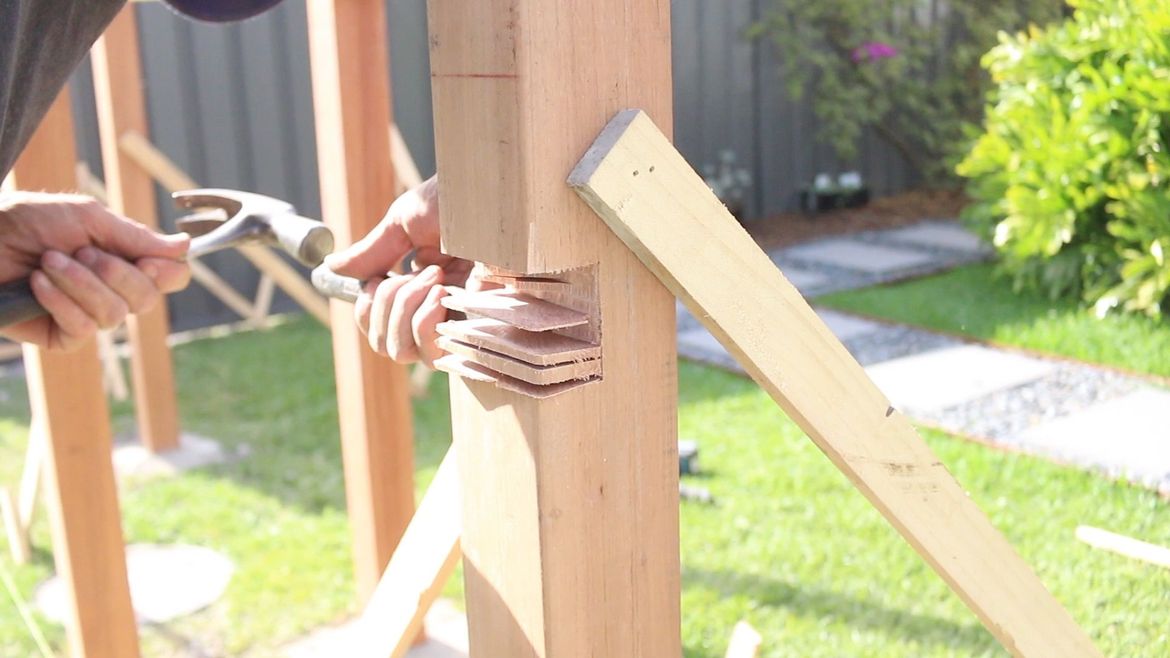

Chiselling out the checkouts for the rails.



Bunnings 15.jpg

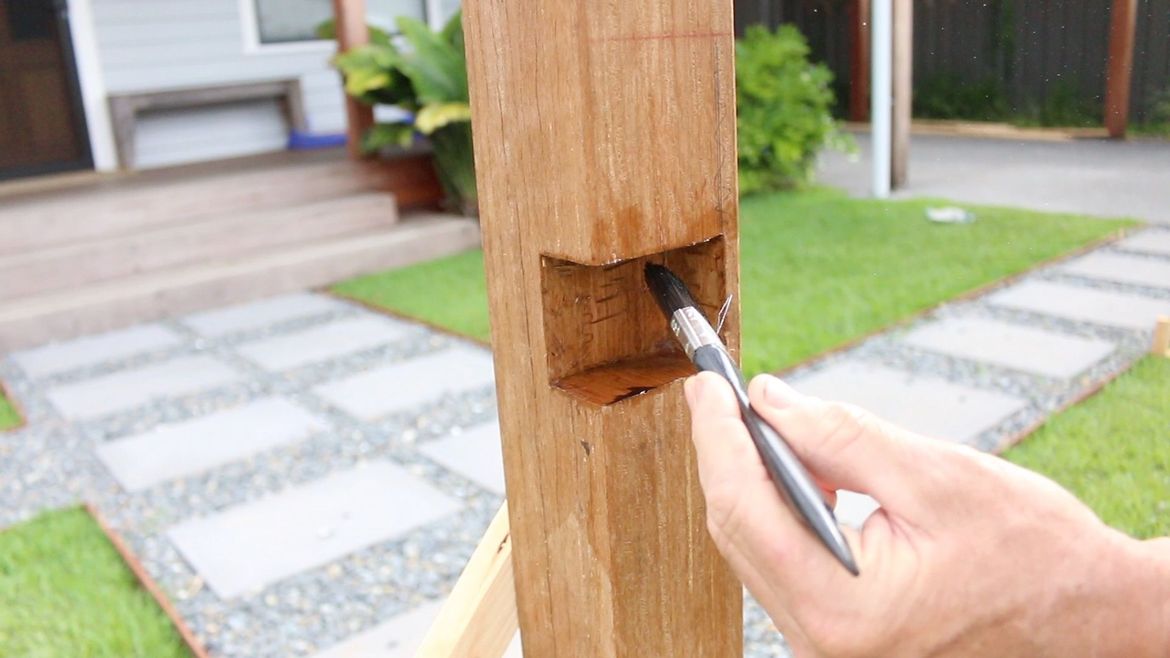

Applying some oil-based decking oil to all the checkouts and the freshly cut ends.



Bunnings 17.jpg



Applying an oil-based decking oil to the fence frame prior to installing the vertical battens.



Bunnings 18.jpg

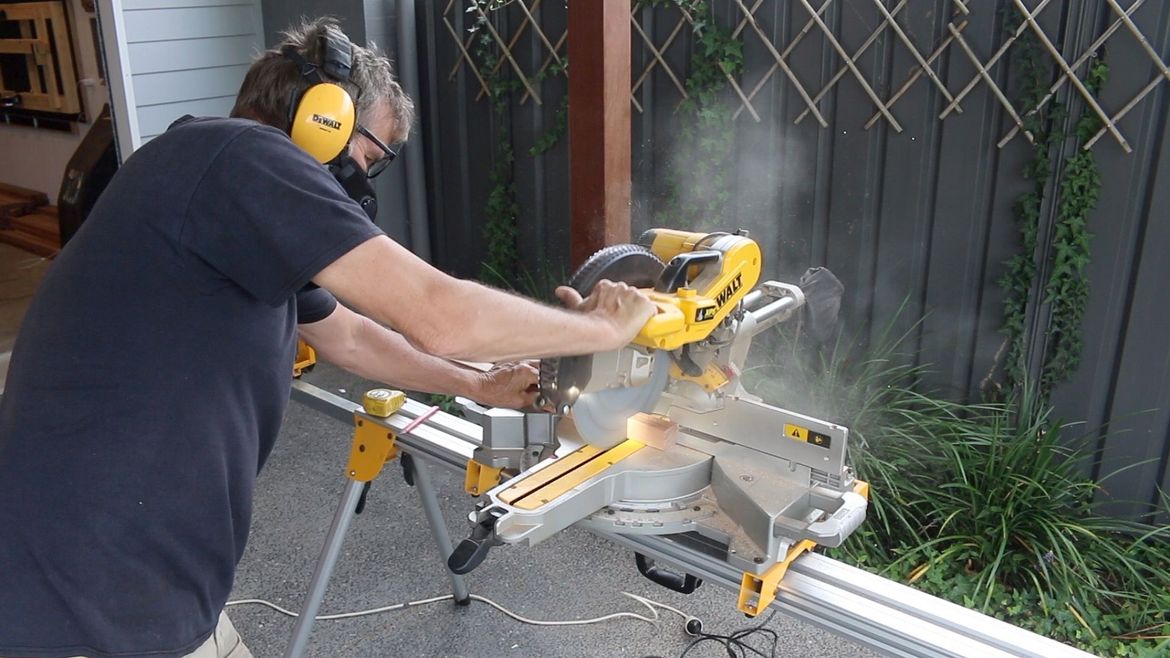

Cutting all the vertical battens to length prior to installing.

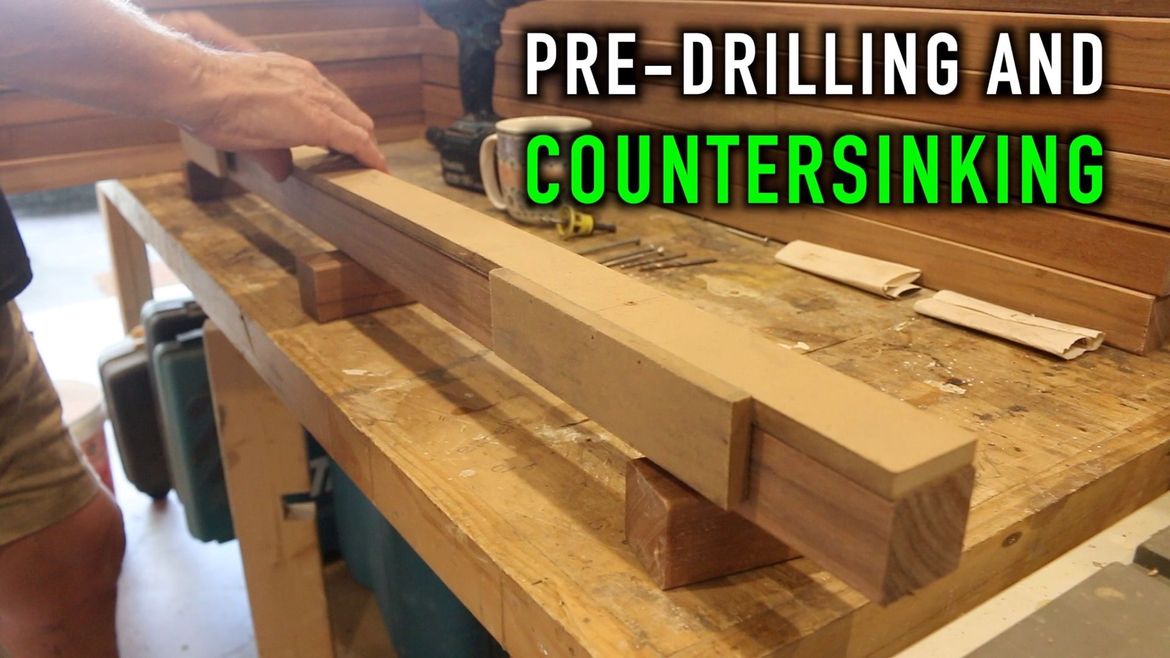

Using a template to drill the holes for the vertical battens.

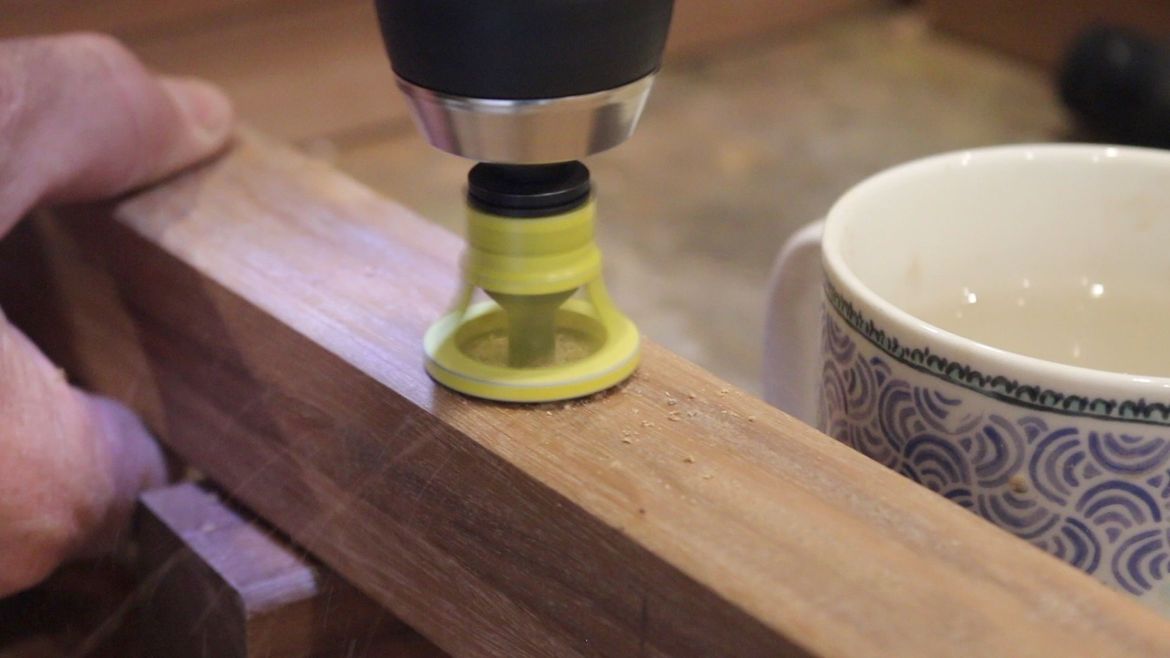

Using the Macsim 10 gauge clever tool to countersink the screw holes.

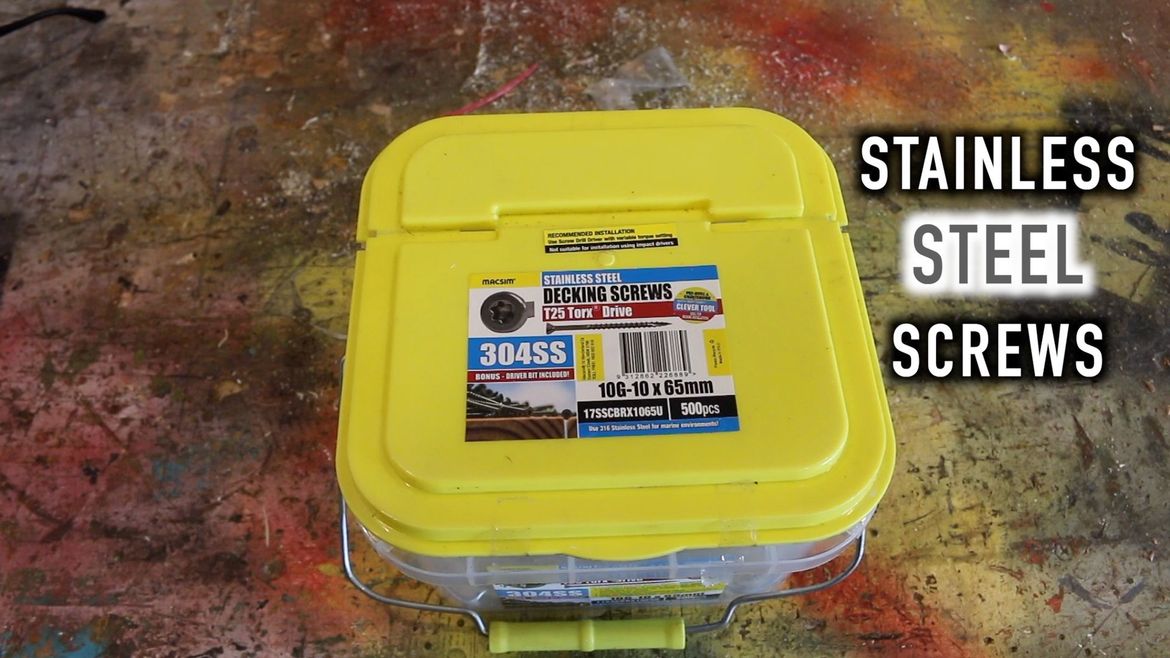

10 gauge stainless steel decking screws for the vertical battens.






Do not use an impact driver as you will snap the soft stainless-steel screws when driving into hardwood. Use your regular drill and set the clutch so that it kicks in once the screw comes to a stop.

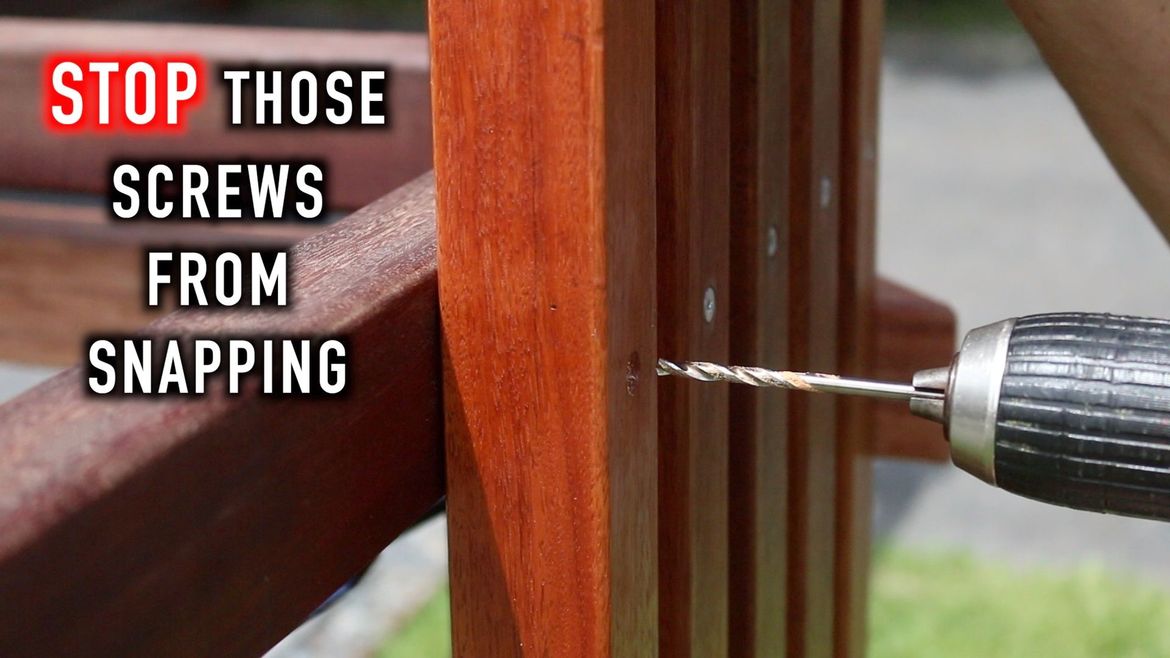

Pre-drill the screw holes in the fence rails.

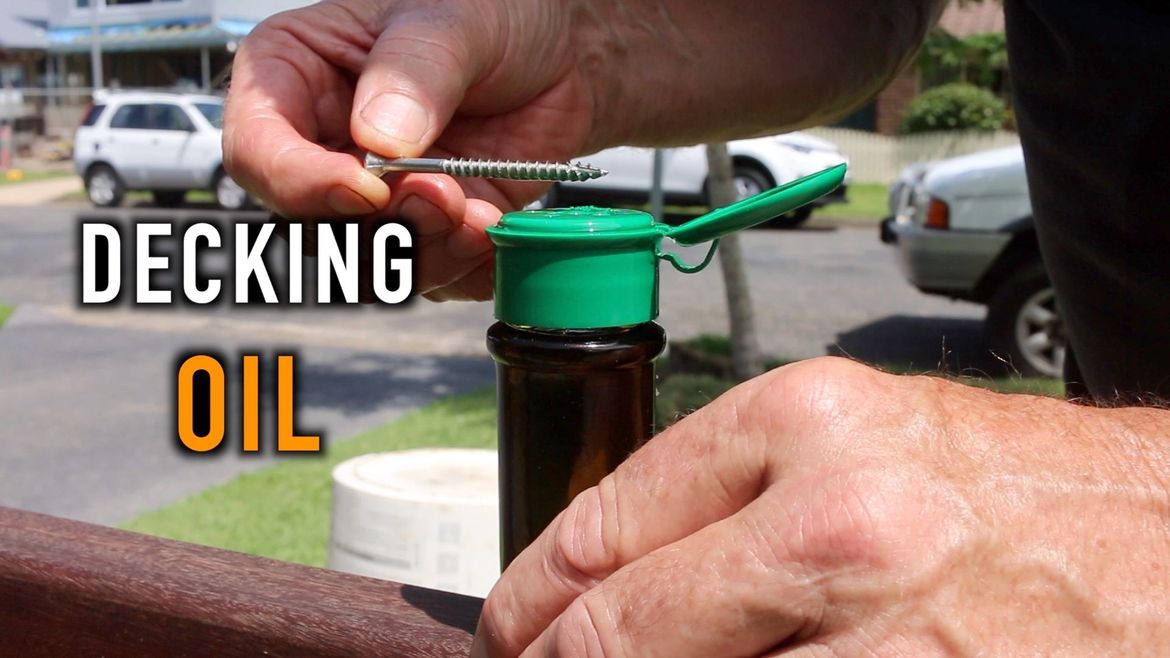

Applying some oil-based decking oil to the screws to add some lubrication prior to driving the screws in.






Using a level to plumb the vertical battens.






Driving in those stainless-steel screws.






Getting the job done. The reason for the right angles is just to add some interest to an otherwise fairly run-of-the-mill front fence.

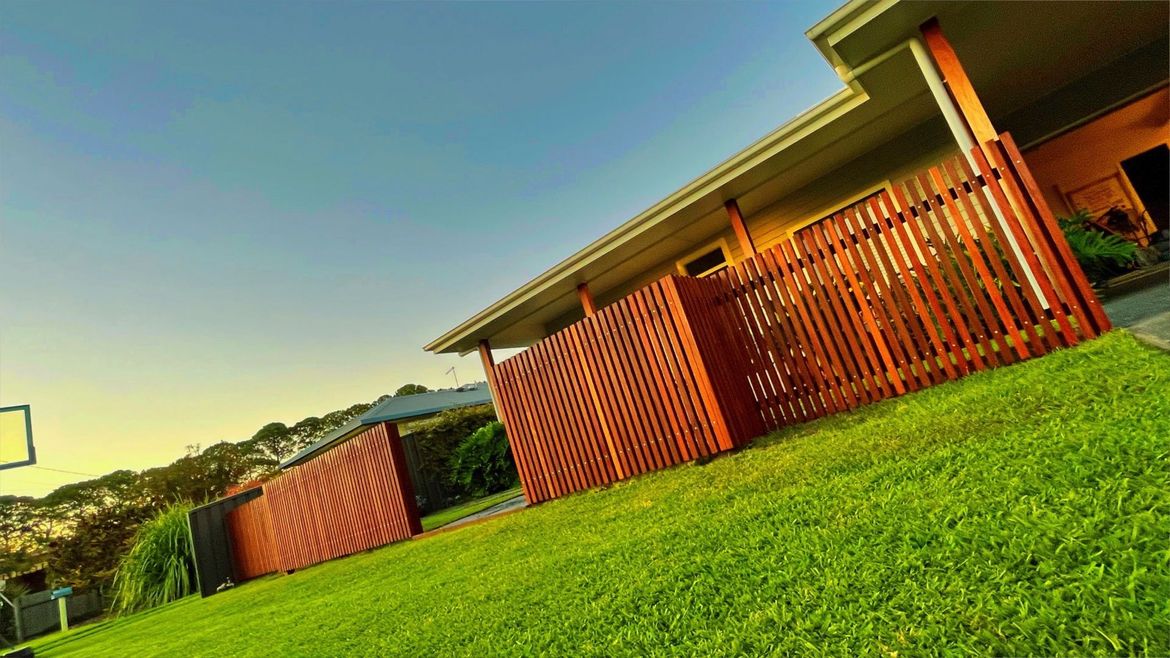

The finished product.



Bunnings 29.jpg



Bunnings 35.jpg

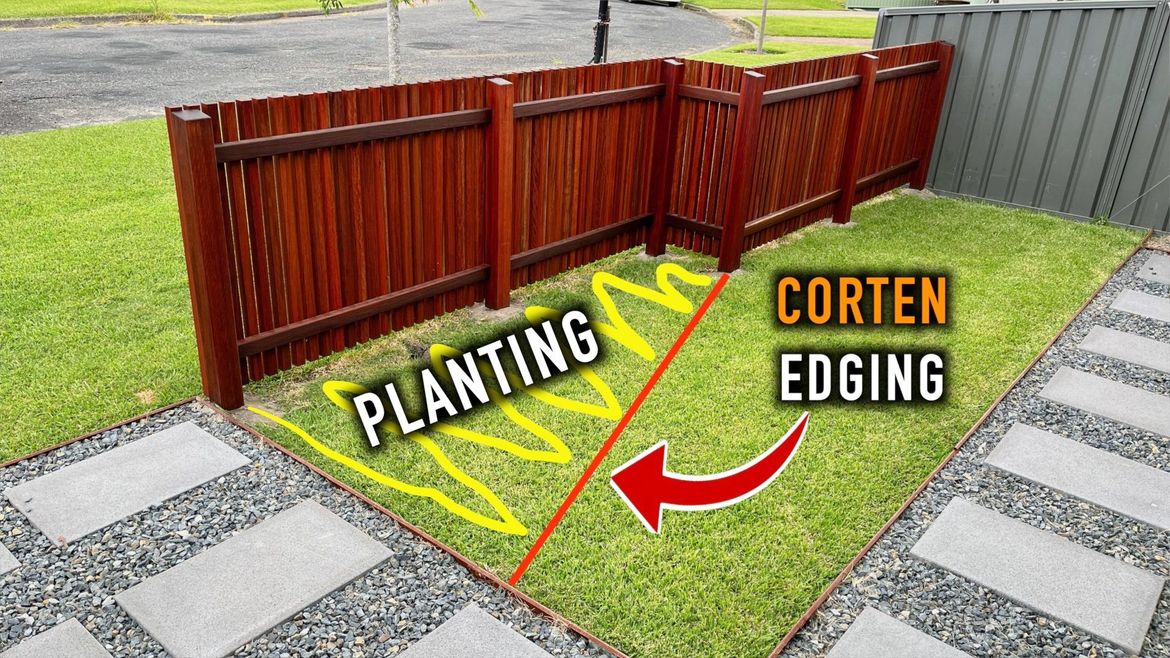

Future landscaping ideas.



Bunnings 26.jpg



Bunnings 27.jpg



Bunnings 28.jpg
