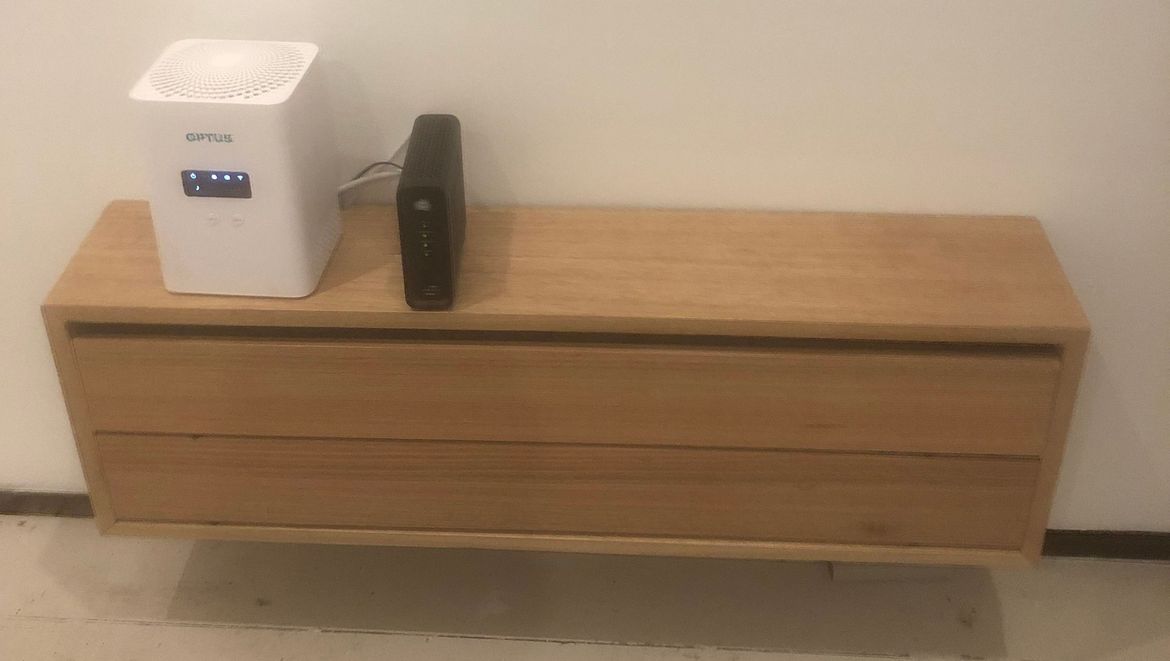

Tasmanian Oak stained with clear varnish and fitted with magnetic latches used to build a floating entertainment cabinet to conceal internet cables.
The project
I am currently painting a bedroom that has the NBN modem and internet cabling. The unit was located on a mobile shelf. I wanted something that would be permanent in the room.
I decided to make this timber shelf/cabinet that would conceal the cabling, powerpoint, powerboard and the RJ45 internet outlets. The cabinet is made from Tasmanian Oak, with two coats of water-based clear varnish, Satin. The 90 x 19mm timber was glued together to make up the width of 180mm bevelled at the end, glued and biscuit joined. (I had to make a jig to allow me to cut the biscuit cuts into the bevelled joints).

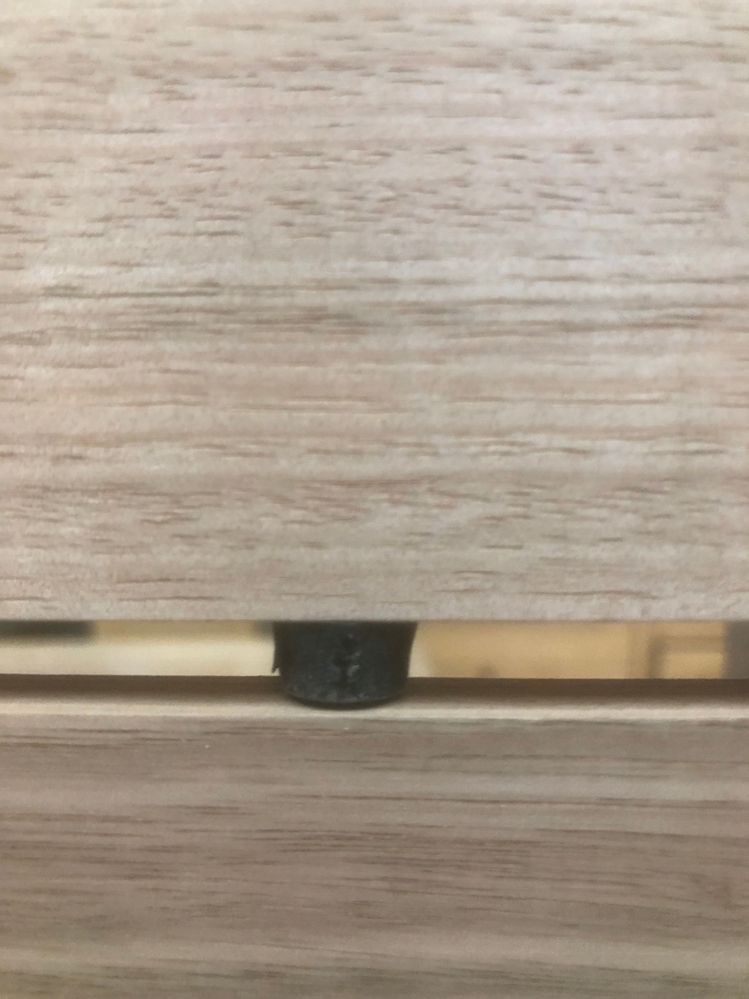

The front covers are made of 110 x 12mm Tasmanian Oak. These are attached using magnetic latches. I also attached plastic spacers/bumpers. This allows for the spacing in between the front panels.
The size of the unit is 940 x 300 x 180mm deep.
Tools and materials
Materials used in the project:
- 90 x 19mm Tasmanian Oak
- 110 x 12mm Tasmanian Oak
- 50 x 20mm Tasmanian Oak
- Screws for mounting the cabinet
- 6mm custom-made Dominos cut down to suit for the bevel joints
- Home-made jig for biscuit joints
- Wood glue (Titebond 1)
- Satin clear coat water-based varnish
- 120 grit sandpaper
- 240 grit sandpaper
- 4 x magnetic catches to suit
- 4 bumpers/spacers to suit.
Tools used in the project:
Steps
Step 1

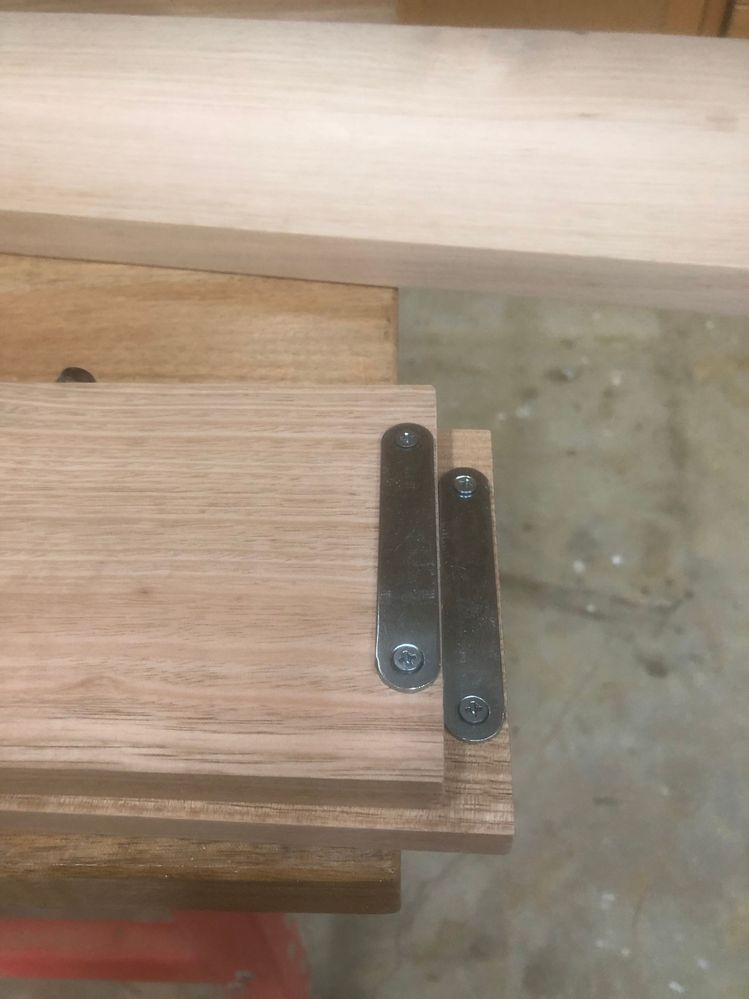

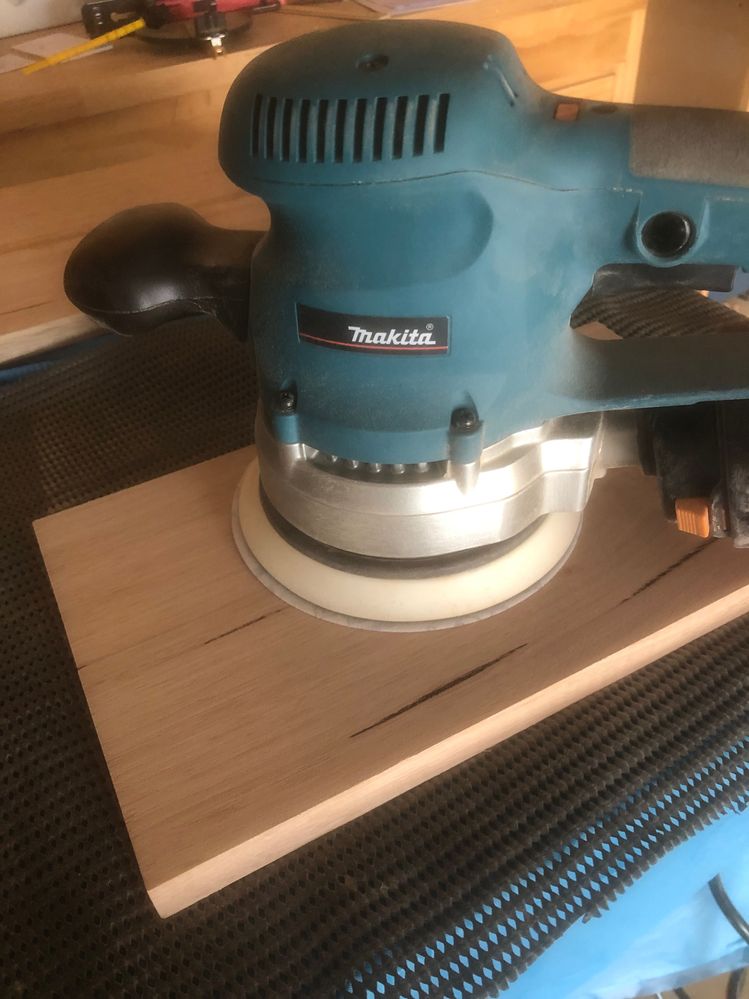

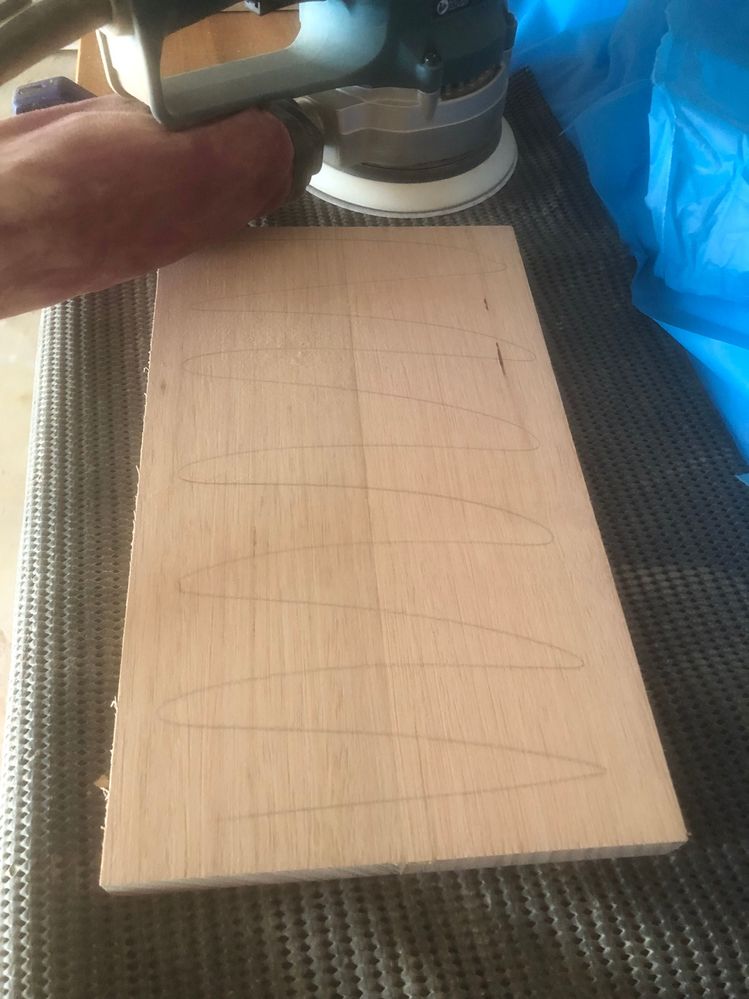

I cut the 90 x 19mm material, 10 to 15 mm longer than the finished length. This allows for discrepancies when gluing the timber together, glued and clamped. I allowed 24 hrs to dry, then sanded flat, using 120 and 240-grit sandpaper.
Step 2

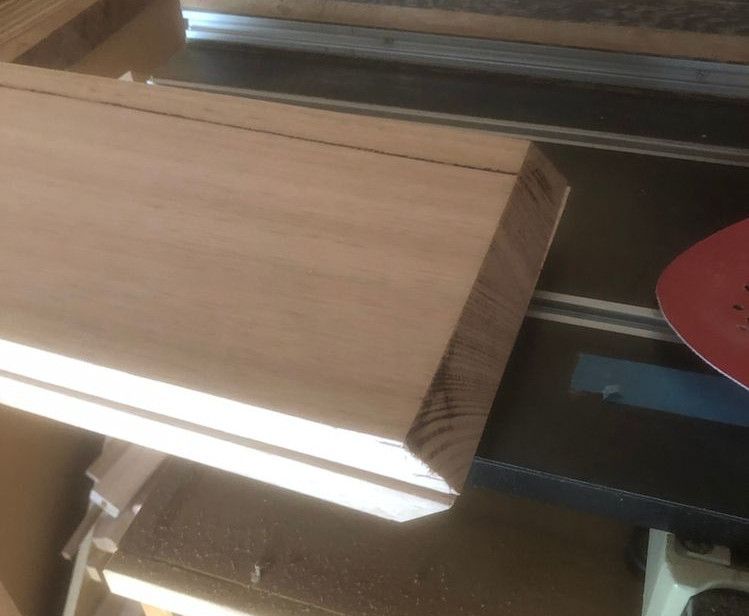

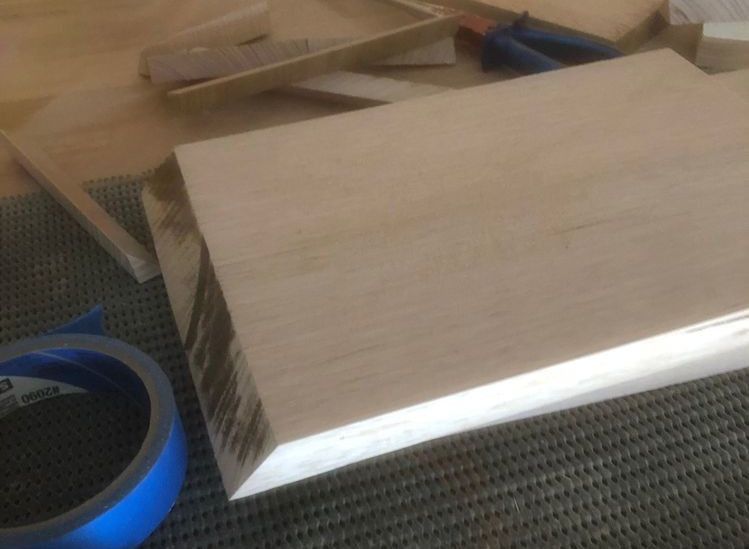

The timber was then cut at 45 degrees at each end. Cut to length using a mitre saw.
Step 3

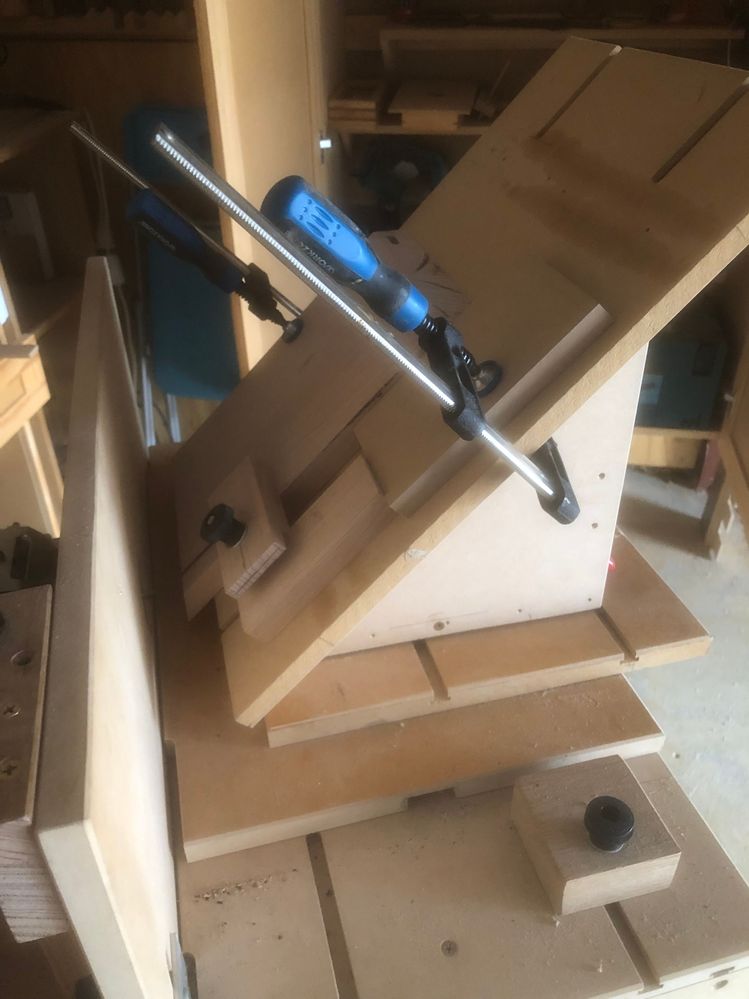

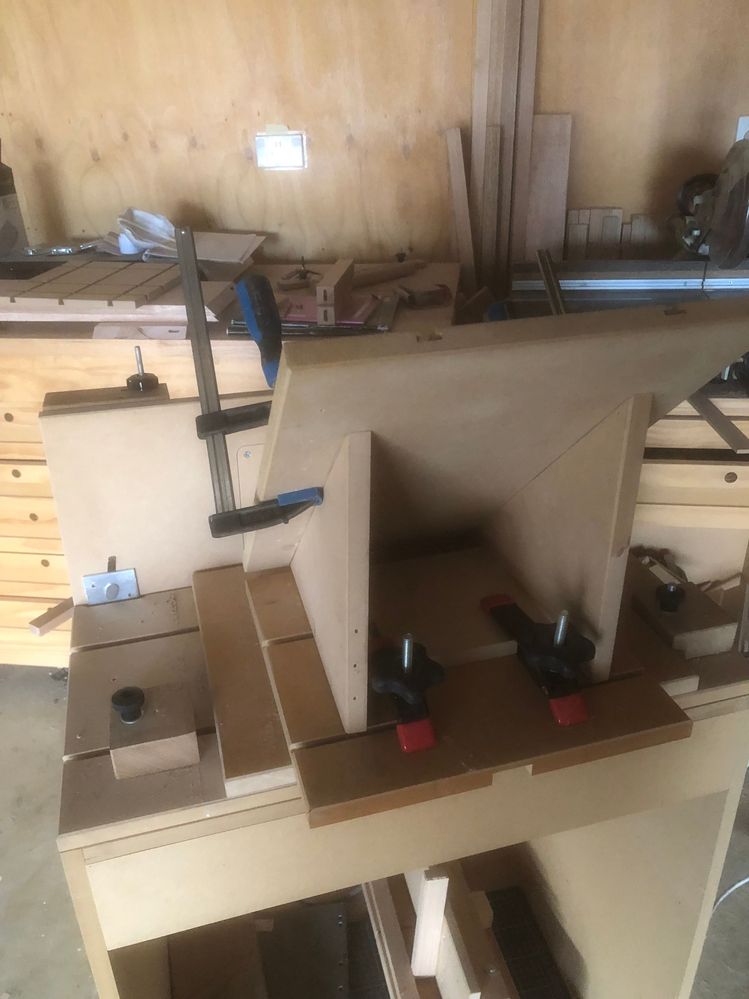

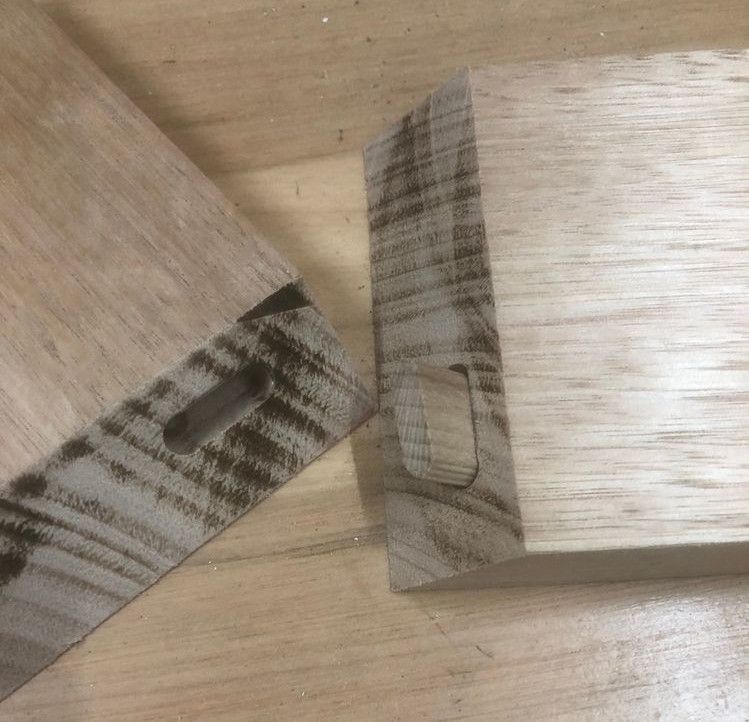

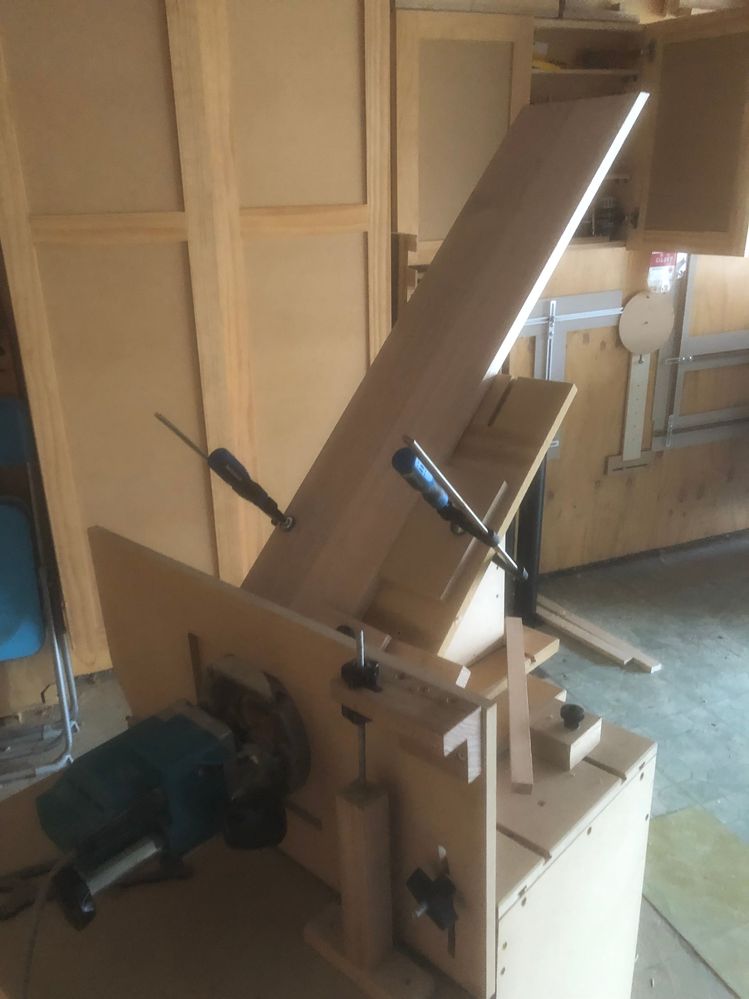

I routered the bevels for the dominos/biscuit joiners (jig made to suit).
Step 4

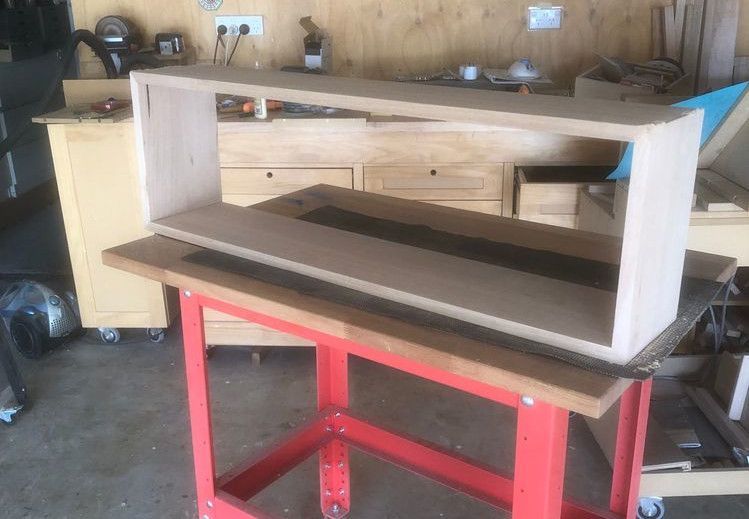

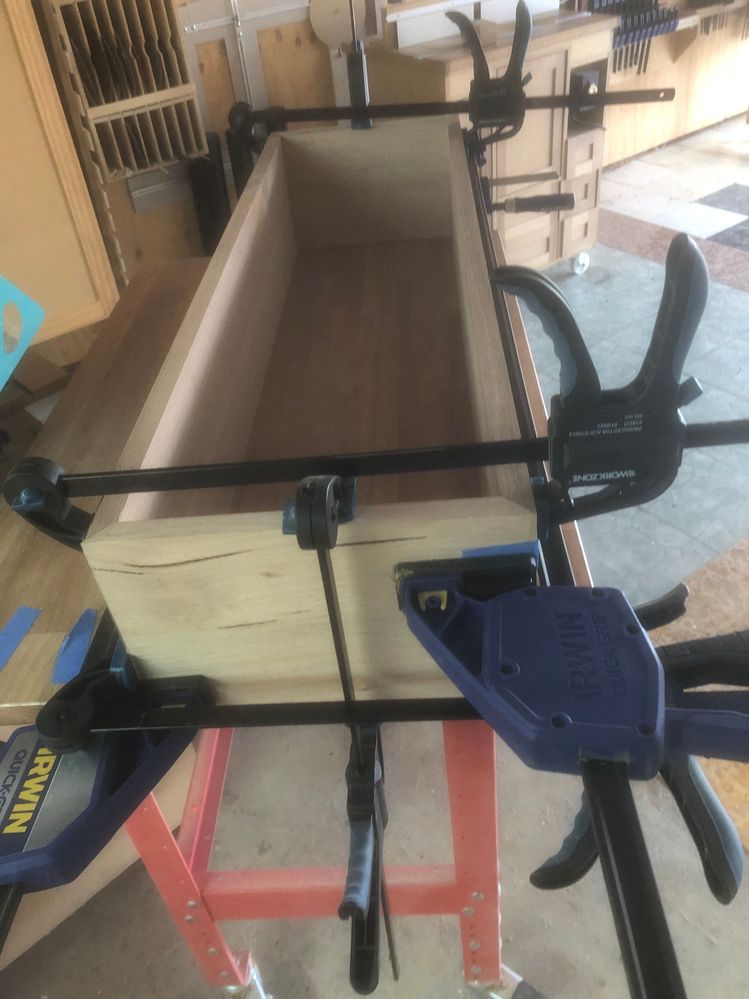

The bevelled timber with dominos are then glued and clamped together and allowed to dry overnight.
Step 5

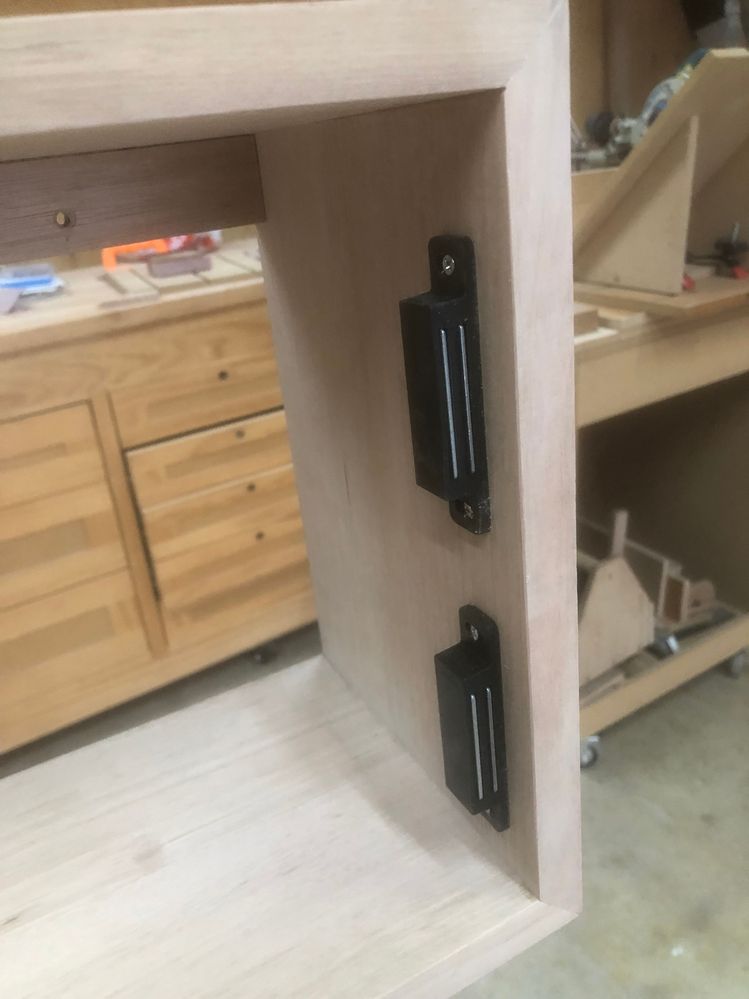

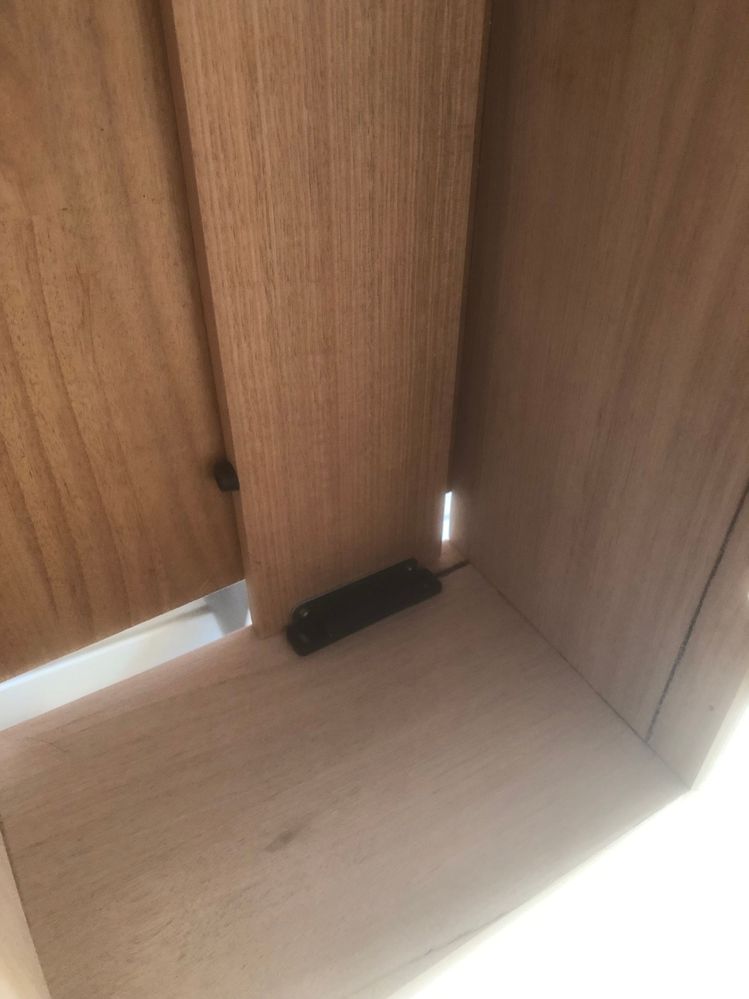

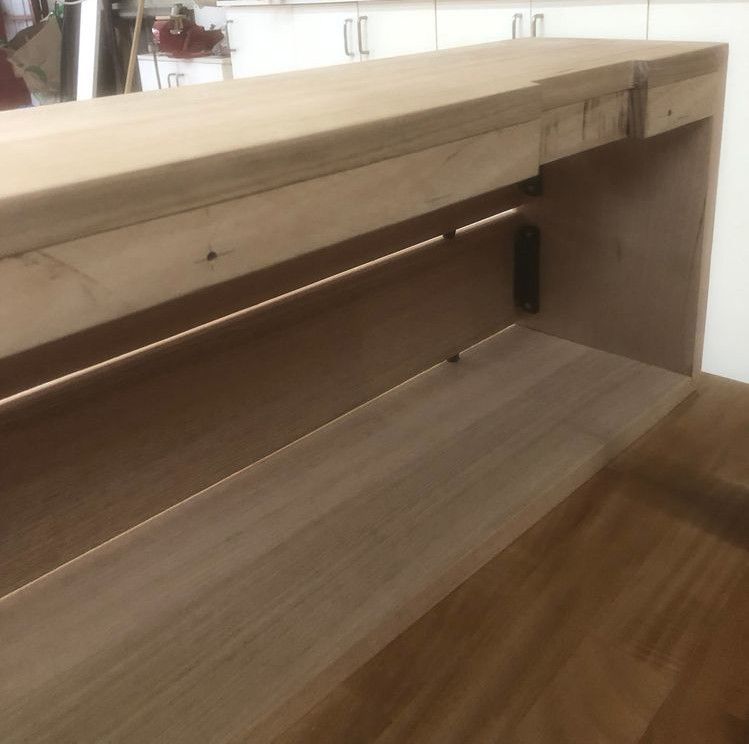

The front panels were cut to fit. Magnetic catches and bumpers were installed.
Step 6
Router a gap at the back of the shelf and mounting timber (20 x 50mm) to wall to allow cabling to connect to NBN and modem unit.
Install 20 x 50 mm timber using screws that were drilled. This was done from underneath to conceal them.
Step 7

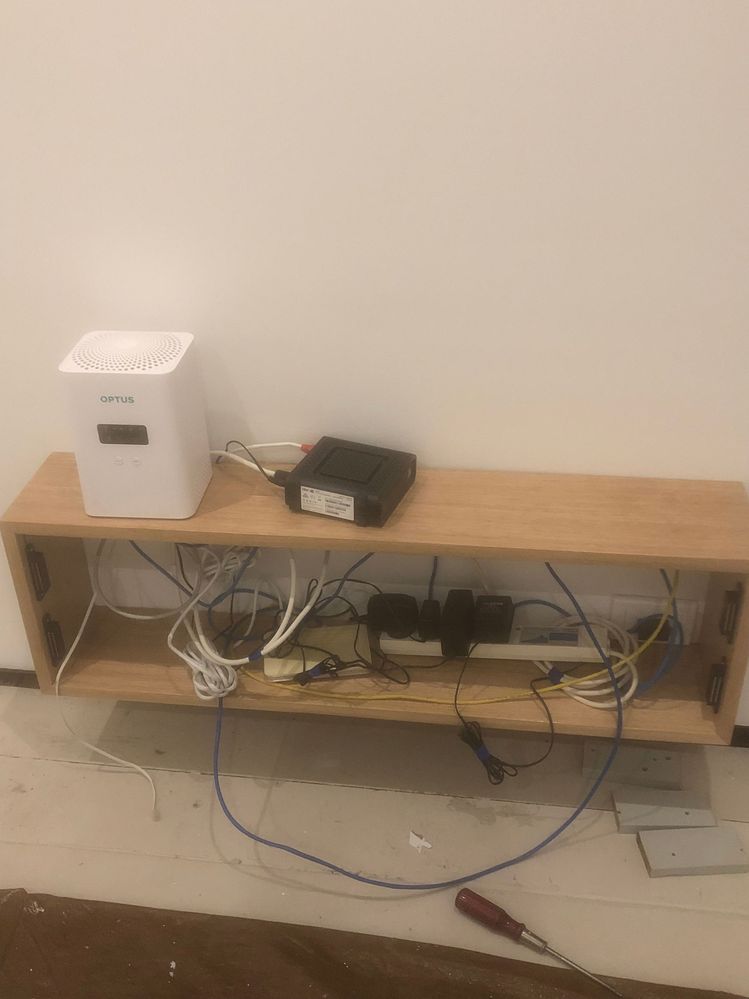

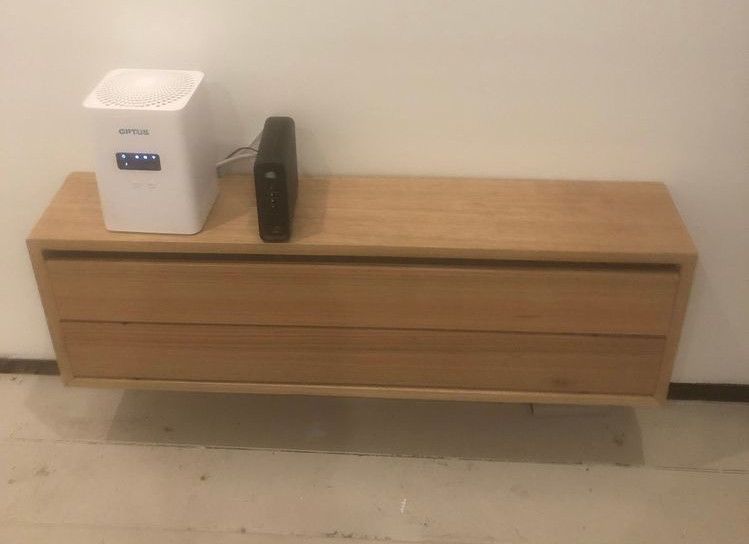

Remove all fittings, re-sand and paint. Mount unit to wall using wall mates and screws. Fit off the NBN, modem and cabling. Job done.
More inspiration for your project

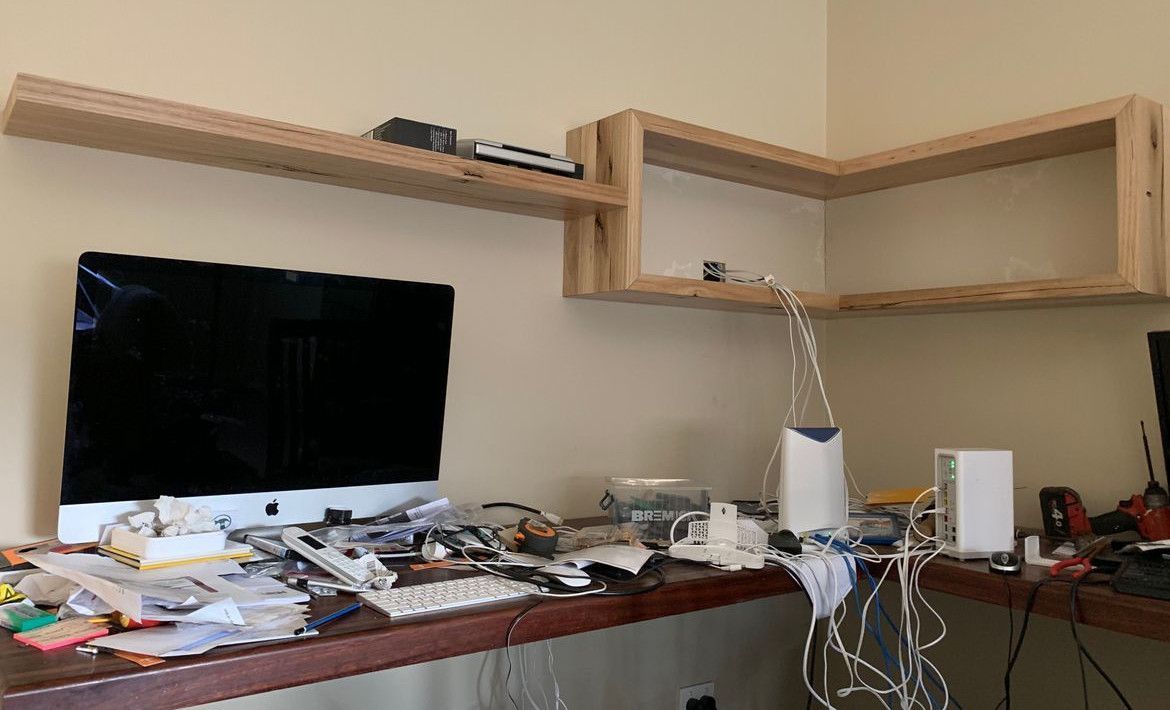

Workshop community member Starkers_17 built a floating shelf which hides unsightly cables and wires.
