A handy collapsible workbench made from formply and DAR Pine, and painted with black enamel paint.
The project
The amazing folding workbench for small workshops. A surprisingly easy project that is a great solution for small work spaces where a static workbench is not suitable as it takes up too much room.
Every D.I.Y. enthusiast needs a workbench and now there isn’t an excuse not to have one, especially if you are like me and only have a single-car garage.
Tools and materials
Materials used in the project:
- 1 x 17mm Black Specrite Formply 2400mm x 1200mm
- 3 x 2.4m 90mm x 42mm DAR Pine. Generally blemish/knot free, looks better and easily painted.
- 4 x 150mm strap hinges
- 8 x 70mm butt hinges. I used polished silver hinges but these black ones would look pretty cool.
- Cabin hook
- Quick grip mini bar clamp
- 4 x 75mm castors with brakes
- Undercoat
- Acrylic gloss black enamel paint
- Selleys wood glue
- Screws
- Sandpaper
- Spakfilla.
Tools used in the project:
Steps
Step 1
Cut the pieces and assemble the two end frames. It's pretty important to get these exactly the same as they need to fold neatly in together.
Step 2

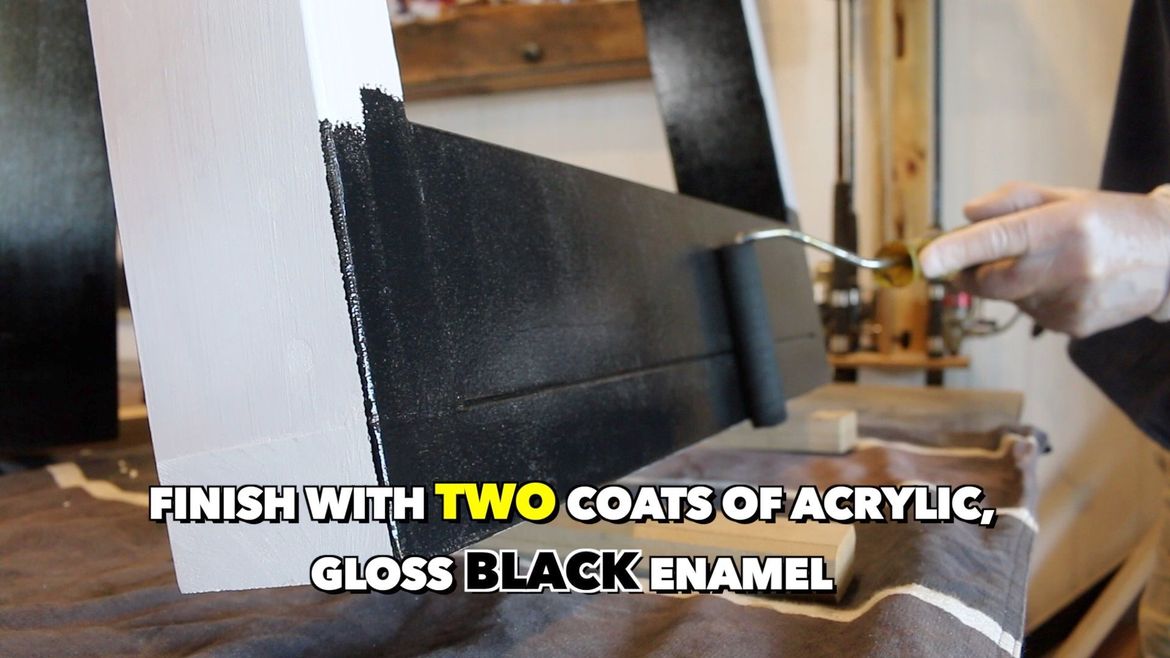

Patch all the holes and imperfections with Spakfilla. Apply an undercoat and then follow that up with two coats of gloss black enamel.
Step 3

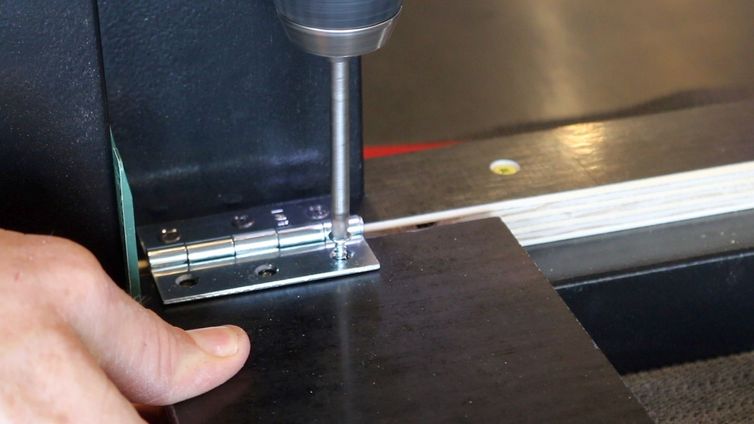

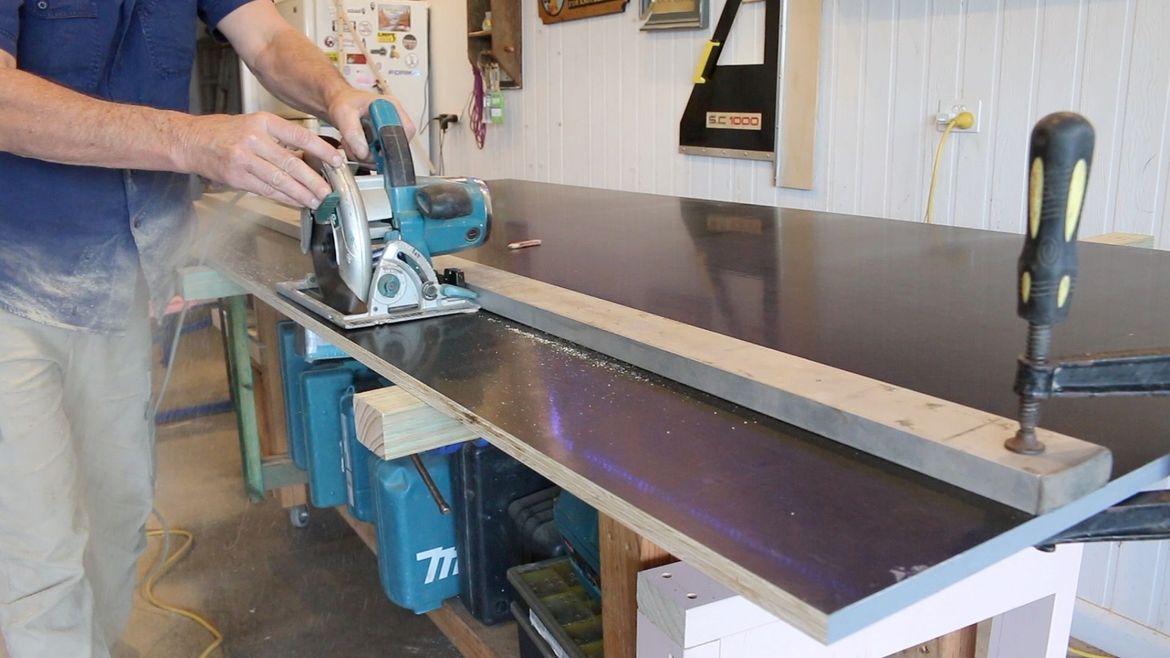

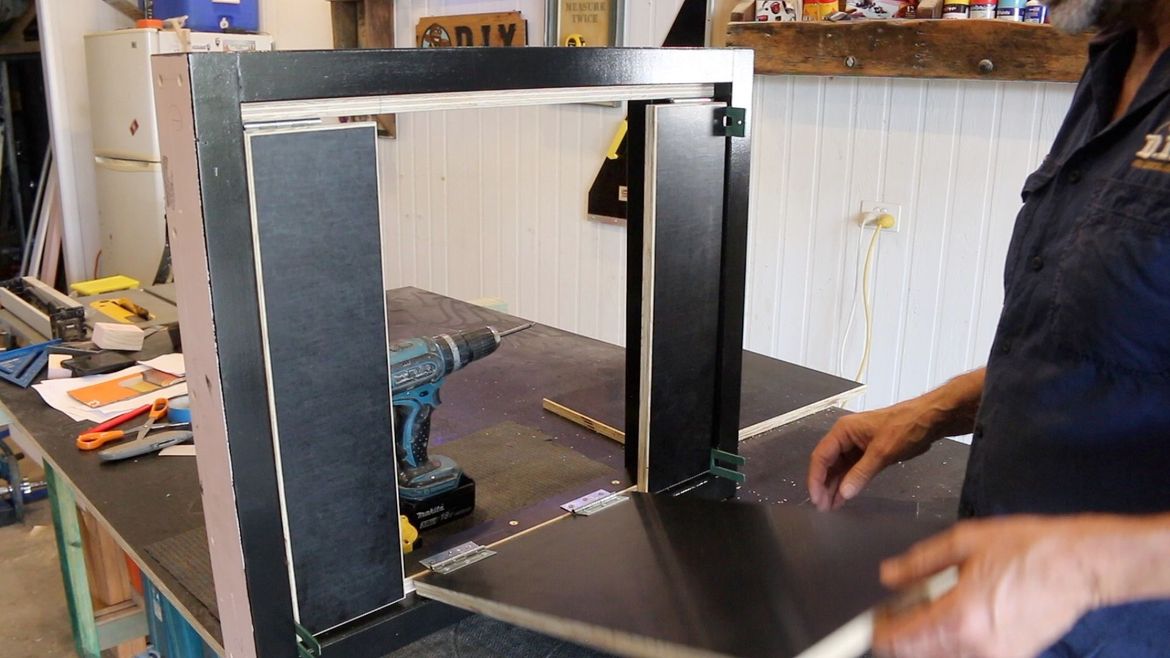

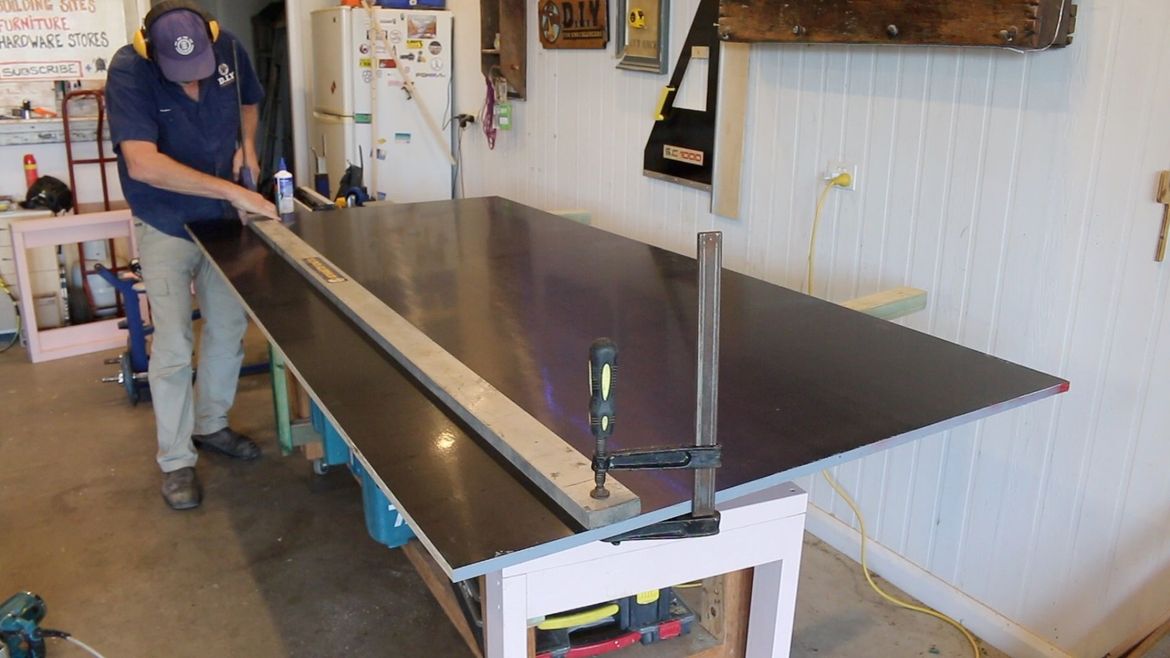

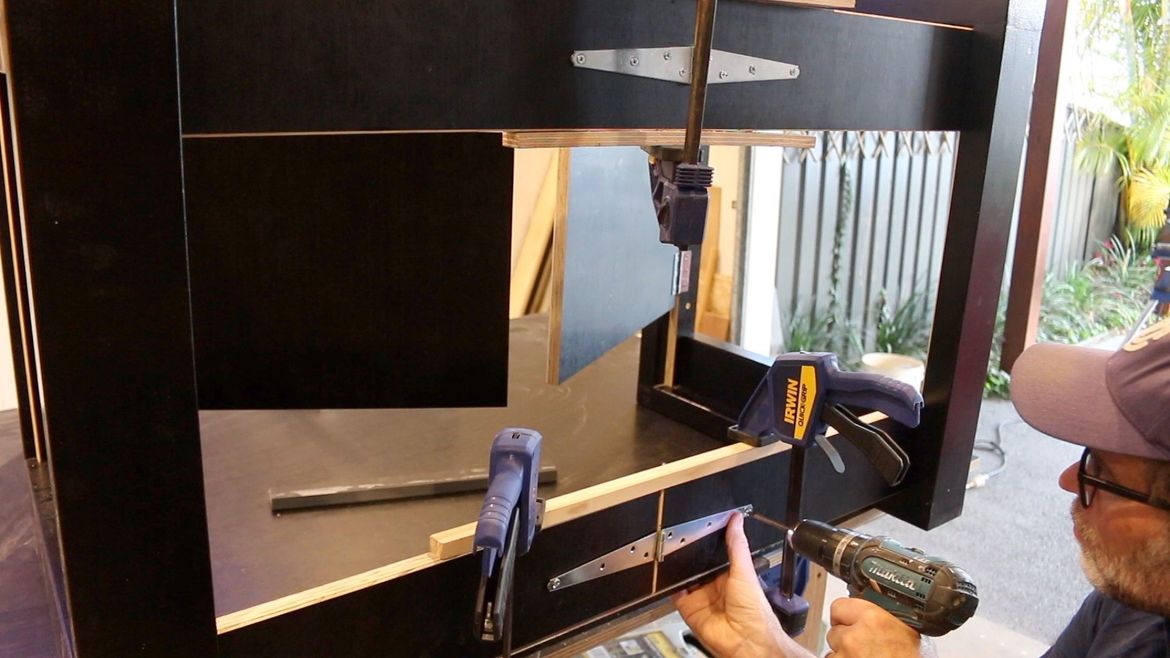

Cut the pieces of Formply for the folding arms. A great way to get these nice and straight is to clamp a straight edge to the formply and run your saw up against it. Of course, if you have a table saw you can always use that. Once the pieces have been cut it's time to assemble and connect to the two end frames.
Step 4

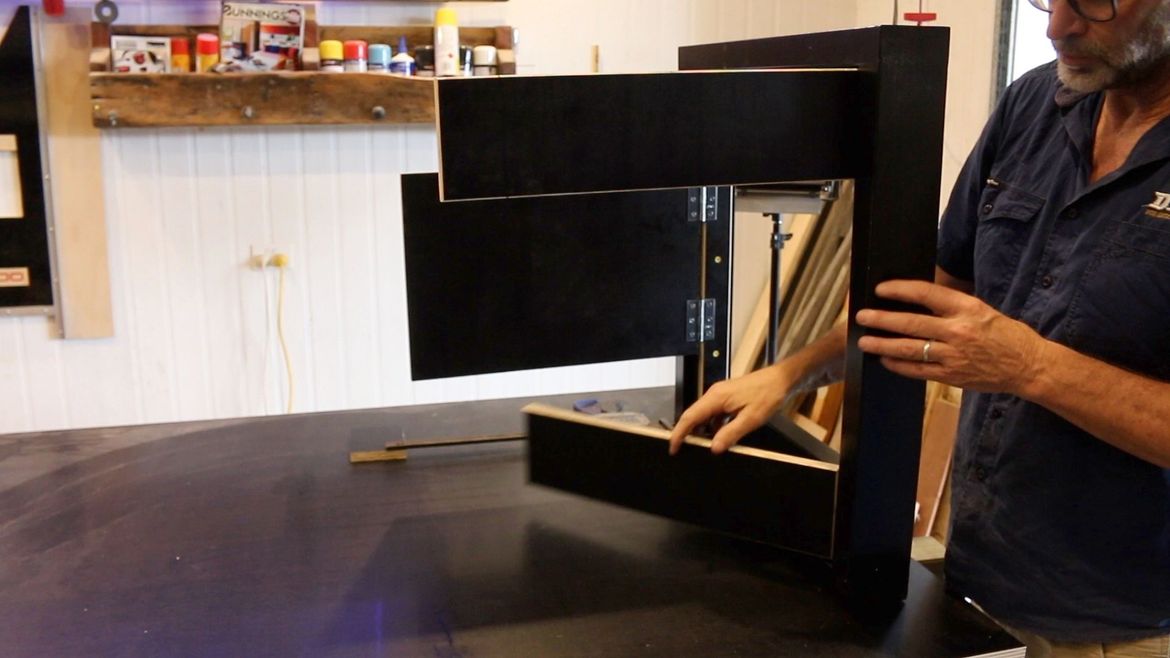

Give the folding arms a test. As you can tell from my facial expressions l was pretty surprised by how well it all folded together.
Step 5

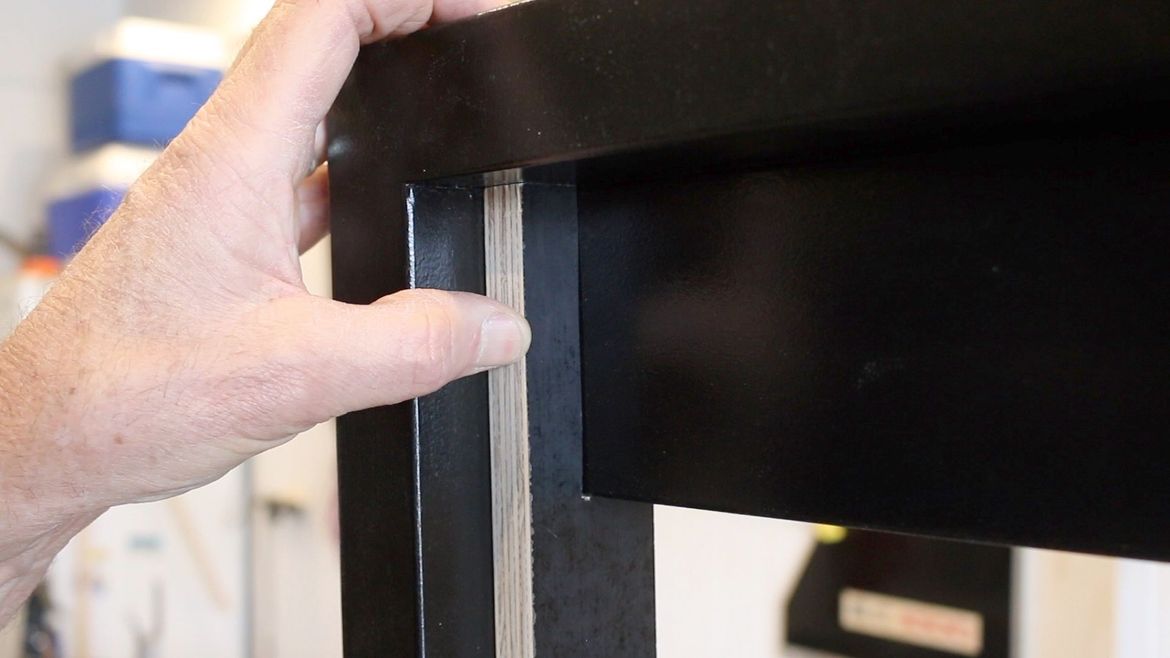

With the frame now complete it's time to cut the formply for the top. I've added some thickness to the edge of the bench top by screwing a strip of formply to the underside of the bench top.
Step 6

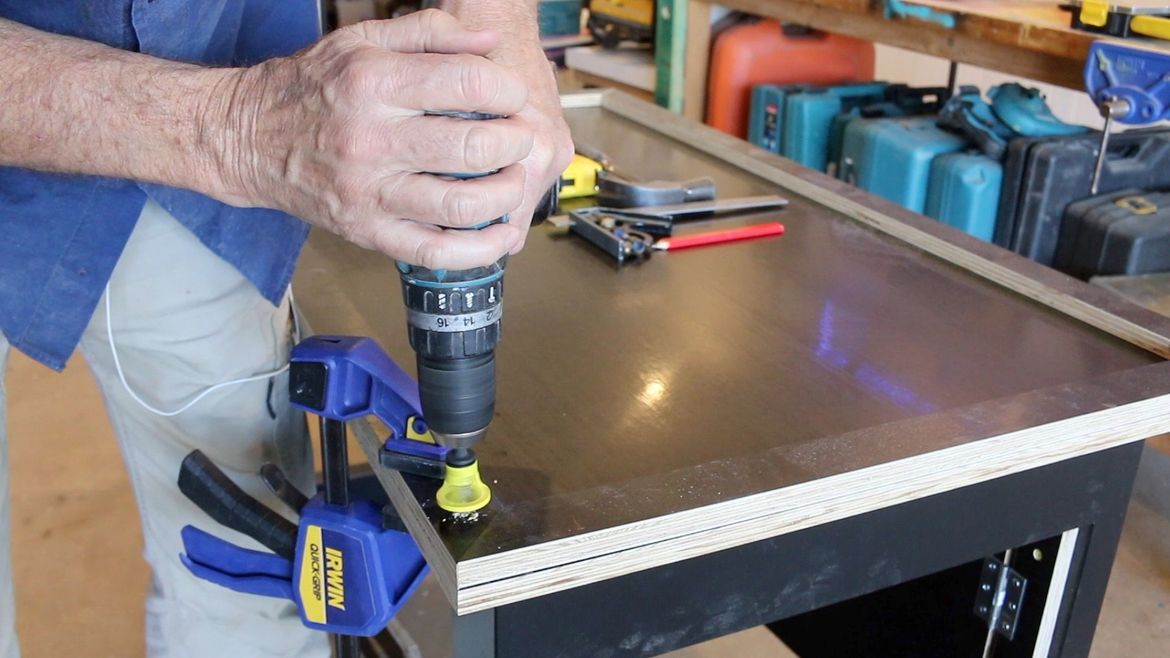

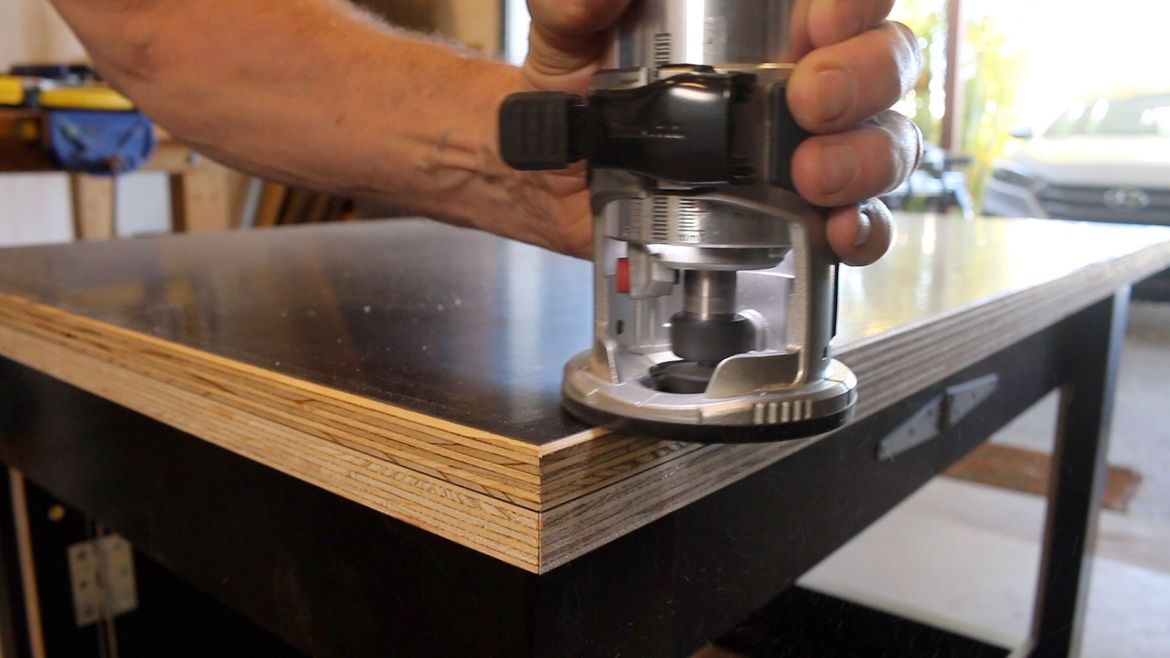

With a router or even some sandpaper, chamfer the edges of the benchtop to get rid of the sharp edge.
Step 7

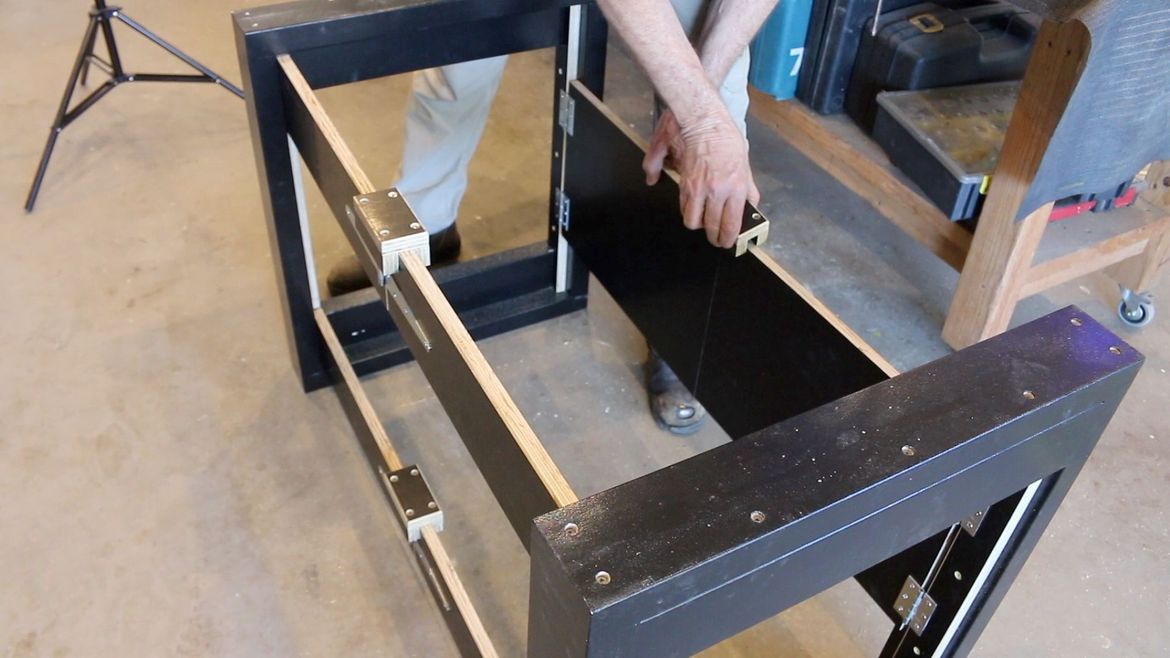

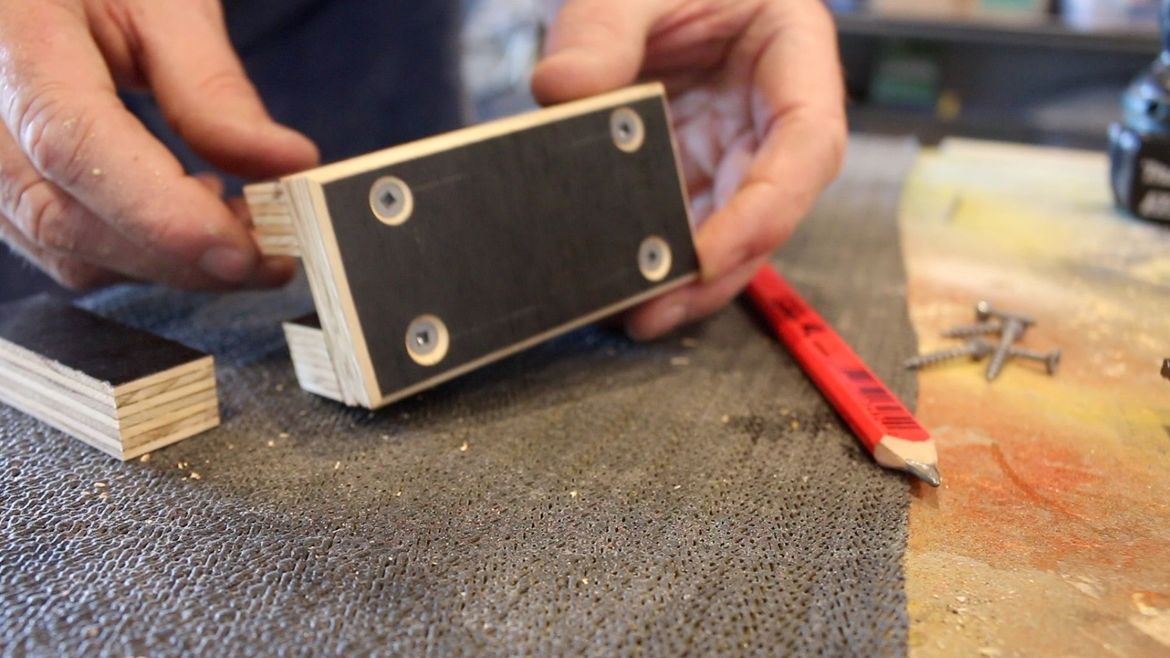

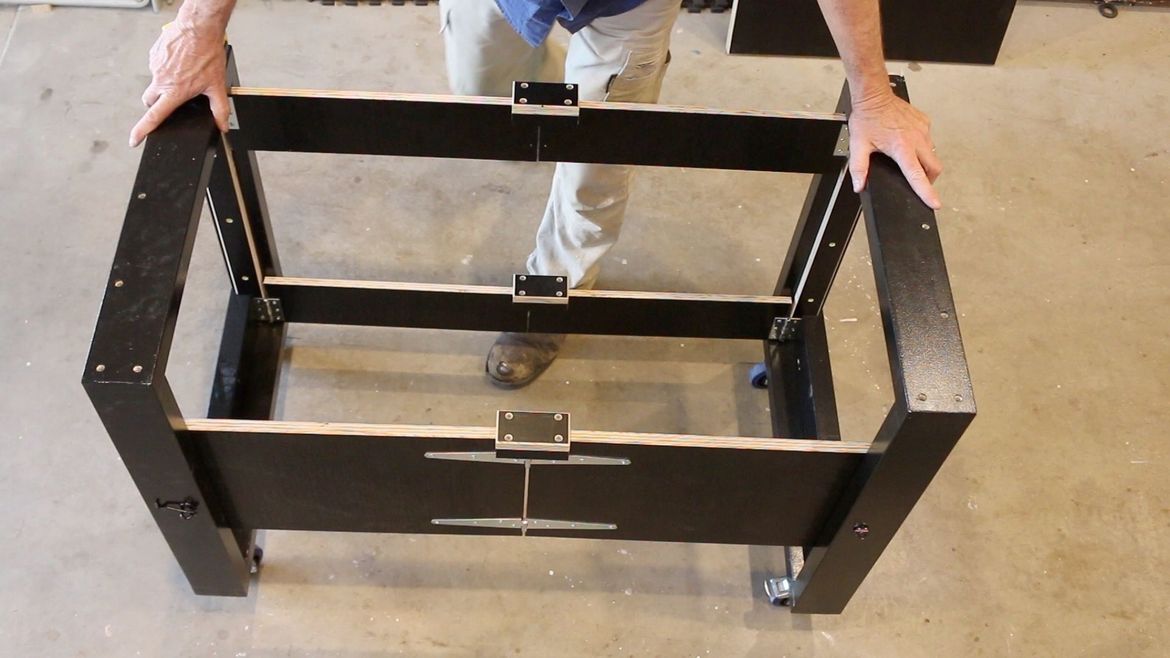

Make up the stabiliser blocks for the folding arms. These prevent the arms from folding in and keep the arms straight.
Step 8

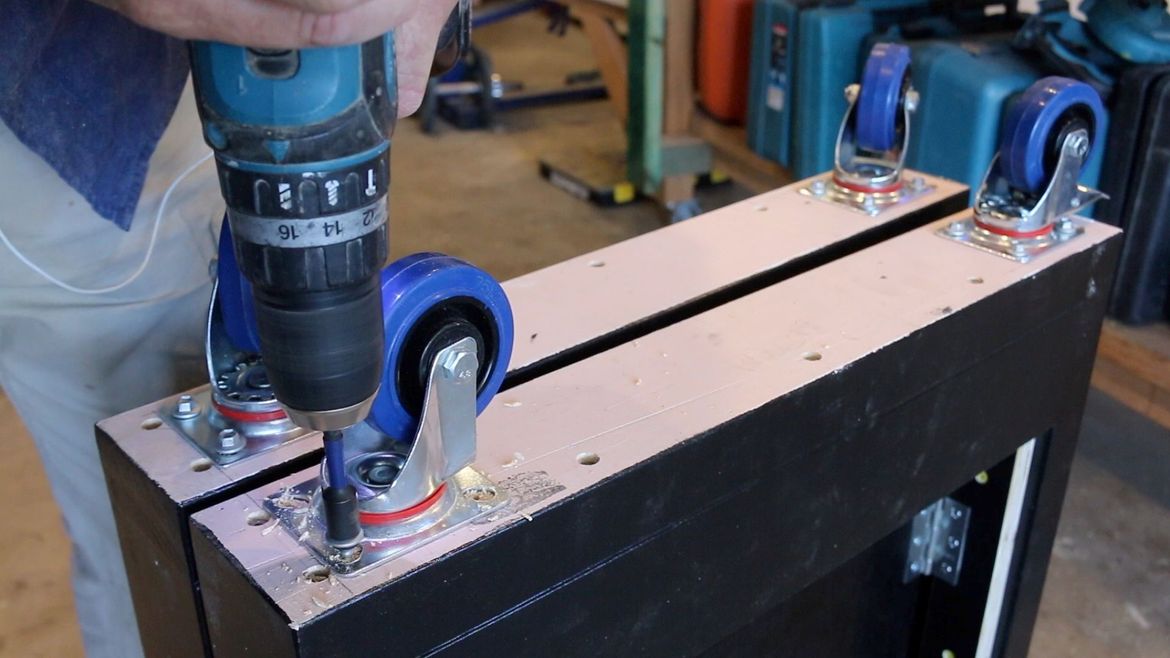

Attach the wheels to the underside of the end frames. One word of advice is to offset the wheels. As you can see in the photo, l originally didn't do that causing the wheels to occasionally clash when when wheeling it away which was a little annoying. I have since offset the wheels and it now works a lot better.
Step 9

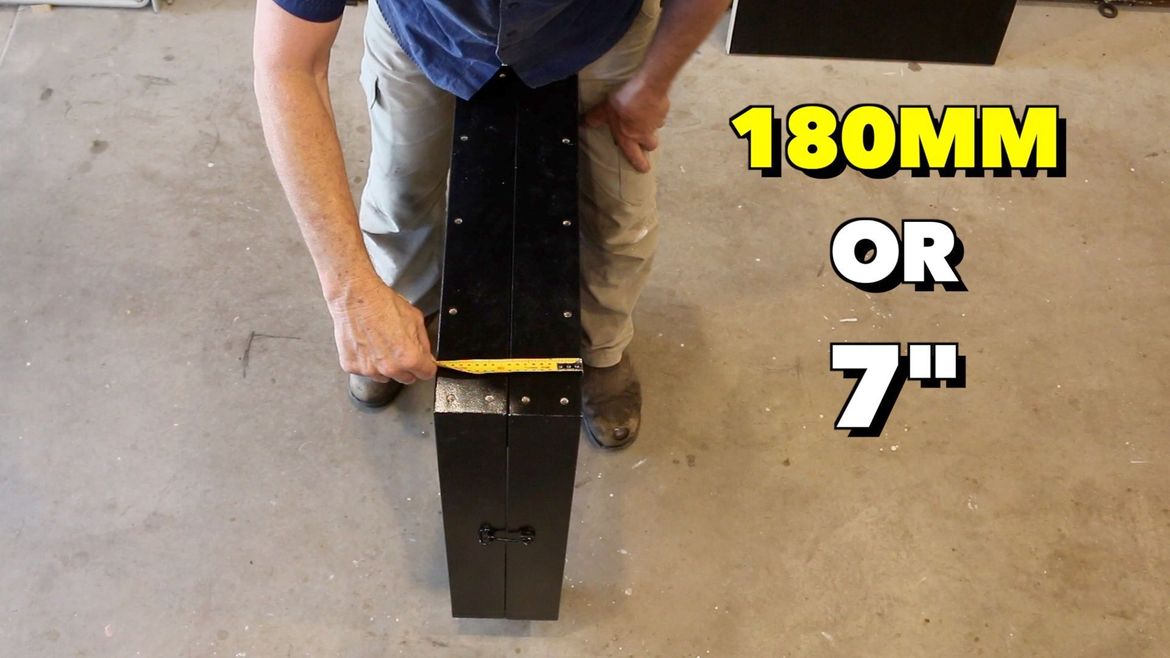

As you can see it folds up to a very slim and tidy 180mm which is small enough to even store inside a cupboard when not in use.
Step 10

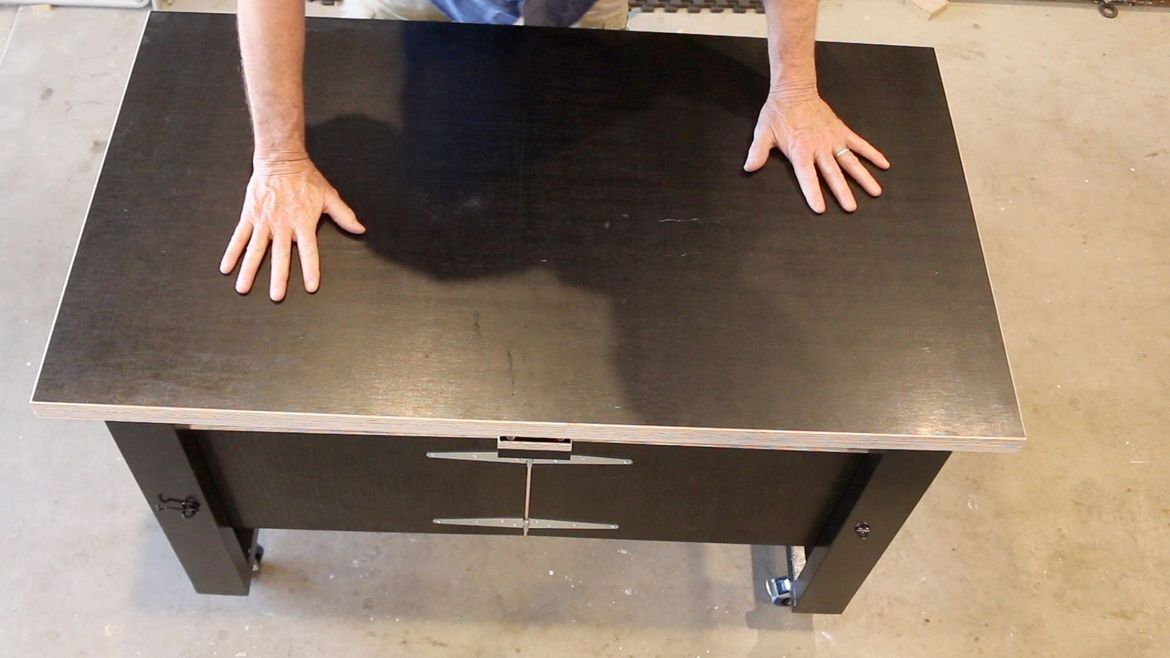

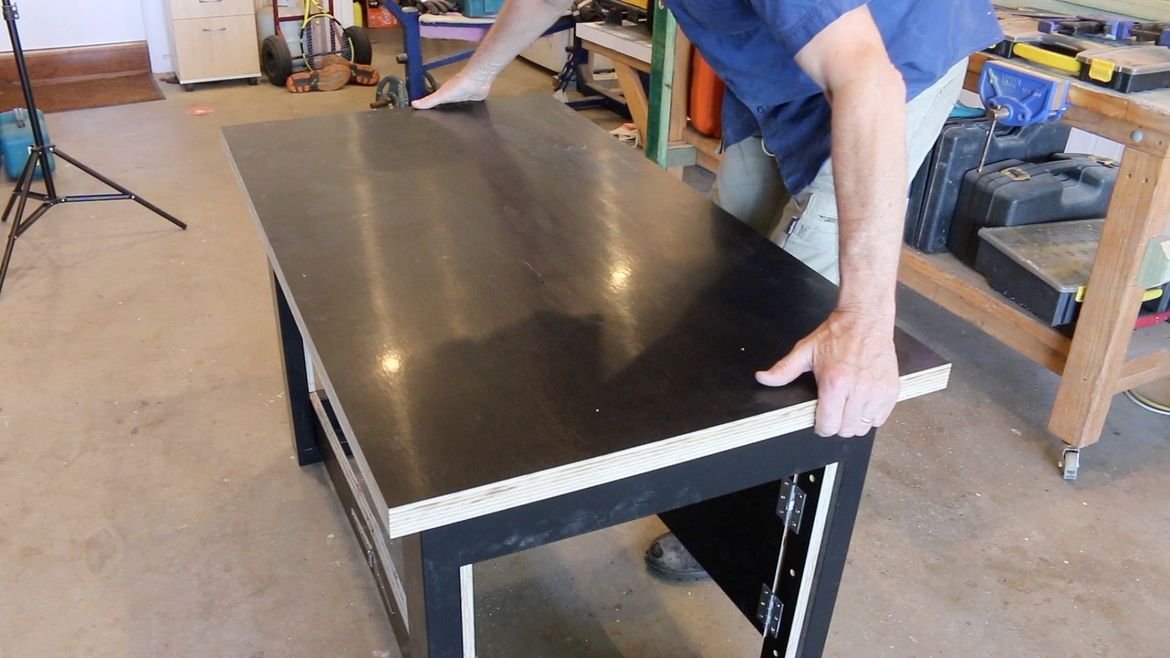

Here is the finished product.
It works really well and is surprisingly easy to make. A lot of us have very limited workspaces so it's perfect for that. It's also a good thing to have if you are ever entertaining and need an extra table.
Bunnings also seems to have a plentiful supply of the black formply which is also good. I love the look of the stuff and it's mostly straight which is a bonus.
Here's an easy to follow step-by-step video tutorial I made.
More inspiration for your workbench project

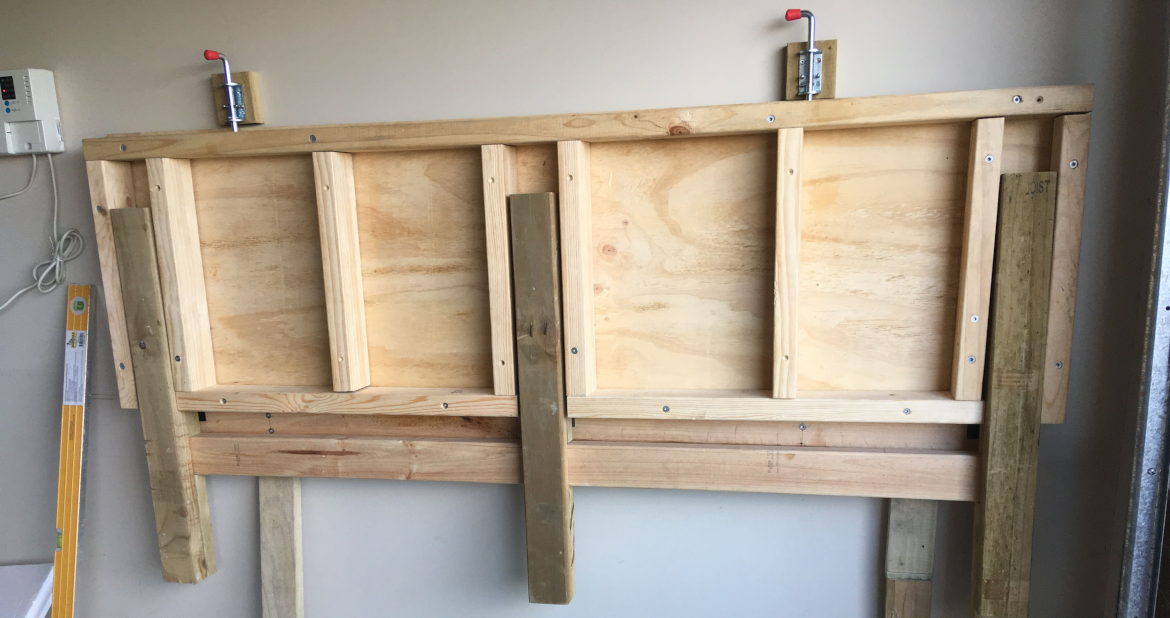

Workshop member pats6182 also made a folding workbench which gives more room in the garage.
