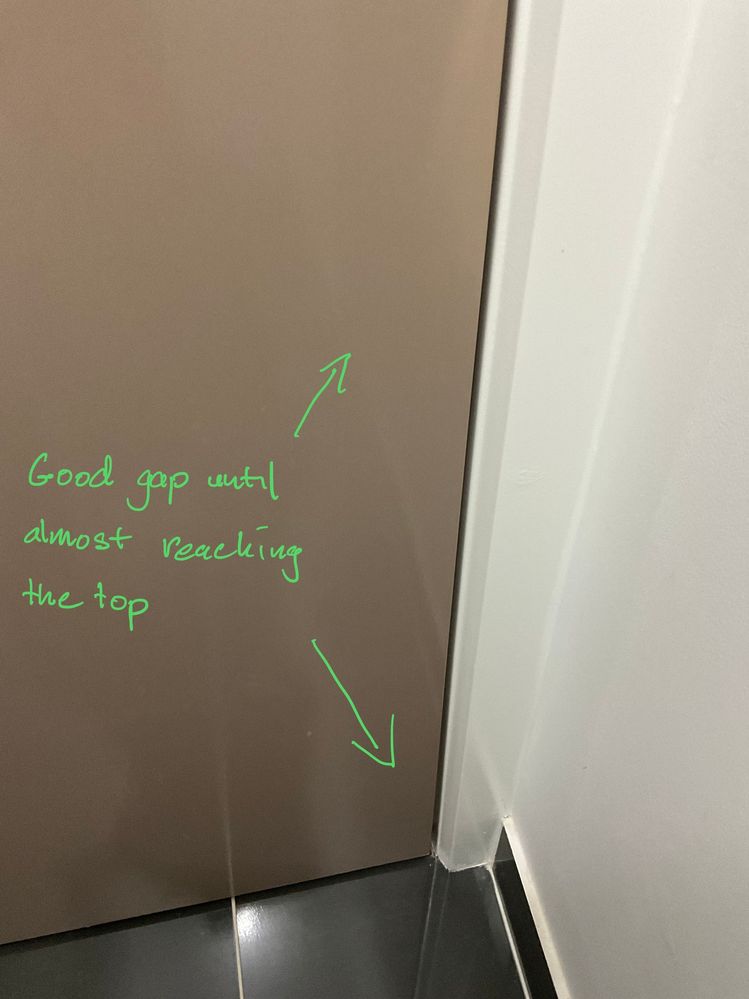

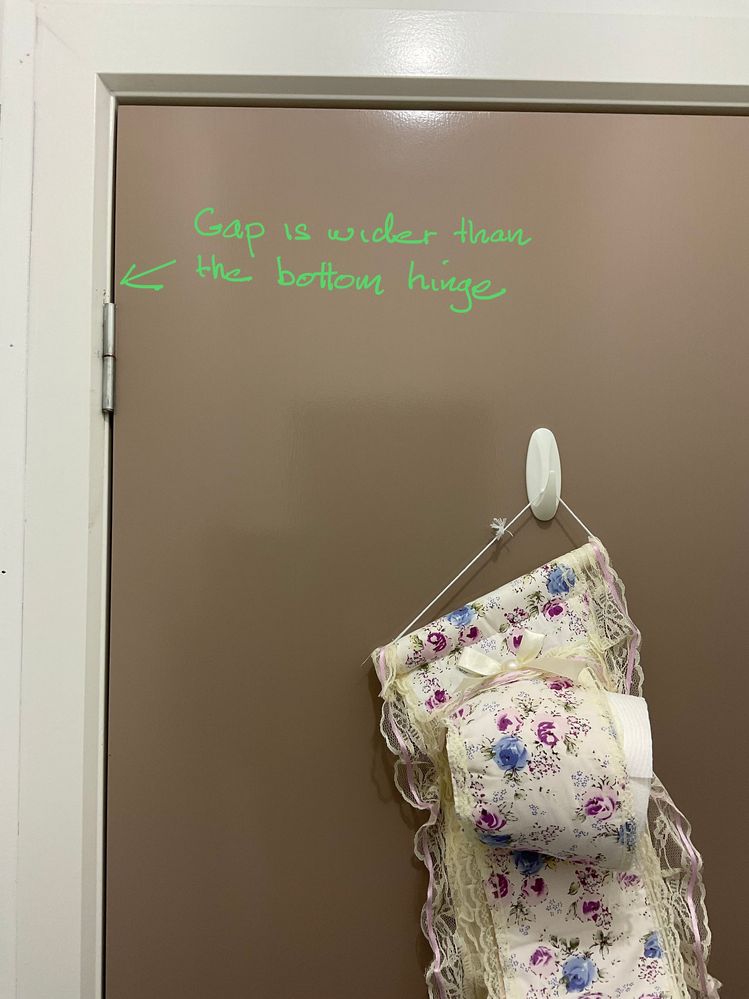

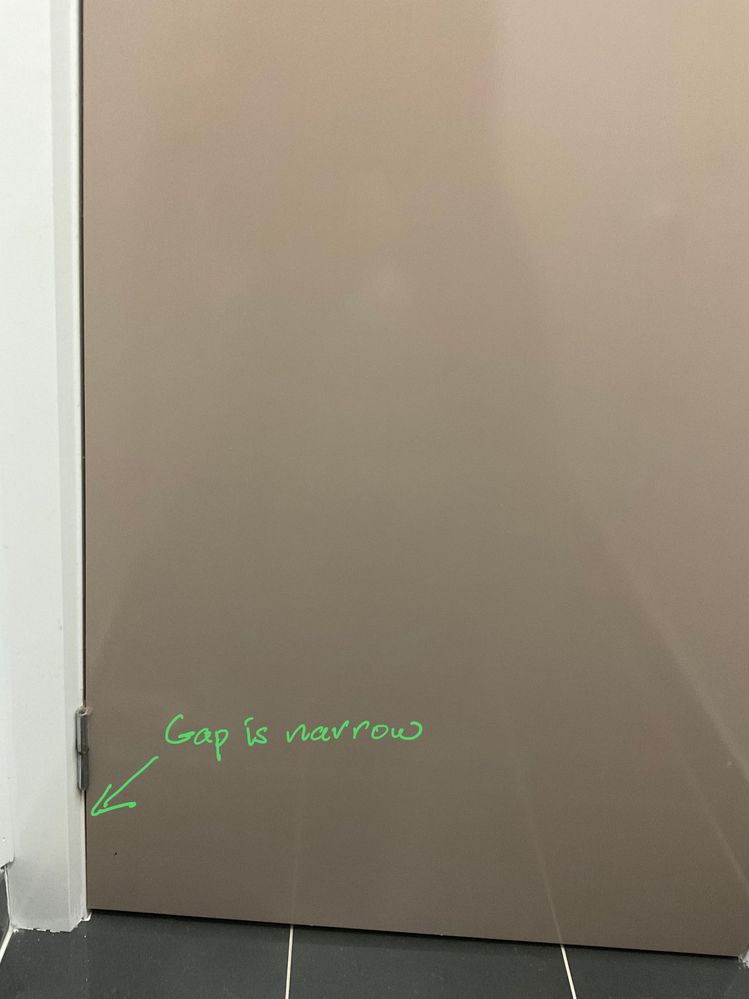

The top corner of my door to the loo is just a hair’s width away from scraping the jamb. The likely cause is the top hinge which has a wider gap than the bottom hinge. I checked the screws and they are all tight. The hinges are of a different type from the other doors and the pin goes in from the bottom instead of from the top.
How else can I reduce the gap at the top hinge so that the opposite end of the door will be pulled away from the jamb?
Thanks.
Hi @Stevelkt,
Your door is very close to the frame all around there, but some fine adjustment could even it out. My first question would be, is this causing any issues, and does it need to be fixed? Apart from the aesthetics, if the door is functioning correctly, then it might be worth leaving it alone. However, if you were to slightly shim out the bottom hinge or rebate the top hinge further into the frame, it would correct the issue.
I would be undoing the bottom hinge from the frame whilst supporting the door, cutting a piece of cardboard to the same dimensions as the hinge plate and then reinstalling the hinge with the cardboard as a spacer. This will open the gap on the bottom left, close the gap slightly on the bottom right and, due to the door being effectively pushed to the right at the bottom, will open the gap on the top right and close it slightly on the top left. This can be done with one of two layers of cardboard.
If these are timber frames, the same can be done by taking a chisel and removing some material from where the top hinge affixes, though this is a little more involved than the cardboard spacer trick. Using cardboard is something that tradespeople will do if called to solve this situation. A combination of these two methods can also be used.
If you're going to use a chisel to remove timber from the frame, wear appropriate PPE, including gloves and safety glasses and never place your hand in front of the chisel blade when cutting.
Please let me know if you have any questions.
Mitchell
No need to apologise @Stevelkt; we're here to assist.
It looks like you need at least a few millimetres for some breathing room, so I'd be using a cardboard box that products come in. There's plenty kept at the exit of your nearest Bunnings store. It will compress down once you do the screws up, providing more thickness than a tissue box.
Supporting the door with a wedge or jamming something else of an appropriate size under it would work. A wooden spoon would likely be my go-to, as I don't have a wedge on hand. It's just to stop the door from dropping down and putting unwanted stress on the top hinge. The only dumb question is the one you don't ask.
Mitchell
